Allen-Bradley CompactLogix 5380 User Manual

Rockwell Automation Publication 1756-RM100F-EN-P - October 2018 23
Replacement Considerations with ControlLogix 5580 and GuardLogix 5580 Systems Chapter 2

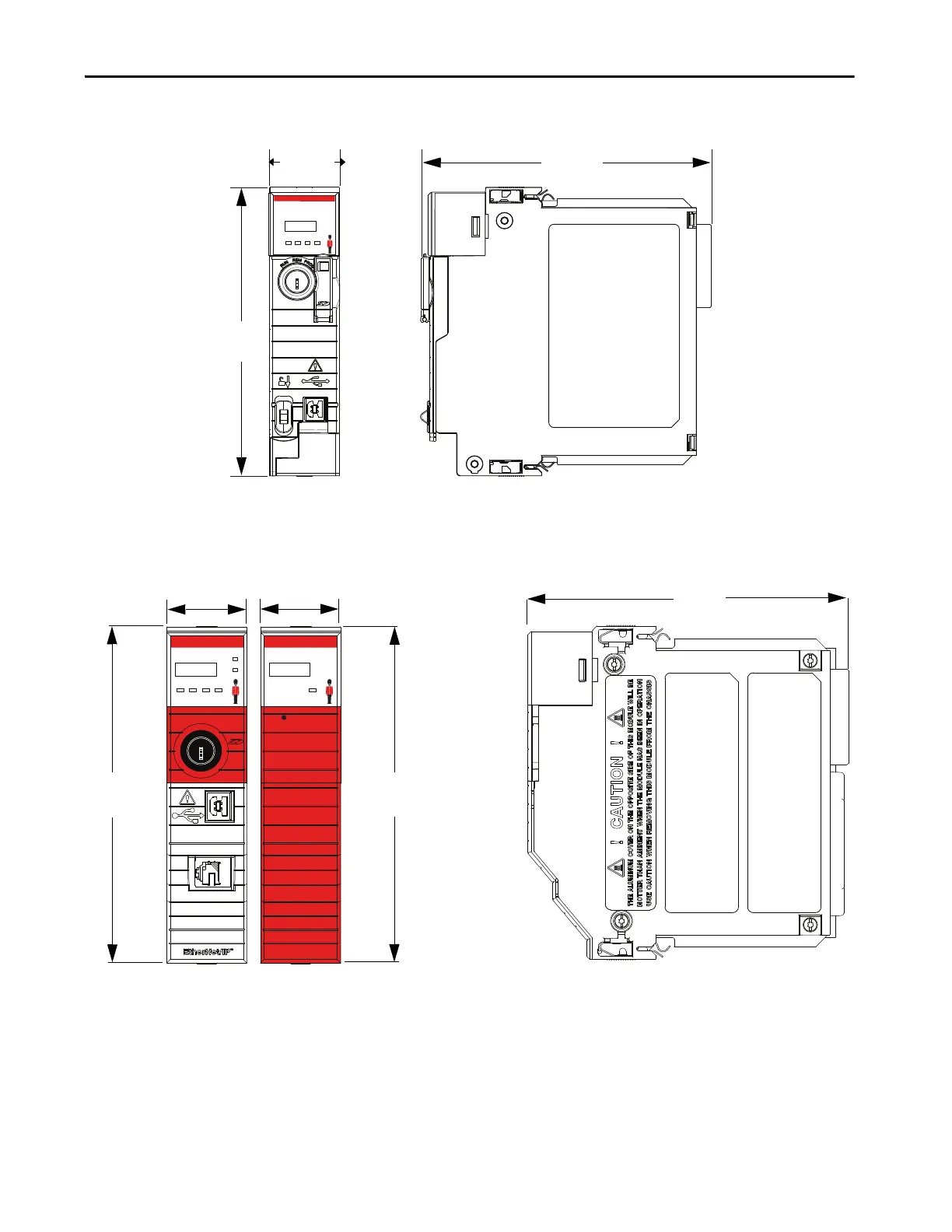

GuardLogix 5570 Dimensions
GuardLogix 5580 Dimensions
RUN FORCE SD OK
Logix5572S™
145.20 mm
(5.72 in.)
142.94 mm
(5.63 in.)
34.55 mm
(1.36 in.)
139.6 mm
(5.50 in.)
34.55 mm
(1.360 in.)
145.2 mm
(5.717 in.)
Front view: GuardLogix 5580 Controller, GuardLogix 5580 Safety Partner
Side view: GuardLogix 5580 Controller, GuardLogix 5580 Safety Partner
34.55 mm
(1.360 in.)
145.2 mm
(5.717 in.)
NET
LINK
RUN
REM
RUN
PROG
FORCE SD OK
Logix5584ES™
OK
Logix55L8SP™
32714-M

Allen-Bradley CompactLogix 5380 Specifications

General

Brand	Allen-Bradley
Model	CompactLogix 5380
Category	Controller
Language	English
