52 Rockwell Automation Publication 1756-RM100F-EN-P - October 2018
Chapter 3 Replacement Considerations with CompactLogix and Compact GuardLogix Systems

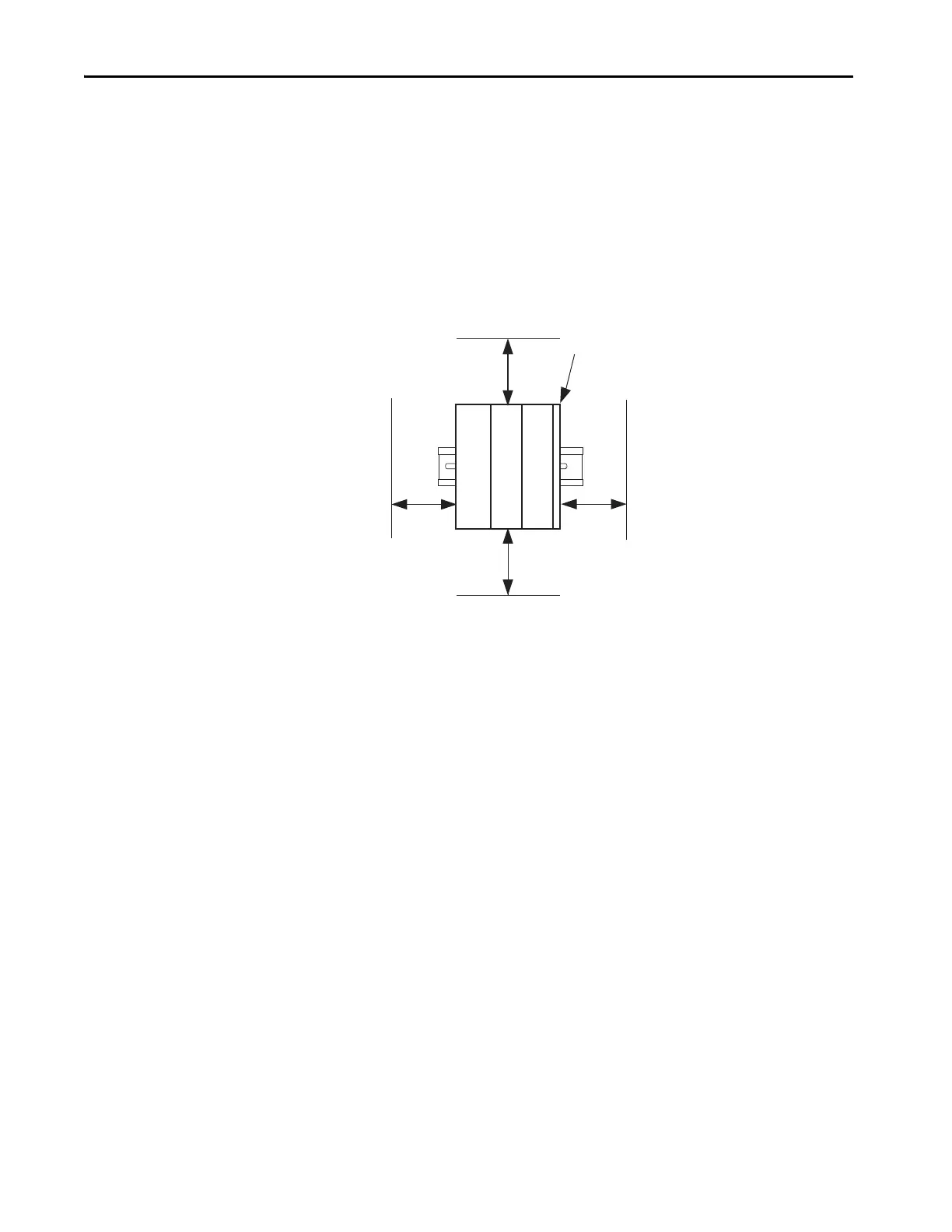

Compact GuardLogix 5380 Spacing
Maintain spacing from enclosure walls, wireways, and adjacent equipment.
The minimum distance on all sides of the Compact GuardLogix 5380 system
varies based on the operating temperature, as follows:
• 50.80 mm (2.00 in.) at 50 °C (131 °F)
• 101.60 mm (4.00 in.) at 55 °C (122 °F)
• 152.40 mm (6.00 in.) at 60 °C (140 °F)
Top
Bottom
SideSide
Compact GuardLogix
5380 Controller
Compact 5000 I/O
End Cap
Compact 5000 I/O
To Next Page
