Appendix F Using PanelView 800 Terminals with CompactLogix 5370 Controllers
Add a CompactLogix 5370
Controller
To add a CompactLogix 5370 controller to your application, do the following:

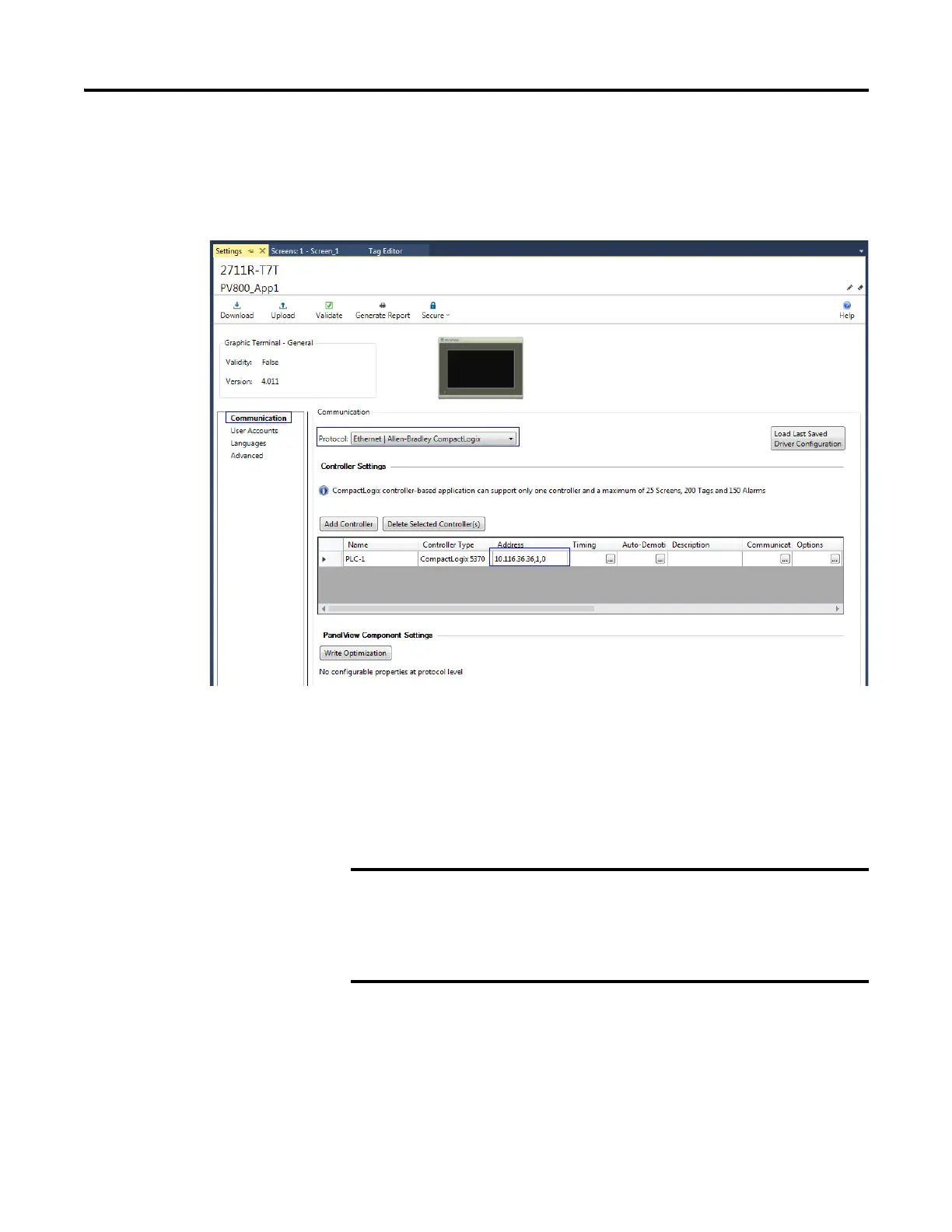

1. Click on the Settings tab for your PanelView 800 terminal in Connected
Components Workbench.
2. Click the Communication item in the menu list.
3. Click on the Protocol drop-down list and select "Ethernet | Allen-Bradley
CompactLogix".
4. Under Controller Settings, enter the IP address of the controller into the
Address field.
When you enter the IP address for a CompactLogix 5370
controller, you must append path information “1,0” to the end.
For example, if the IP address of the controller is 192.168.0.1,
you should enter 192.168.0.1,1,0 into the Address field.
