Allen-Bradley PowerFlex400 User Manual

B-12 Accessories and Dimensions

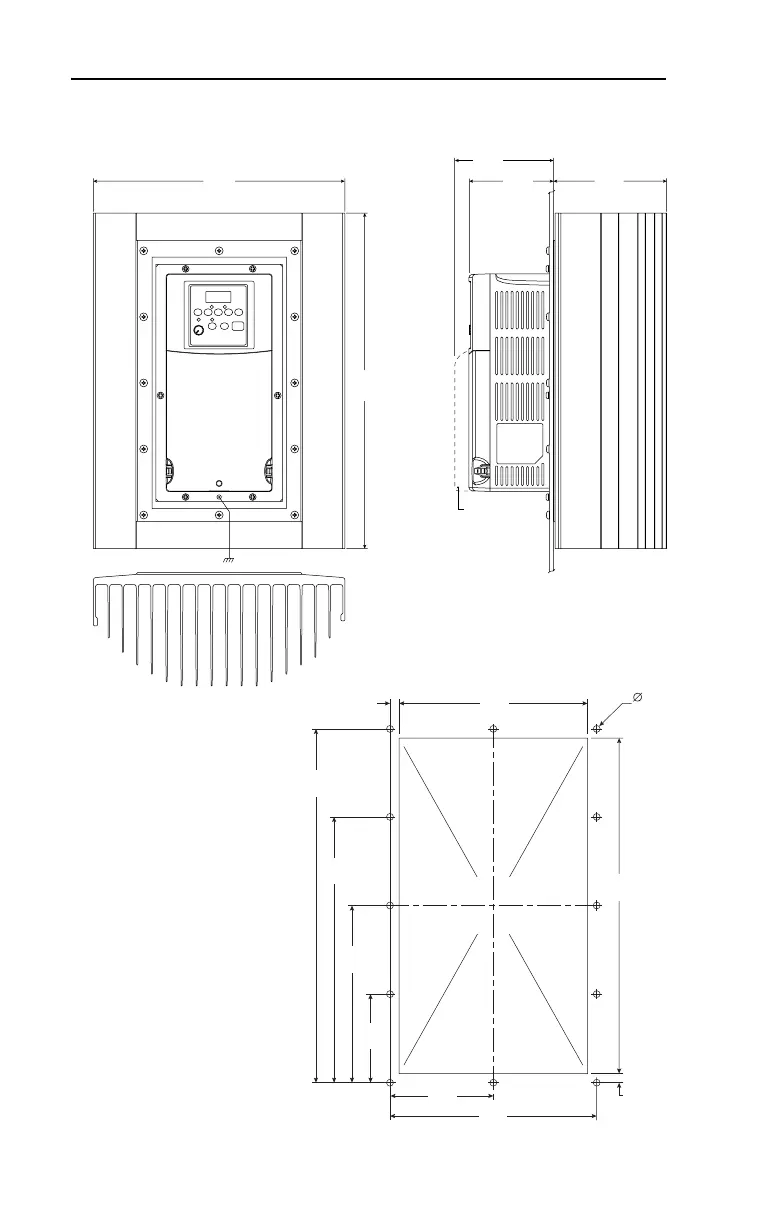

Figure B.5 PowerFlex 400 Frame C Flange Mount Drive -
Dimensions are in millimeters and (inches)
138.2
(5.44)
105.8
(4.17)
325
(12.8)
300
(11.81)
130.3
(5.13)
22B-CCC
Cutout Dimensions
291.5
(11.48)
164
(6.46)
180
(7.09)
90
(3.54)
307.5
(12.11)
230.6
(9.08)
153.8
(6.06)
76.9
(3.03)
8
(0.31)
8
(0.31)
5.3
(0.21)
