Allen-Bradley PowerFlex400 User Manual

Metasys N2 F-7
Writing Parameter Values
These outputs are written each time the User OUTx point is written from
the network.
The Param# for OUTx’s default to commonly accessed parameters and
can be changed if desired. A value of “0” in the Param# for OUTx field
disables the writing of data for that specific point.

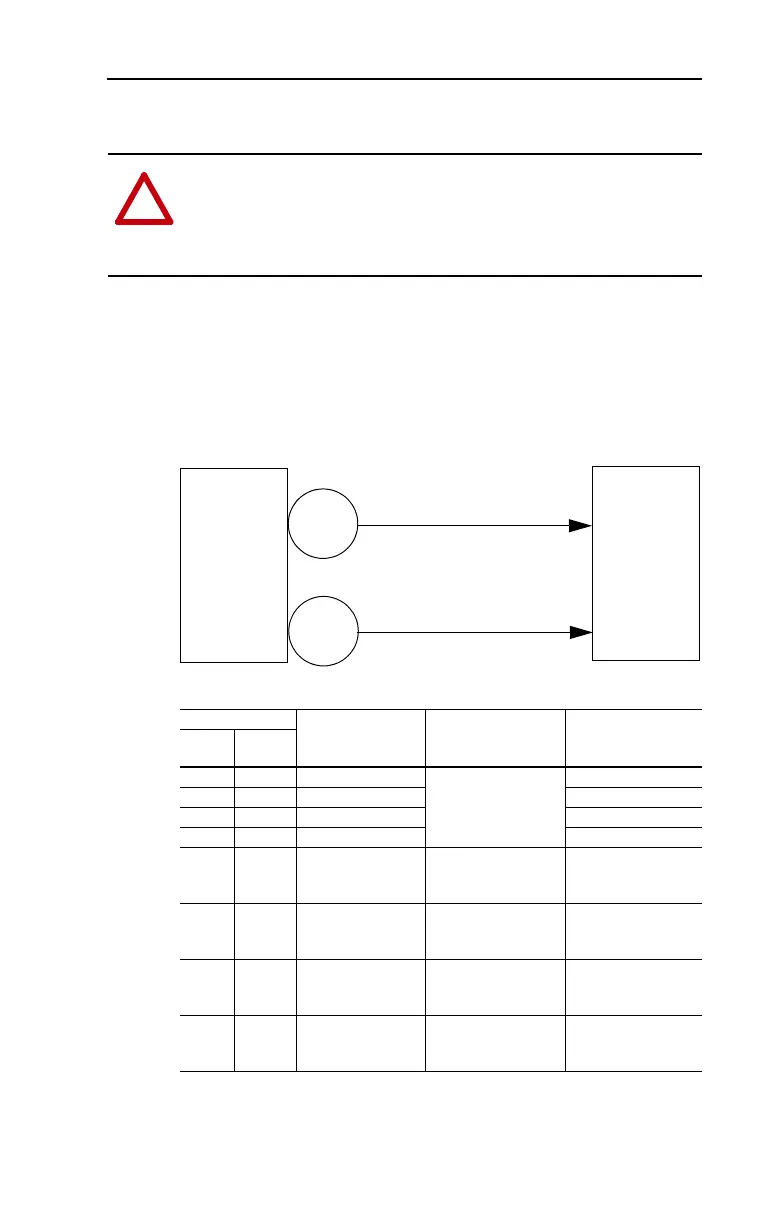

Figure F.2 Configurable Objects: Outputs
!
ATTENTION: Risk of equipment damage exists. If configurable
outputs are programmed to write parameter data to Non-Volatile
Storage (NVS) frequently, the NVS will quickly exceed its life cycle
and cause the drive to malfunction. Do not create a program that
frequently uses configurable outputs to write parameter data to NVS.
Table F.14 Configurable Objects: Outputs
Network Point
Description Range Default
Type
(NPT)
Address
(NPA)
AO 6 User OUT1
Varies by the parameter
selected by Param# for
OUTx.
0
AO 7 User OUT2 0
AO 8 User OUT3 0
AO 9 User OUT4 0
ADI 5 User OUT1 (A06)
Destination (Param#)
0 (not in use), 1 to
maximum # of drive
parameters
A154 [PID Prop Gain]
ADI 6 User OUT2 (A07)
Destination (Param#)
0 (not in use), 1 to
maximum # of drive
parameters
A155 [PID Integ Time]
ADI 7 User OUT3 (A08)
Destination (Param#)
0 (not in use), 1 to
maximum # of drive
parameters
A156 [PID Diff Rate]
ADI 8 User OUT4 (A09)
Destination (Param#)
0 (not in use), 1 to
maximum # of drive
parameters
A158 [PID Deadband]
Controller
Drive
Param#
for OUTx
User
OUTx
ADI
AO
