F-6 Metasys N2
Configurable objects are inputs and outputs that let you read and write
parameter values. These objects handle only 16-bit parameter values.
Reading Parameter Values
The configurable points may show any parameter in the drive by
configuring the Param# for INx point. The drive reads the value of the
parameter configured in the Param# for INx point and shows the result in
the User INx point. The Param# for INx’s default to commonly accessed
parameters and can be changed if desired. A “0” disables the fetching of
data and a “0” is returned in the respective User INx. See Figure F.1
and
Table F.13.

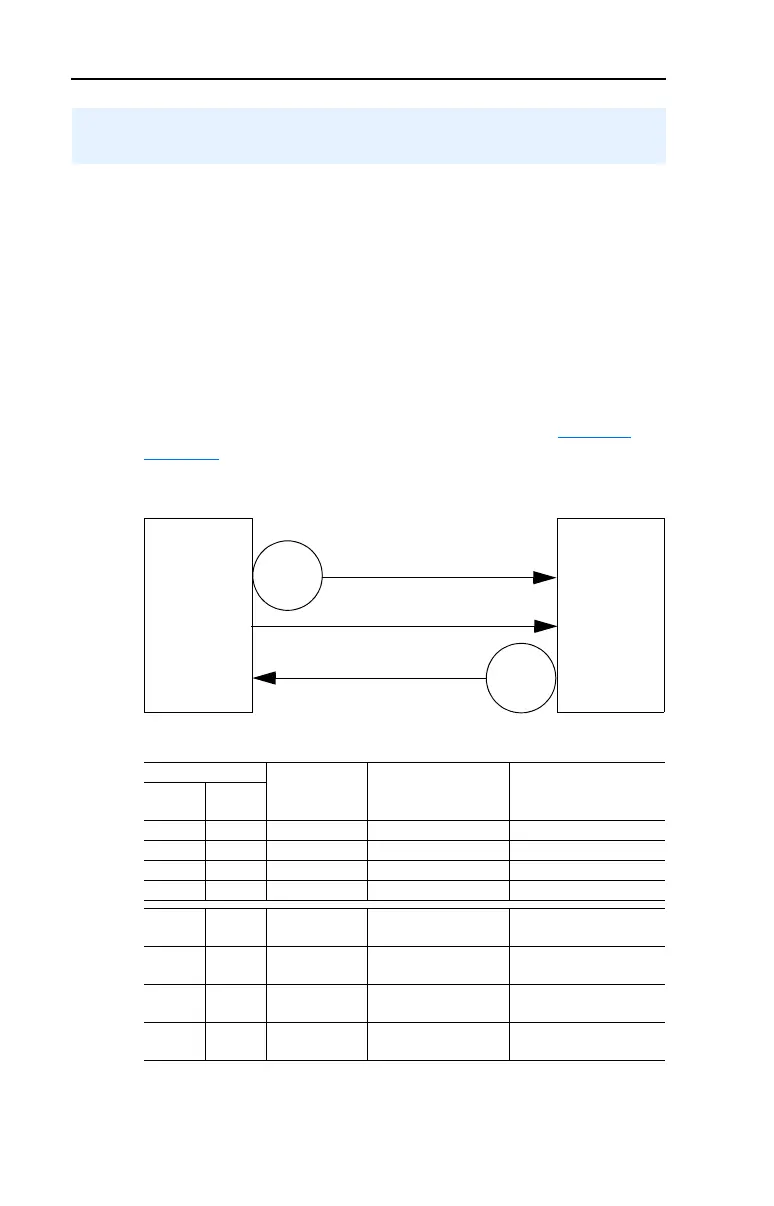

Figure F.1 Configurable Input Point Operation Objects Inputs
Using Metasys Configurable Objects to Access
Parameters
Table F.13 Configurable Objects: Inputs
Network Point
Name Description Default
Type
(NPT)
Address
(NPA)
AI 10 User IN1 User-defined Input 1 0
AI 11 User IN2 User-defined Input 2 0
AI 12 User IN3 User-defined Input 3 0
AI 13 User IN4 User-defined Input 4 0
ADI 1 Param# for IN1 User IN1 (AI 10)
Data Source (Param#)
b001 [Output Freq] (Hz)
ADI 2 Param# for IN2 User IN2 (AI 11)
Data Source (Param#)
b011 [Elapsed MWh]
ADI 3 Param# for IN3 User IN3 (AI 12)
Data Source (Param#)
b012 [Elapsed Run Time]
ADI 4 Param# for IN4 User IN4 (AI 13)
Data Source (Param#)
b014 [Drive Temp]
Controller
Drive
Param#
for INx
User
INx
Request
Response Data
ADI
AI
