Allen-Bradley PowerFlex400 User Manual

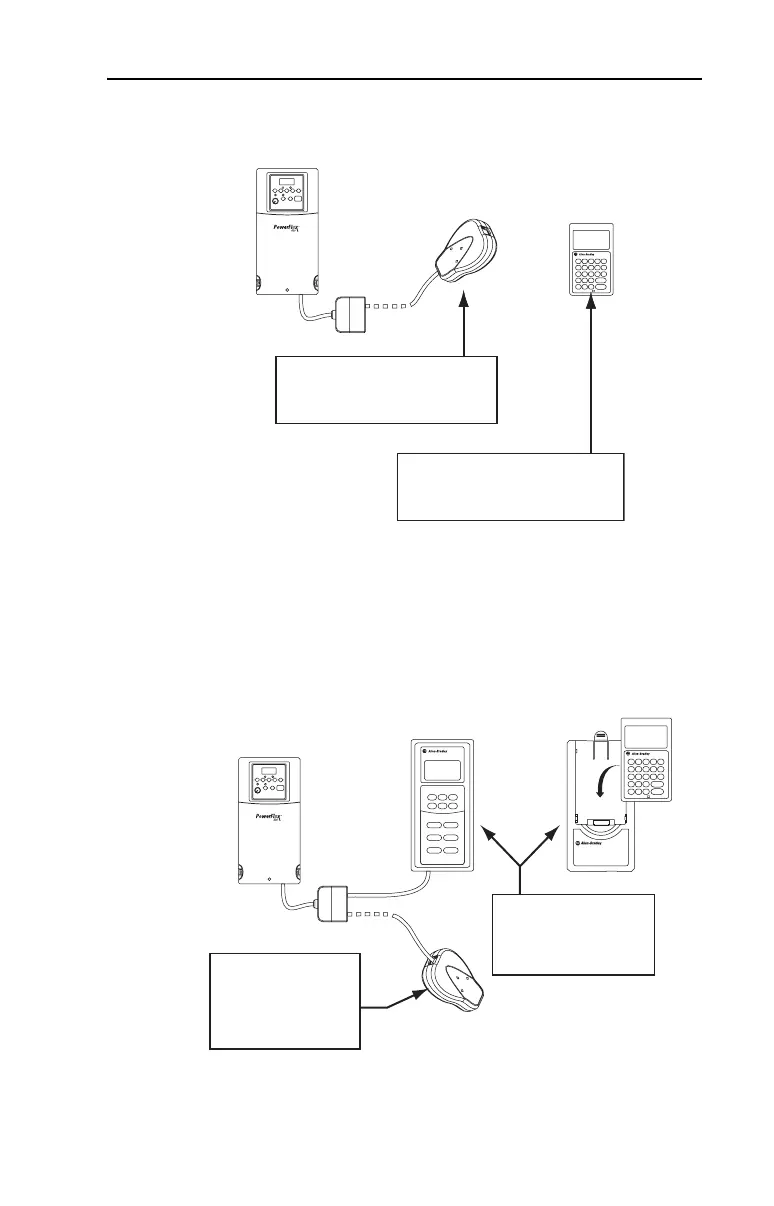

RJ45 DSI Splitter Cable C-3
Connecting One Temporary Peripheral
Connecting One Temporary Peripheral and
One Permanent Peripheral
M
S
Serial Converter
Parameter 1 [Adapter Cfg] set to "Auto"
(default) or "Master" and connected to
Master port (M) on RJ45 Splitter Cable
DSI
DSI
Hand Held
or
Parameter 9 [Device Type] set to "Auto"
(default) or "Master" and connected to
Master port (M) on RJ45 Splitter Cable
DSI Drive
Serial Converter
NEMA 4
Panel Mount Unit
or
NEMA 1 Bezel
with DSI Hand Held
Parameter 9 [Device Type]
set to "Master" and
connected to Master port (M)
on RJ45 Splitter Cable
Parameter 1 [Adapter Cfg]
set to "Auto" (default) or
"Slave" and connected to
Slave port (S)
on RJ45 Splitter Cable
DSI
M
S
DSI Drive
