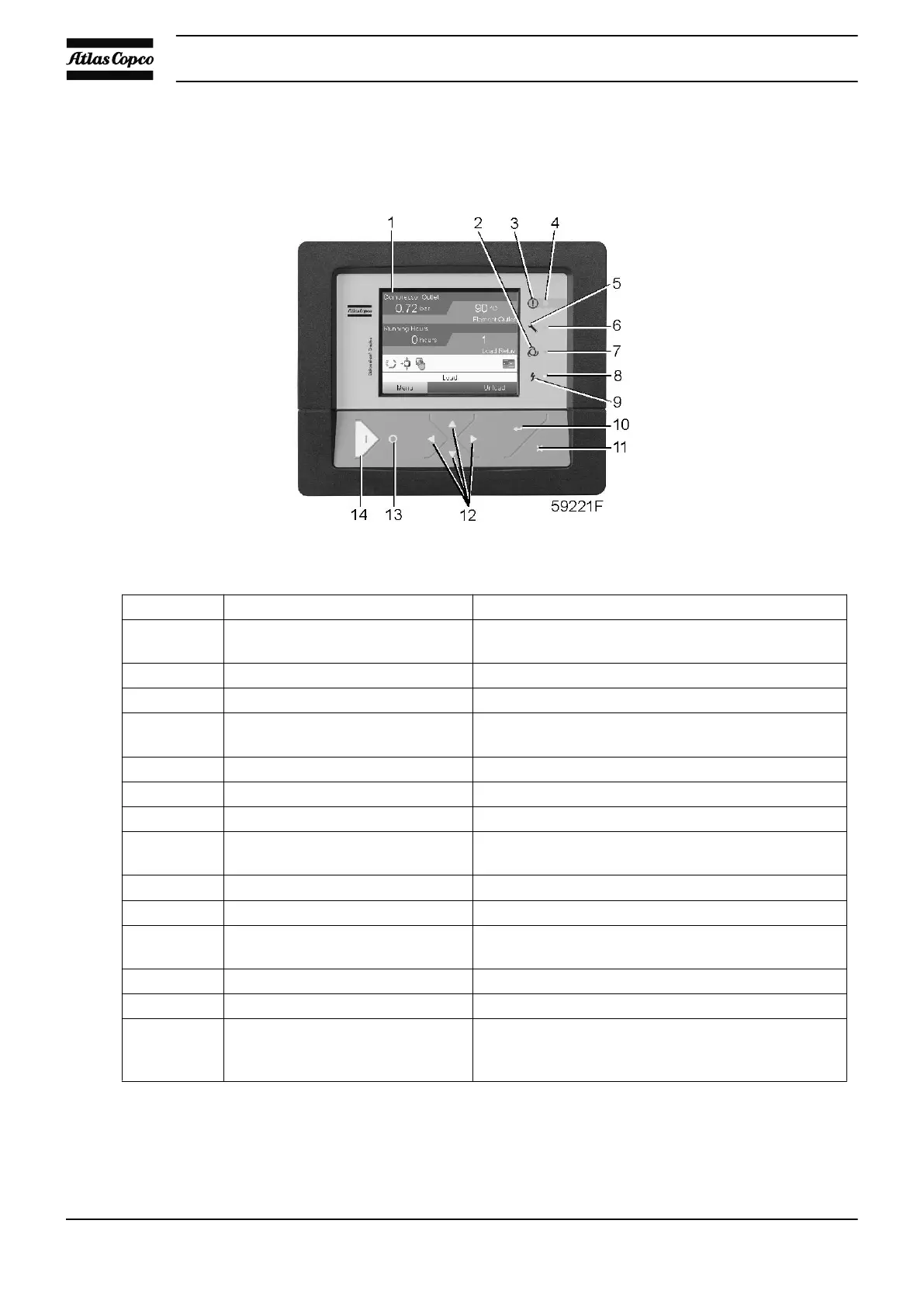

6.2 Control panel
Elektronikon regulator
Parts and functions
Reference Designation Function
1 Display Shows the compressor operating condition and a
number of icons to navigate through the menu.
2 Pictogram Automatic operation
3 Pictogram General alarm
4 General alarm LED Blinks when operating in shutdown warning
condition.
5 Pictogram Service
6 Service LED Lights up when service is needed.
7 Automatic operation LED Indicates that the controller runs in automatic mode.
8 Voltage on LED Lights up when supply is switched on. Compressor
unit might start automatically!
9 Pictogram Voltage on
10 Enter key Enter and confirmation key
11 Escape key To navigate to previous screen or to cancel current
action
12 Scroll keys Keys to scroll through the menu
13 Stop button Button to stop the compressor. LED (7) dims.
14 Start button Button to start the compressor. LED (7) lights up,
indicating that the Elektronikon controller is
operational.
Instruction book
114 2920 1815 04
