3.3 Function keys

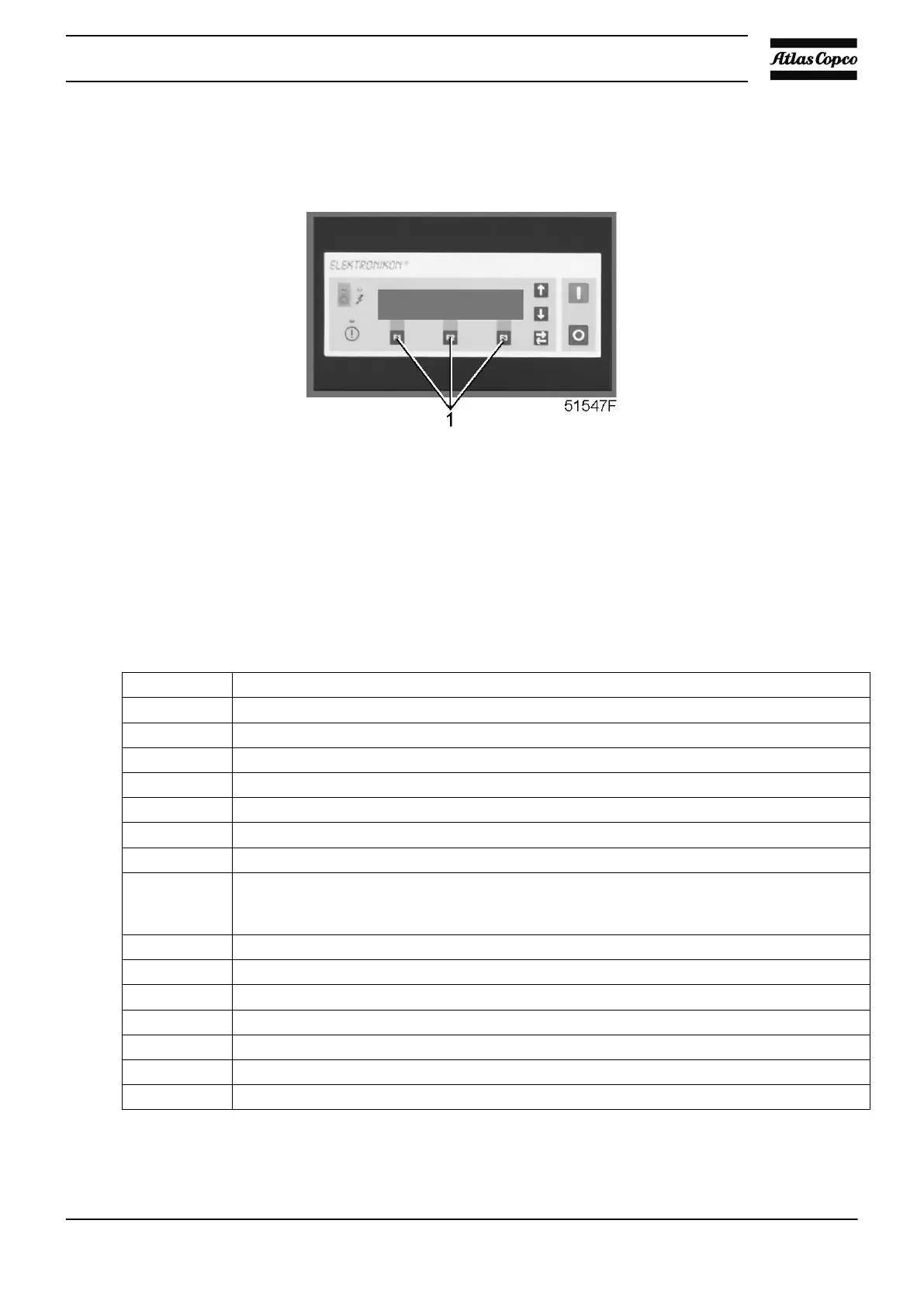

Control panel
Function keys
The keys (1) are used:
• To manually load/unload the compressor
• To call up or to program settings
• To reset a motor overload, shut-down or service message, or an emergency stop
• To have access to all data collected by the regulator
The functions of the keys vary depending on the displayed menu. The actual function is indicated just
above the relevant key. The most common functions are listed below:
Designation Function
Add To add compressor start/stop commands (day/hour)
Cancel To cancel a programmed setting when programming parameters
Delete To delete compressor start/stop commands
Limits To show limits for a programmable setting
List To list programmed start/stop commands (day/hour)
Load To load the compressor manually
Main Screen To return from a menu to the main display
Menu • Starting from the main display, to initiate the main menu which gives access to
submenus
• Starting from a submenu, to return to the main menu
Modify To modify programmable settings
Show More To have a quick look at the compressor status
Program To program modified settings
Reset To reset a timer or message
Return To return to a previously shown option or menu
Select To select a submenu or to read more details of a selection shown on the display
Unload To unload the compressor manually
Instruction book
2920 1815 04 47
