5.18 Programming clock function

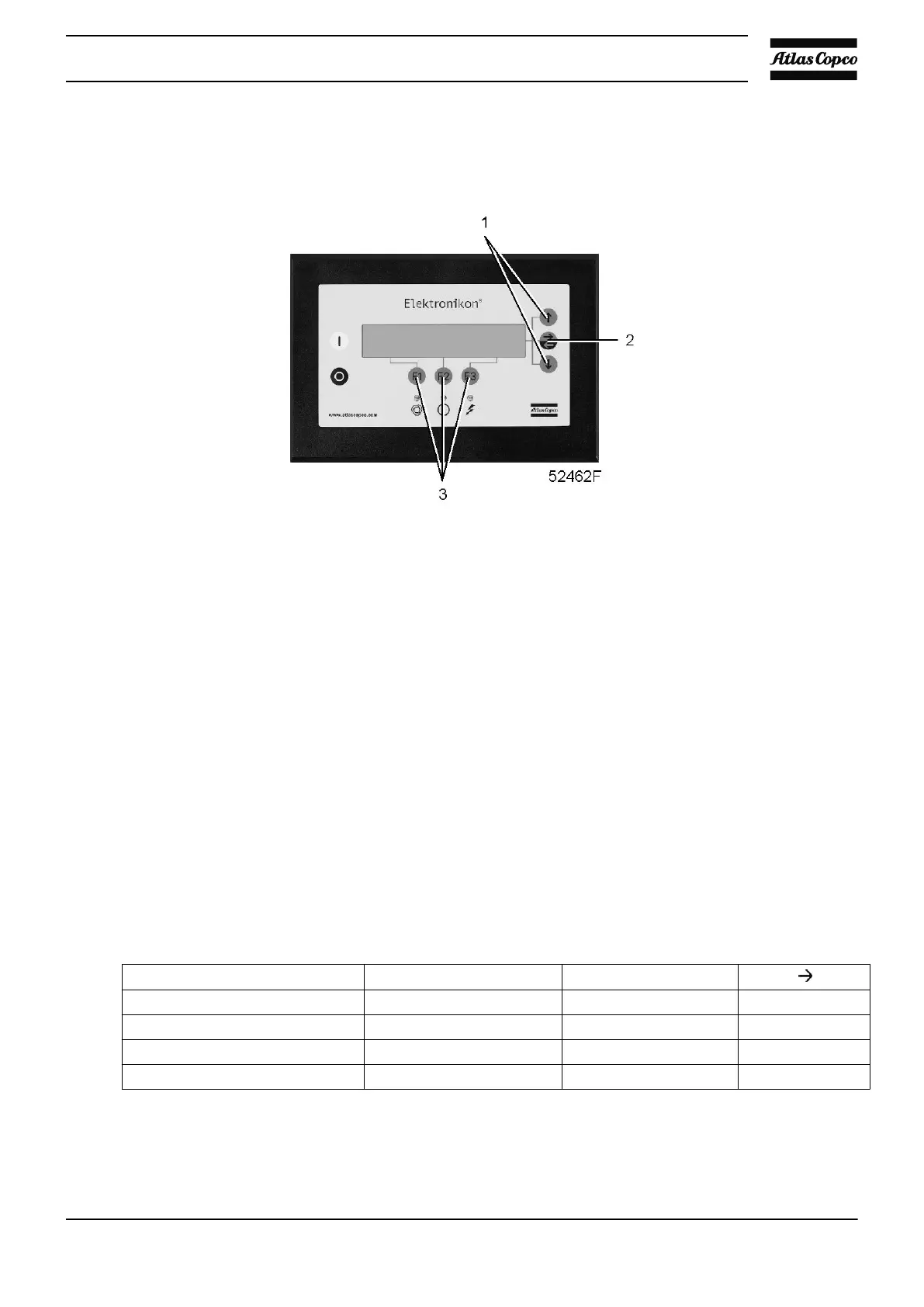

Control panel
Function
To program:
• Time-based start/stop commands for the compressor
• Time-based change-over commands for the net pressure band
Programming start, stop and pressure band commands
In this example, the compressor will be programmed as follows:
• On Monday at 06:15 starting in pressure band 1
• On Friday at 18:00 changing over to pressure band 2
• On Saturday at 18:00 stopping
Starting from the Main screen (see Main screen menu):
• Press the key “Menu” (F1).
• Press the arrow down key (1) until “Modify Parameters” is followed by a horizontal arrow.
• Activate the menu by pressing tabulator key (2).
• Use the arrow down key (1) to scroll until the option “Clock Function” is followed by a horizontal
arrow.
• Activate the menu by pressing tabulator key (2); following screen appears:
“Clock Function”
“Not Activated”
.
“Menu” “Modify” “Delete”
F1 F2 F3
• Press the tabulator key (2), following screen appears:
