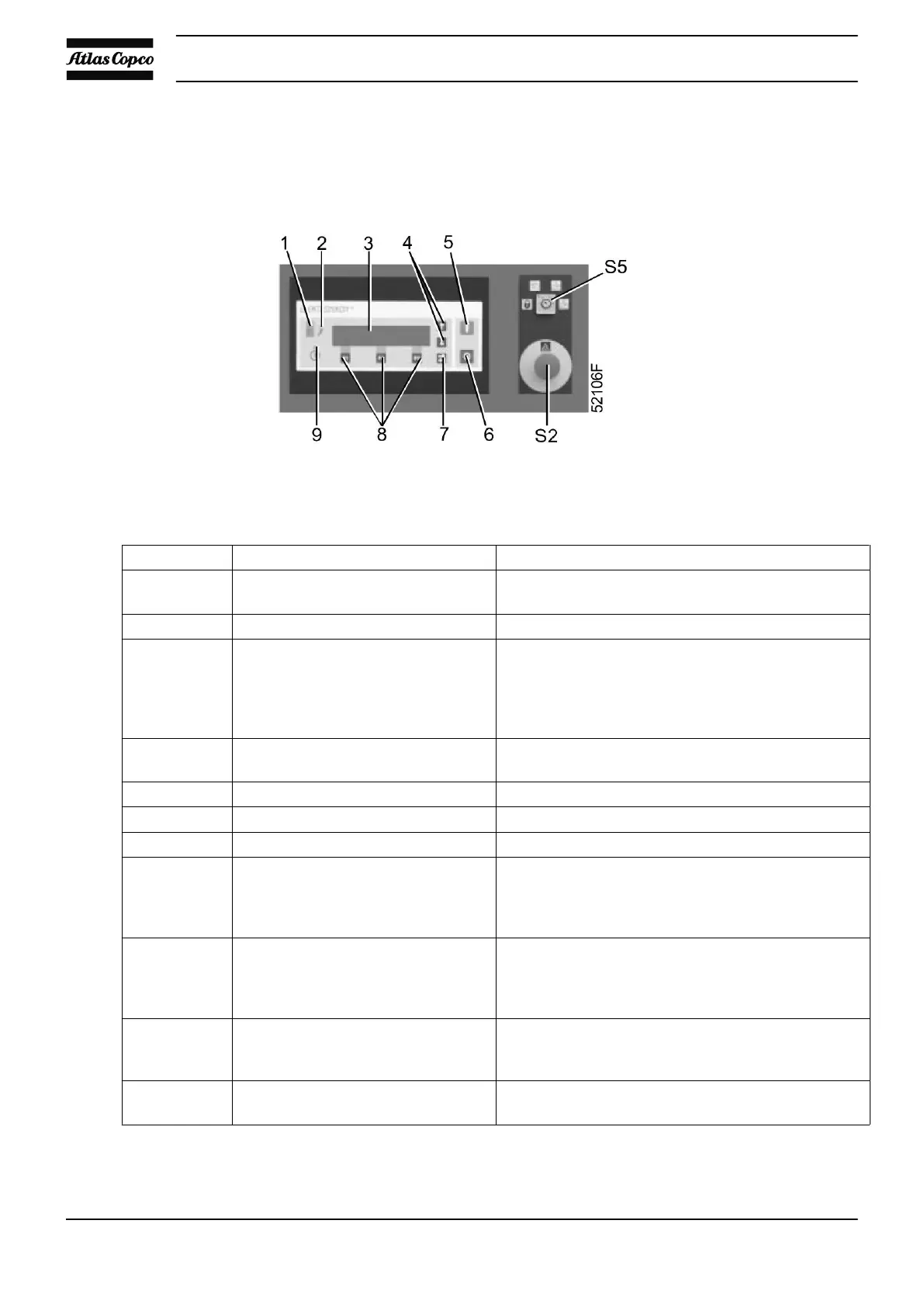

3.2 Control panel
Elektronikon regulator
Parts and functions
Reference Designation Function
1 Automatic Operation LED Indicates that the electronic regulator is
automatically controlling the compressor.
2 Voltage on LED Indicates that the voltage is switched on.
3 Display Indicates messages concerning:
• The compressor operating condition
• A service need
• A fault
See Main screen menu
4 Scroll keys Up and down keys to scroll with through the display.
See Scroll keys.
5 Start button Button to start the compressor.
6 Stop button Button to stop the compressor.
7 Tabulator key Key to go to the next field of the display.
8 Function keys Keys to control and program the compressor. The
function of the functions keys varies depending on
the displayed menu. The actual function is indicated
above the relevant key. See Function keys.
9 General Alarm LED • Lights up in case of a shut-down.
• Blinks in case of a shut-down.
• Blinks if an important sensor is out of order.
• Blinks after an emergency stop.
S2 Emergency stop button Button to stop the compressor immediately in case
of emergency. LED (1) goes out. See Emergency
stop button.
S5 Control mode switch Key switch to select the compressor control mode.
See Control mode switch.
