Reference Name
7a, 7b, 7c, 7d Solenoid valve
8 Nozzle of dryer inlet
9 Water separator
10 Silencer
11 Safety valve
12 Compressed air from compressor
13 Regeneration air from compressor
14 Symbol
15 Explanation
16 Air flow
17 Air flow direction
18 No air flow
19 Drain
20 Cooling water
To allow low load operation (load rate < 40%), a low load compensator is required during compressor
unload. The compensator keeps the pressure dew point (PDP) steady by purging a small amount of heated,
dried air through the dryer rotor (4).

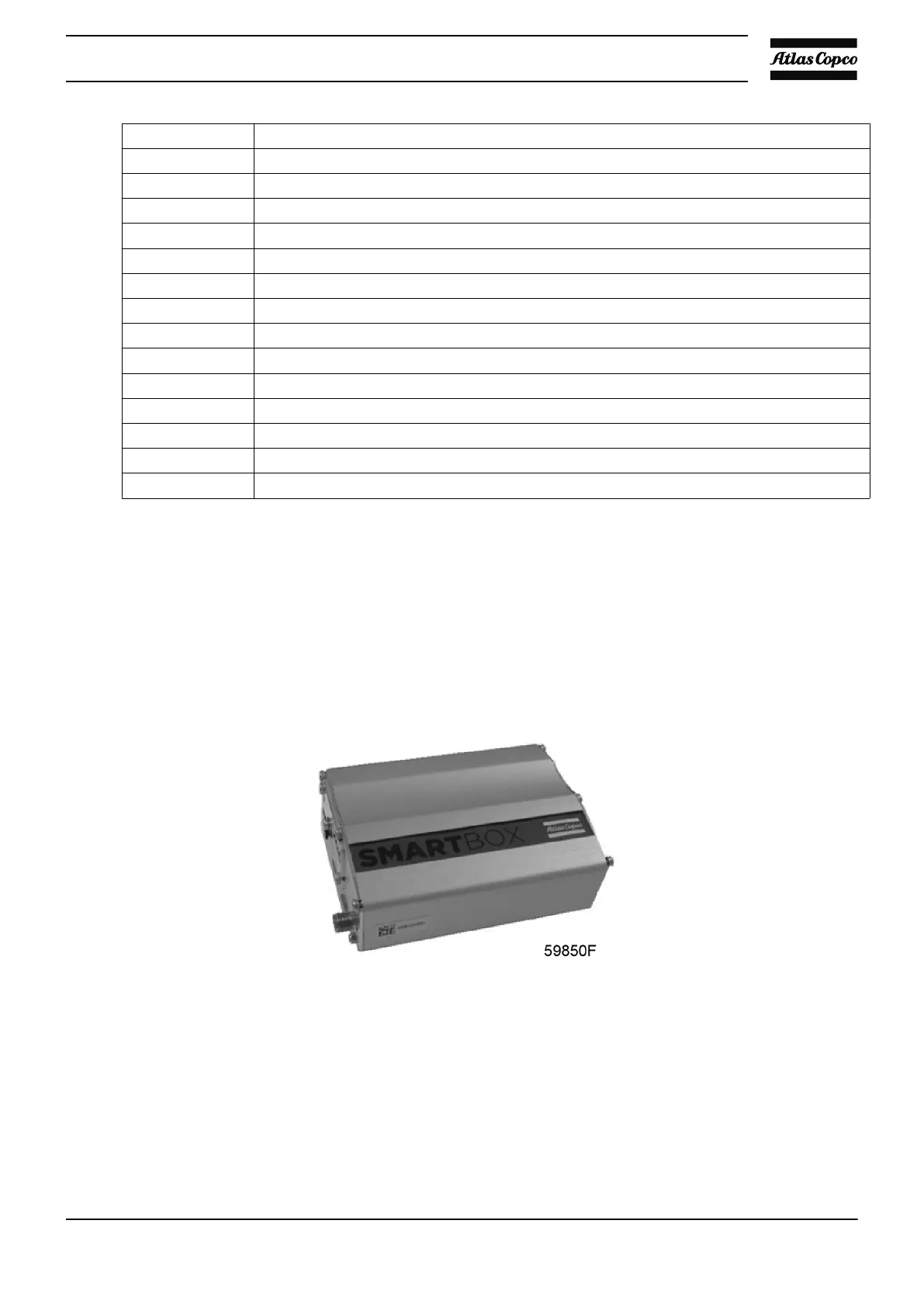

2.9 SMARTBOX and SMARTLINK
General
The machine comes with a SMARTBOX mounted in the electrical cabinet.
The SMARTBOX allows read-out of a number of parameters of the machine on a user login-protected web
site called SMARTLINK. The connected antenna is mounted on the outside of the machine.
Safety precautions
It is important to follow all regulations regarding the use of radio equipment, in particular regarding the
possibility of radio frequency (RF) interference. Please follow the safety advice given below carefully.
• Respect restrictions on the use of radio equipment in fuel depots, chemical plants or other explosive
environments.
Instruction book
2920 1815 04 41
