3.22 Configuration menu

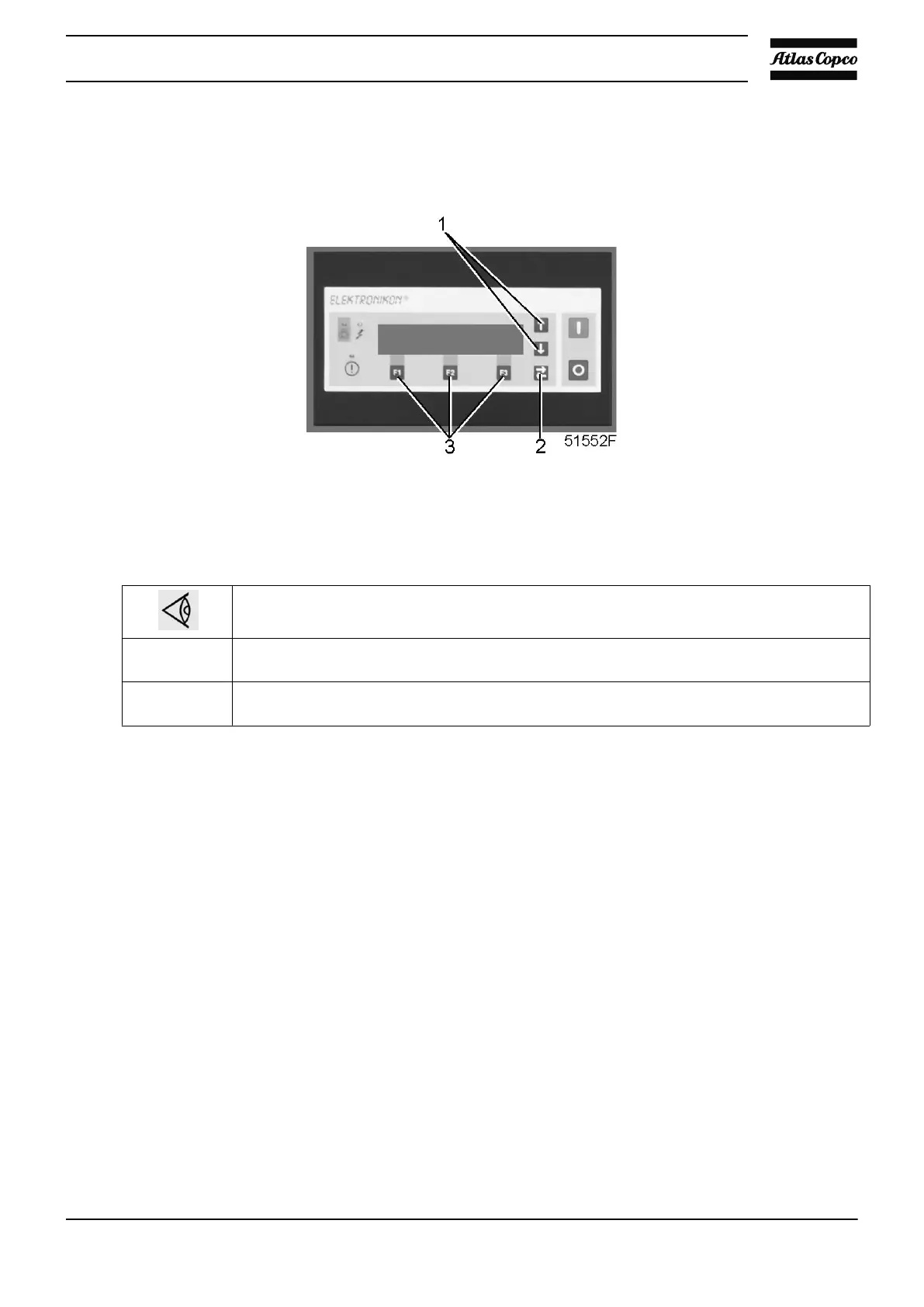

Control panel
Function
To reprogram a number of parameters. Consult the menu flow in section Control programs.
Two languages are programmed.
The function “Auto restart after voltage failure” can only be activated by an Atlas Copco
Customer Centre.
For the date format: “DD MM YY” stands for day/month/year - “MM DD YY” stands for
month/day/year - “YY MM DD” stands for year/month/day.
Procedure
Starting from the Main screen (see Main screen menu):
• Press key “Menu” (F1).
• Press key (1) until “Configuration” is shown.
• Activate the menu by pressing key “Select” (3).
• Press key “Select” (3).
• The first option shown is “Time”. If another option is desired, scroll through the display (using scroll
keys 1) and select (using key 3).
• In case of option “Time”, the second line on the screen indicates the actual setting, e.g. “14:30”.
• If it is desired to modify the time, press key “Modify” (3). If not, press key “Menu” to return to the
submenu.
• After pressing the key “Modify”, the first field (“14”) will blink. Modify the hours using scroll keys
(1). Then press tabulator key (2) to go to the next field (“30”). The setting of this field can now be
modified with the scroll keys.
• The bottom line of the display will show two options: “ Program” to program the new setting and
“ Cancel” to cancel the new setting
• Proceed in the same way for the other parameters to be modified. Use scroll keys (1) to modify the
parameter.
Instruction book
2920 1815 04 67
