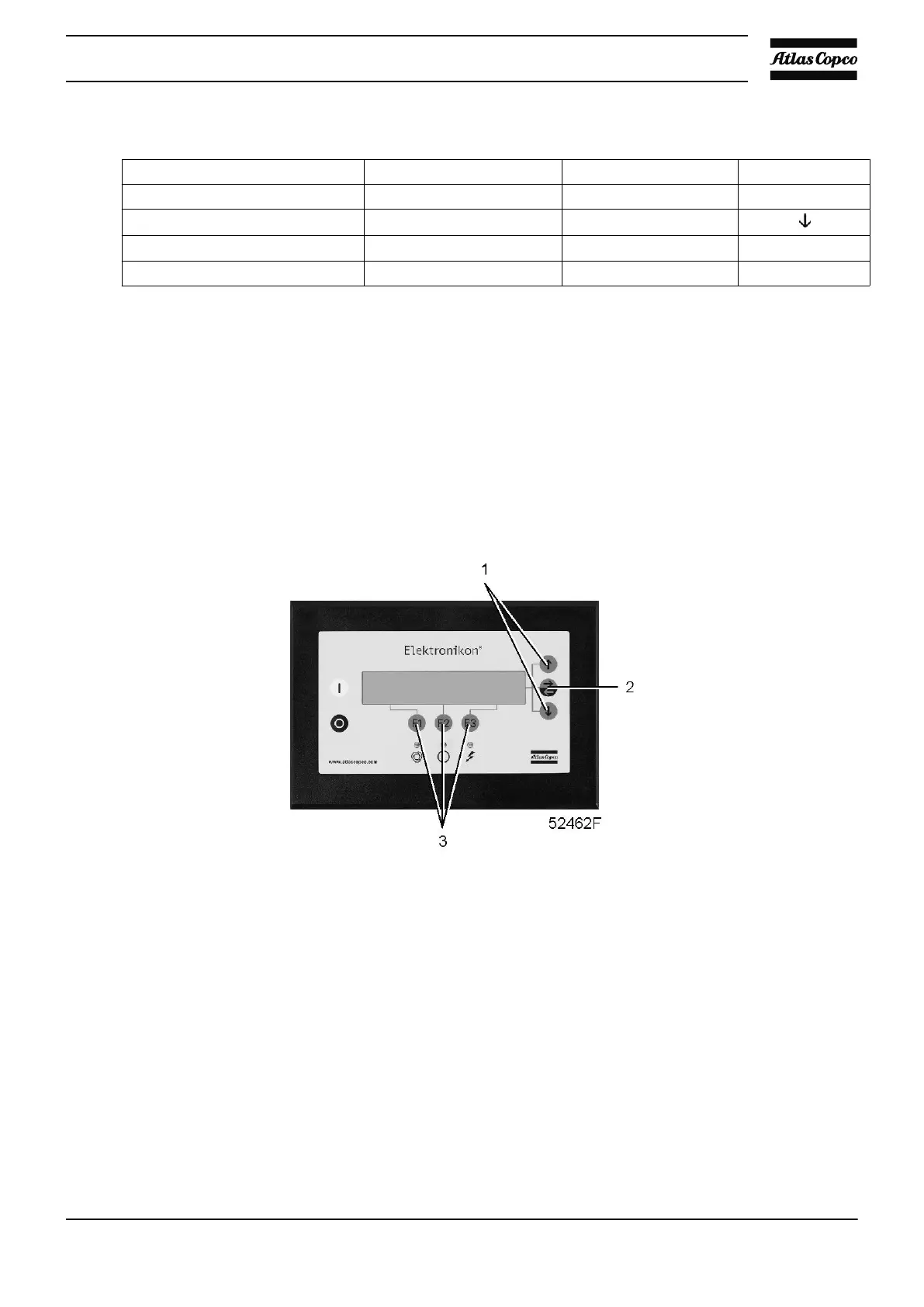

Example of Main screen of ZT 110 up to ZT 275
“Compressor Outlet” 7.5 bar
.
“Automatically Loaded”
“Menu” “Unload”
F1 F2 F3
After pressing the “Menu” (F1) key, the option “Status Data” will be followed by a horizontal arrow:
• Either press the tabulator key (2) to select this menu,
• or use the arrow down key (1) until the desired submenu is followed by a horizontal arrow and then
press the tabulator key (2) to select this menu.
The arrow down key (1) can be used for a quick look at the actual compressor status.
5.9 Main screen menu
Function
Control panel
The Main screen menu shows the status of the compressor operation and is the gateway to all functions
implemented in the regulator.
Procedure
The Main screen is shown automatically when the voltage is switched on.
If the function or arrow keys (1, 2 and 3) are not used for some minutes, the regulator will automatically
return to the Main screen.
Whenever displayed on a submenu screen, press the “Mainscreen” (F1) key to return to the Main screen.
Instruction book
2920 1815 04 85
To Next Page
