5. Lenses & lens holder

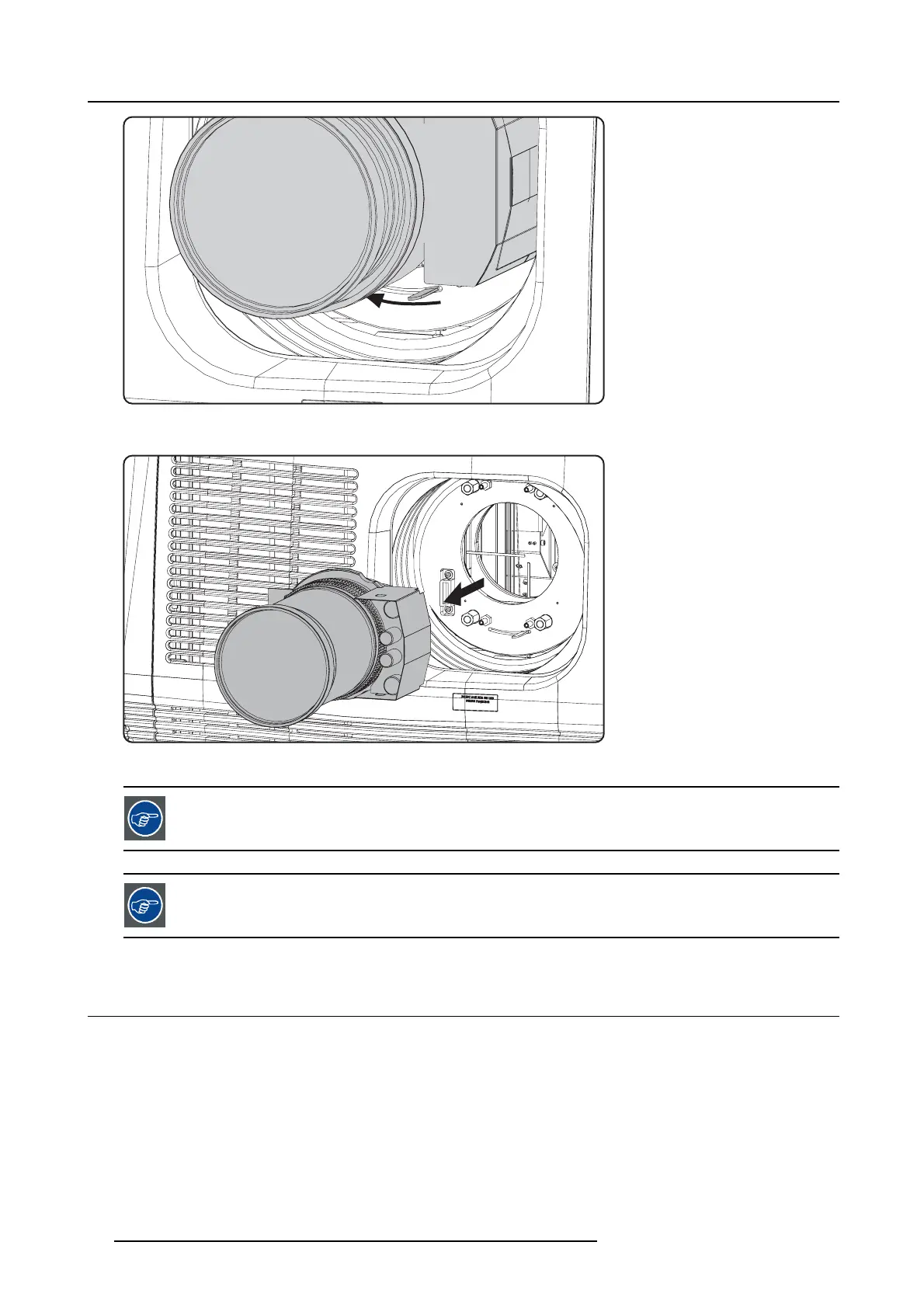

Image 5-11
2. Gently pull the lens out of the lens holder.
Image 5-12
Remove lens
It’s recomme nded to place the Lens caps of the original Lens packaging, back on both sides of t he removed
Lens to protect the optics of the Lens
.
It’s recommended to place the foam rubber of the original projector packag ing, back in the Lens o pening to
prevent intrusion of dust. Note that this foam rubber is p acked in a plastic b ag to p revent the dust, emitted by
the foam, fr om enter ing the p r ojector.
5.4 Lens installation
How to install a lens into the projector lens holder ?
1. Remove the foam rubber in the opening of the lens holder if not removed yet.
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
3. Close the lens locking mech anism prior to lens insertion (1). Lens locking mechanism is closed by pus hing the lens lock to the
right.
40
R5905050 DP2K C-SERIES 10/07/2012
