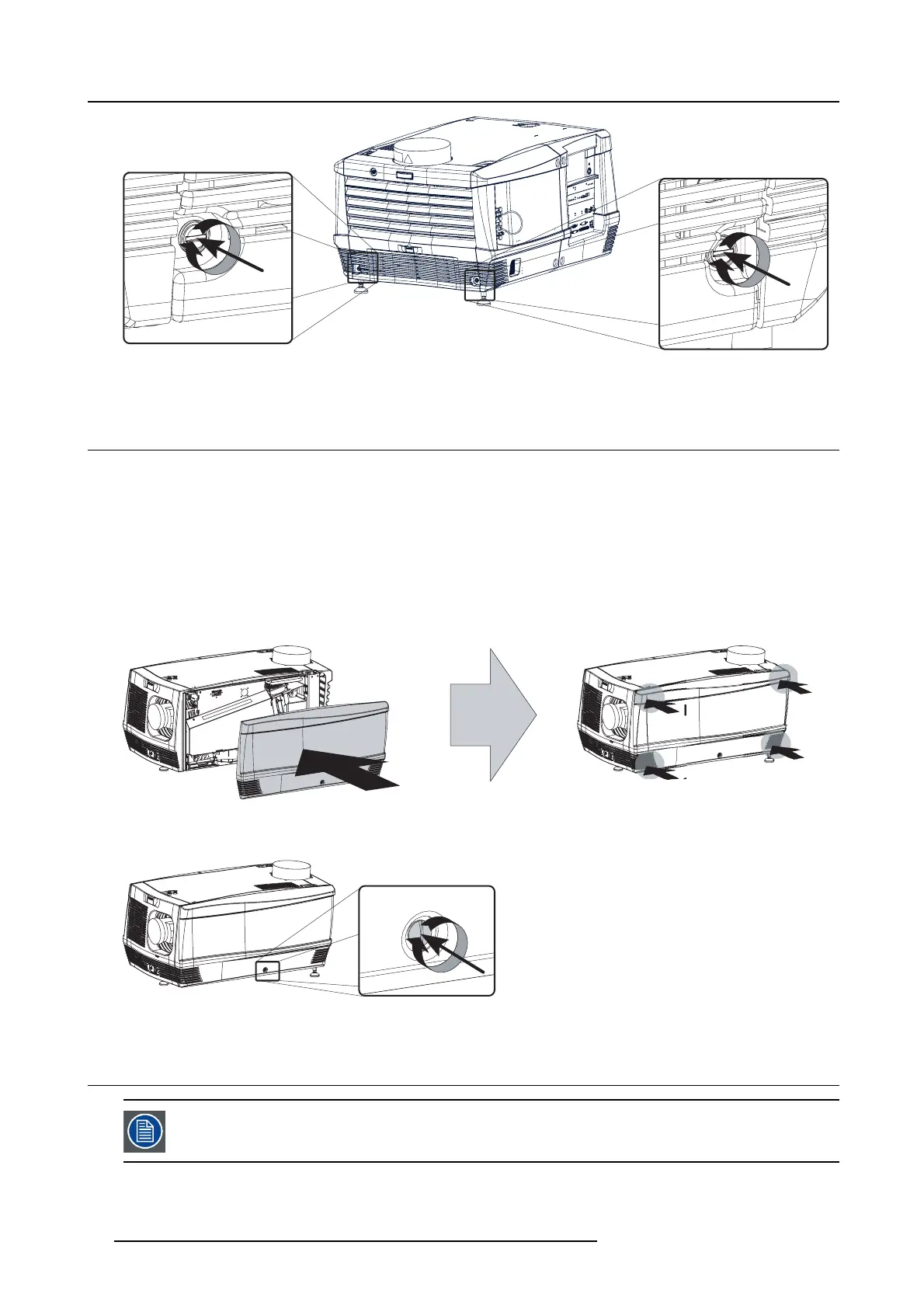

10. Removal and installation of projector covers
Image 10-20
Fasten rear housing
10.11 Installation of the side cover
Necessary tools
Flat screw driver.
How to install the side cov er of the projector?
1. Check if the bottom and top filters a re present.
2. Install the side cover of the projector doing the following:
a) Bring the side cover towards its final position ( A),
b) then gently push the loc king studs of the top corners (B) into their receivers,
c) then gently push the locking studs of the bottom c orners (C) into their receivers.
B
B
C
C
A
Image 10-21
3. Secure the side cover by loc king the captive screw in the middle at the bottom of the side cover.
Image 10-22
10.12 Installation of the front cover
The input cover and the lens m ay not b e installed yet.
76 R5905050 DP2K C-SERIES 10/07/2012
