6. Input & communication
Can be used to connect external 3D de vices to the projector. All signals necessary for 3D p rojection can be provided via this con-
nector.
PERIPHERAL PORT
For future us e.
6.4 Source input ports of the DP2K C-series projector

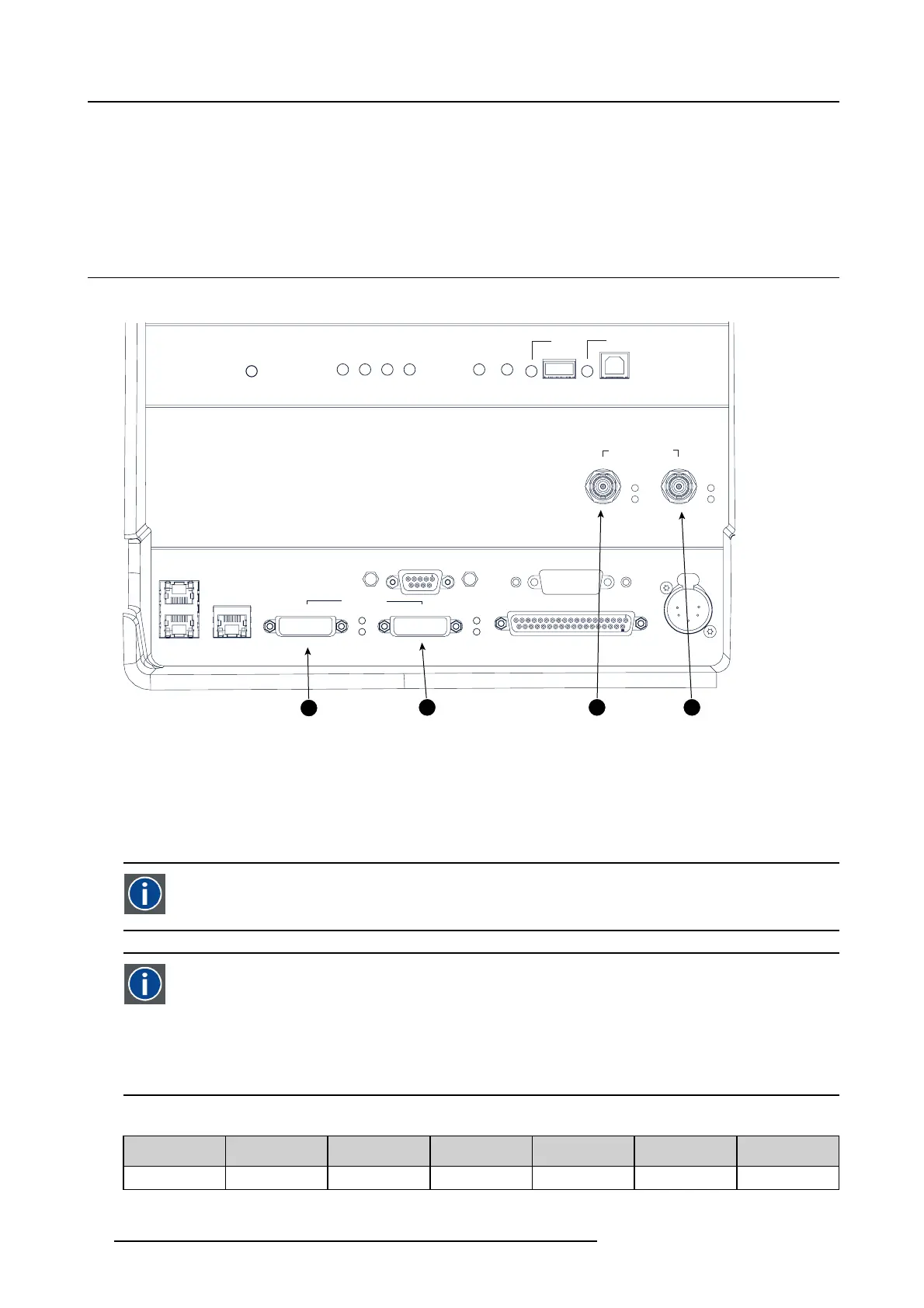

Location of the source input ports
GENERAL PURPOSE IN/OUT
DVI A DVI B
DVI INPUT
SEL
SYNC OK
SEL
SYNC OK
10 / 100 / 1000 BASE-T
RS232 IN 3D INTERFACE PERIPHERAL PORT
SMPTE 292/424 IN
AB
SEL
SYNC OK
SEL
SYNC OK
1
2
3
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT
CINEMA
ALT
CONT
USB
OUT
USB
IN
1
2 3 4
Image 6-4
Inputs
1
DVI-D input, port A, Single link + HDCP
2
DVI-D input, port B, Single link + HDCP
3
(only for 2K projectors) S MP TE 292/424 input, port A (m aximu m cable length of 30 m a llowed)
4
(only for 2K projectors) S MP TE 292/424 input, port B (m aximu m cable length of 30 m a llowed)
SMPTE
Society of M otion Picture and Television E ngineers - A global organization, based in the United States, that sets stan-
dards for baseband visual communications. This includes film as well as video standards.
DVI
Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.
The digital video connectivity standard that was developed by DDW G (Digital Display Work Gr oup). This connection
standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that hand les both digital and analog video. This standard uses TMD S (Transition Minimized Differential Signal) from
Silicon Image and DDC (Display Data Channel) from VE SA (Video Electronics Standards Association).
DVI can be s ingle or dual link.
DVI Input formats
Input Sou r ce
standard
Vertical rate Scan type Color space Sampling Color depth
Single DVI VESA (640x480) 60 Progressive RGB 4:4:4 8 bit
50 R5905050 DP2K C-SERIES 10/07/2012
