10. Removal and installation of projector covers
2. Remove the lamp cover from the projector doing the following:
a) gently pull out the left bottom corner (A) of the lamp cover,
b) then gently pull ou t the left top corner (B) of the lamp cover,
c) then m ove the lamp cover away from the projector (C).
B
A
C

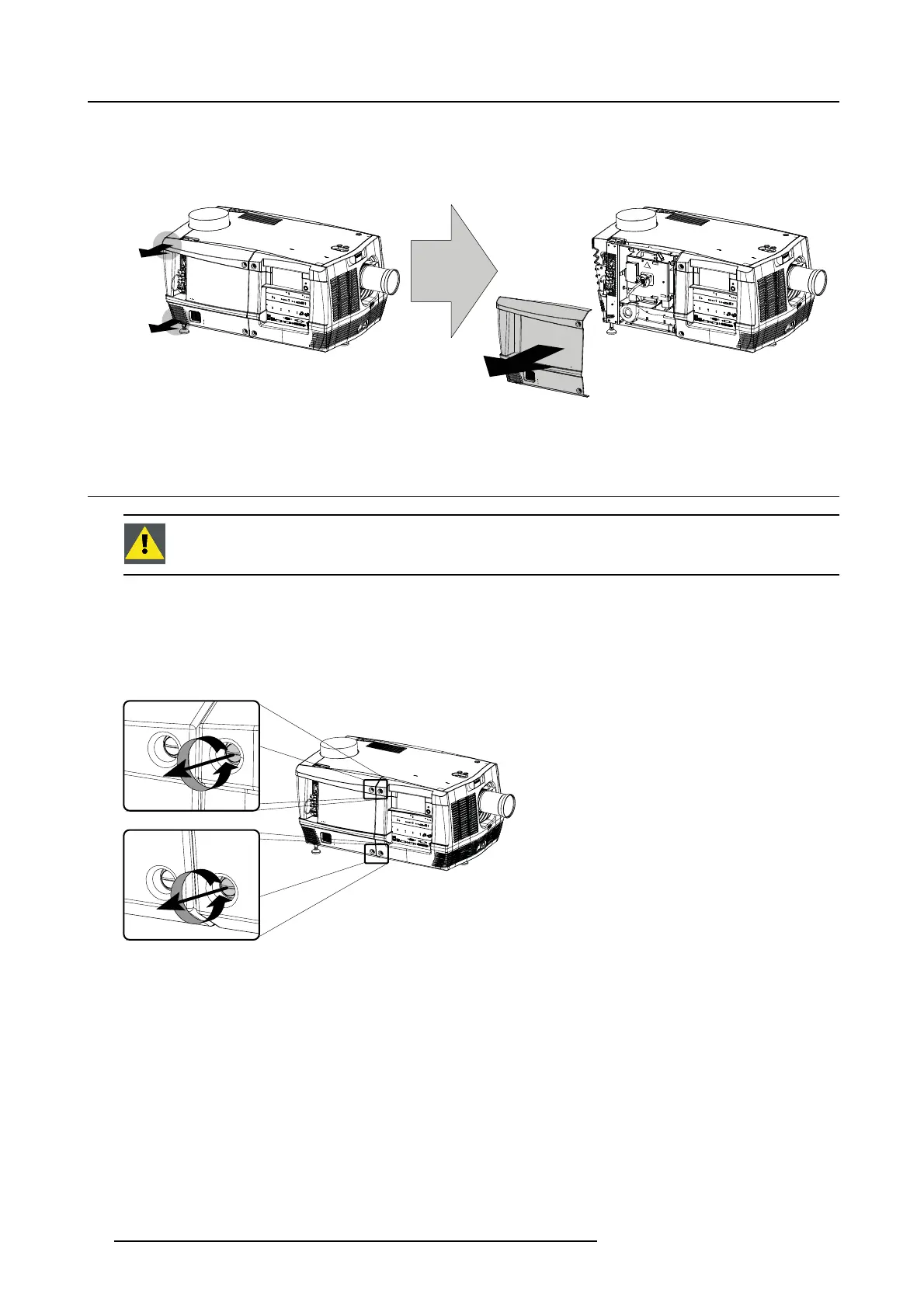

Image 10-2
Remove lamp cover
10.2 Removal of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
Flat screw driver.
How to remove the input cover of the projector?
1. Release the two captive screws at the top an d bottom left side of the input cover, using a fla t sc re w driver.
Image 10-3
Release input cover
2. Remove the input cover from the projector doing the following:
a) gently pull out the right bottom c orner (A) of the input cover,
b) then gently pull out the right top c orne
r (B) of the input cover,
c) then m ove the input cover away from the projector (C).
68
R5905050 DP2K C-SERIES 10/07/2012
