12. Convergence
1

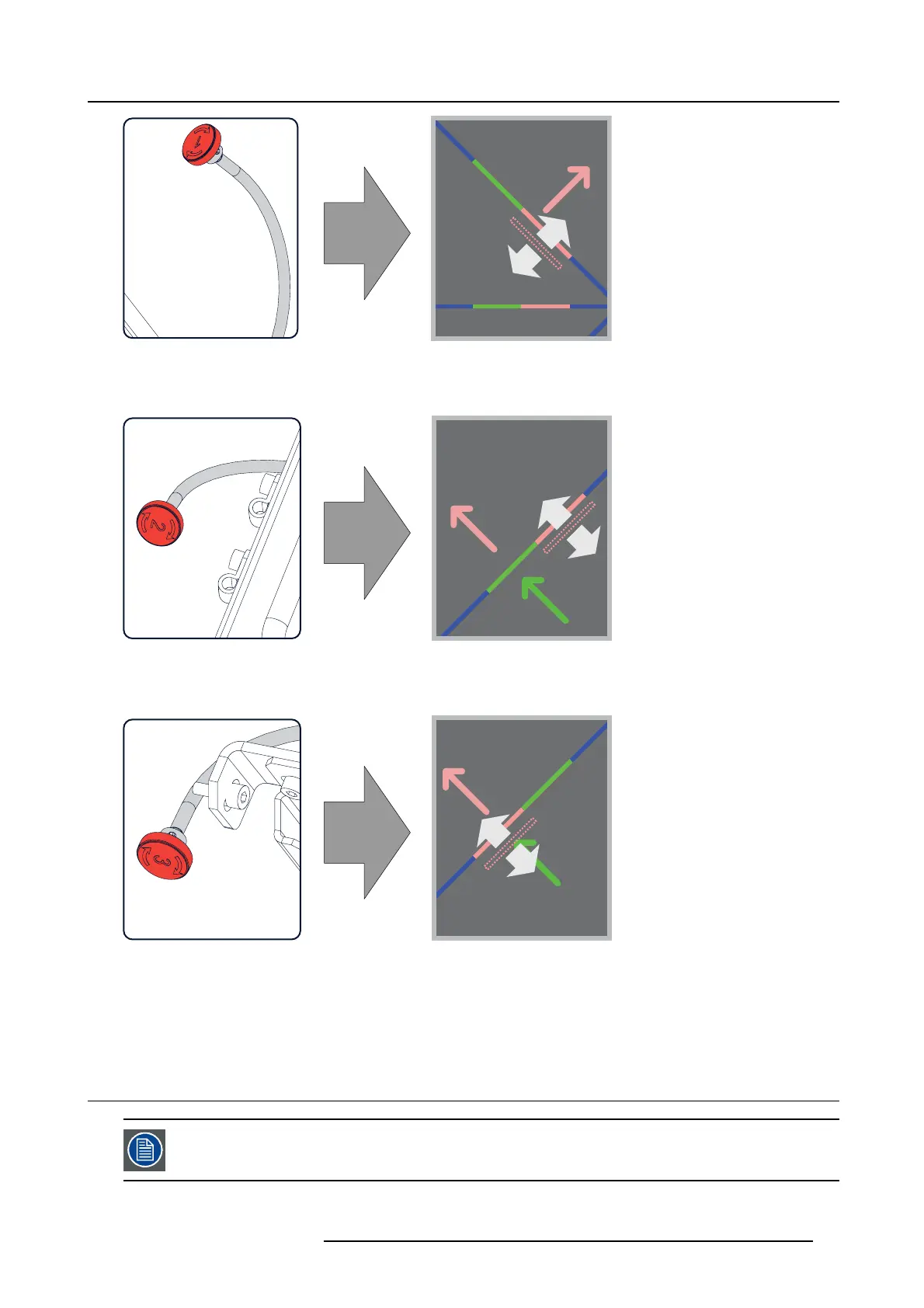

Image 12-6
Clockwise turning w ill move line downwards.
2. Slightly turn the red colored c ontrol knob number 2 until the re d pattern in the lower left of the projected image converges with
the blue pattern.
2
5
Image 12-7
Clockwise turning will move line upwards.
3. Slightly turn the red colored control kn ob number 3 until the red pattern in the upper right of the pr ojected ima ge converges with
the blue pattern.
3
6
Image 12-8
Clockwise turning will move line upwards.
4. Repeat step 2 and step 3 until coincidence is obtained of the red pattern in the lower left and upper right of the projected image.
5. Repeat from step 1 un til full coincidence is obtained of the red pattern in the center, lower left and upper right of the projected
image.
12.4 Green on Blue convergence
This procedure can only be executed w h en all preparations are taken to converge the image. See " Preparing
the con vergence adjustment", page 89.
R5905050 DP2K C-SERIES 10/07/2012 91
