Barco DP2K-23B User Manual

109R5905753 /17 DPxK-19B/23B/P
1
2

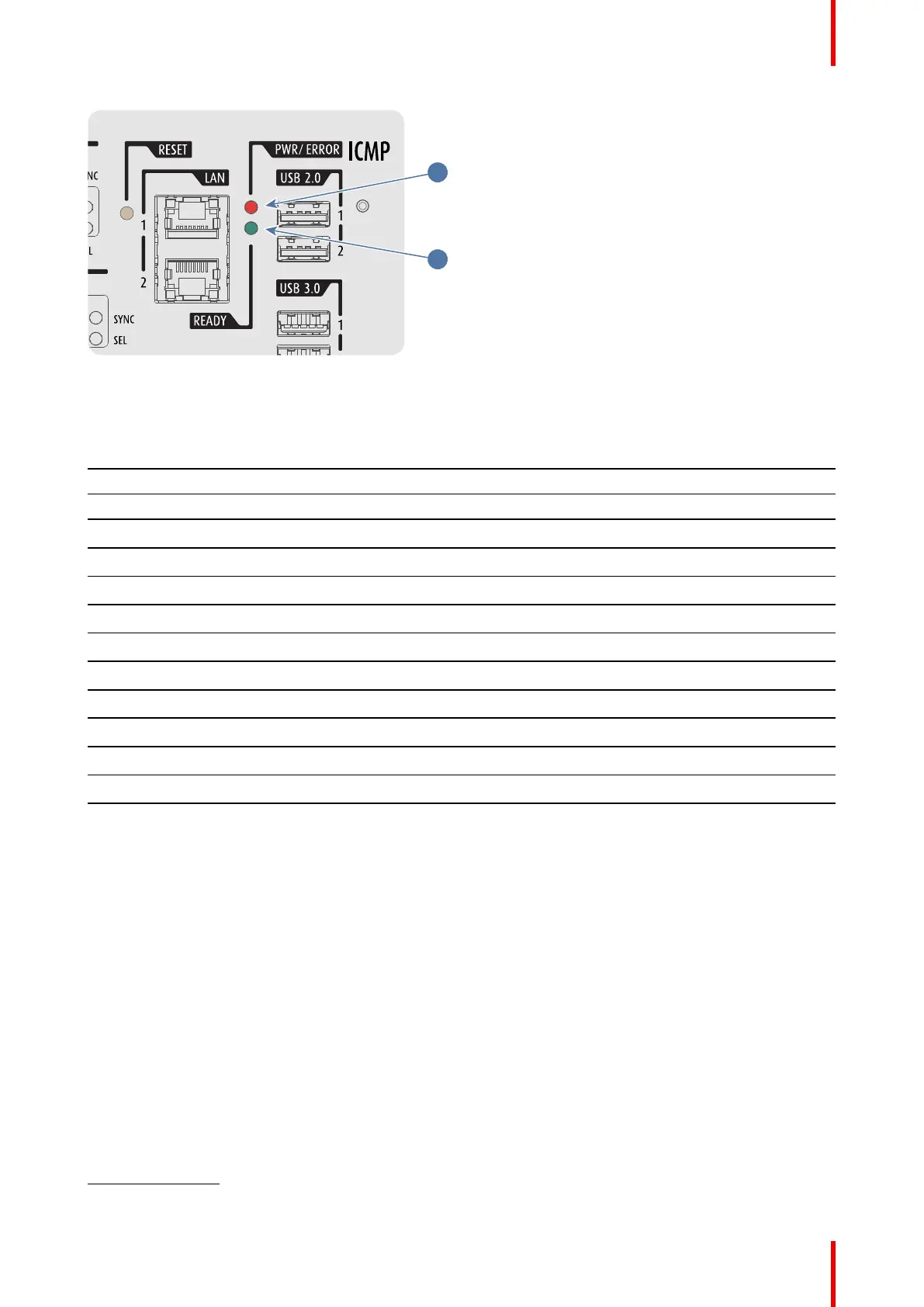

Image 7–16
1 Power / Error LED
2 Ready LED
Status overview PWR/ERROR and READY LEDs:
PWR/ERROR
READY
ICMP(-X) Status
Off Off Turned off
Red Off Board reset or FIPS error
Blinking Green Off Boot loader
Blinking Green Blinking Orange Operating System start up
Blinking Green Orange Security Manager - Image Integrity tests
Blinking Green Blinking Yellow Security Manager - Self Test
Blinking Green Yellow Security Manager - FPGA self-test
Green Blinking Green Starting Applications
Green Green Applications started in normal mode
Green Orange Applications started in degraded mode
Blinking Red Off FIPS error
Green Blinking Orange Update ongoing
Orange Orange Update done
7.8 ICMP(-X) device certificate
Purpose of the Barco ICMP(-X) device certificate
The device certificate (*.pem) of the Barco ICMP(-X) is a digital certificate signed by Barco which is required
when ordering the KDM
4
to play a DCP that is ingested on the ICMP(-X). The device certificate is stored inside
the ICMP(-X) and on a web server.
The (WEB) Commander or Communicator can be used to retrieve the device certificate directly from the ICMP
(-X). To retrieve the device certificate from the website the QR (Quick Response) code can be used. See
procedure “Obtaining the ICMP(-X) certificate”, page 111.
ICMP(-X)
4. For China mainland LDM is used next to KDM. LDM specifies also a maximum number of shows.

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
