Barco DP2K-23B User Manual

R5905753 /17 DPxK-19B/23B/P82

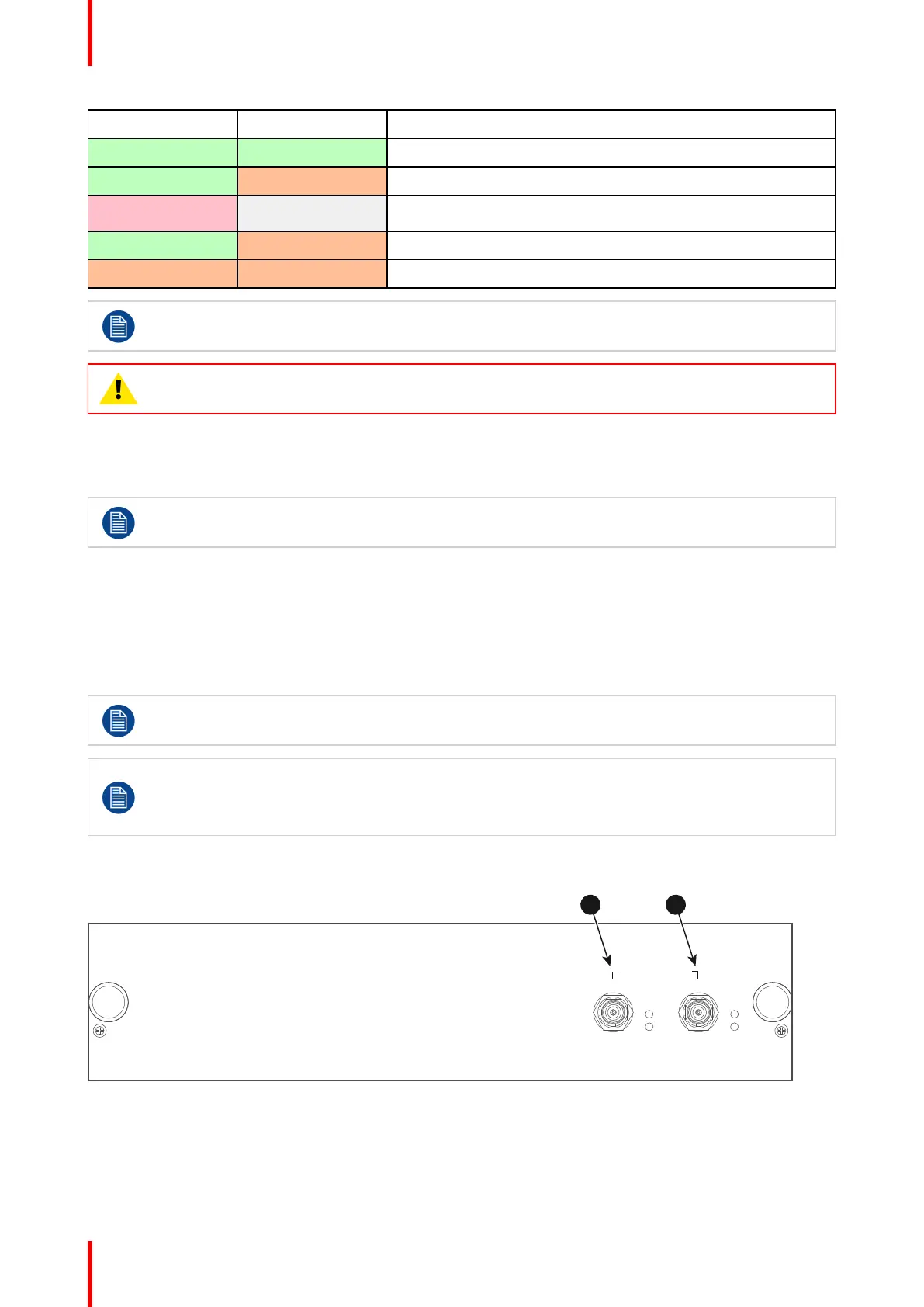

PWR/ERROR READY
ICMP(-X) Status
Green Green Applications started in normal mode
Green Orange Applications started in degraded mode
Blinking Red Off Security error
Green Blinking Orange Update ongoing
Orange Orange Update done
When installing a new ICP(-D) board in a DPxK-19B/23B/P projector the Spatial Color Calibration
file must be reloaded and activated.
CAUTION: Make sure not to short circuit the battery on the board. That will destroy the board
completely !
6.5 ICP-D HDMI 2.0 specifications
Only video data will be processed. Audio component from HDMI standard is not supported by ICP-
D.
HDMI 2.0 specifications
For the ICP-D HDMI 2.0 specifications, see “ICMP(-X) HDMI 2.0 specifications”, page 121.
6.6 HD-SDI Input Module (optional)
Not available for purchase at Barco for use in Taiwanese market.
Depending on the projector configuration the projector card cage is either equipped with an ICP(-D)
or ICMP(-X). In case an ICP(-D) is installed then an IMB, IMS, or HDSDI input module can be
optionally inserted into the slot below the ICP(-D). This is not the case if the ICMP(-X) is installed.
For more information about the ICMP(-X) see chapter called ICMP(-X).
Location of the source input ports
SMPTE 292/424 IN
A B
SEL
SYNC OK
SEL
SYNC OK
1 2
Image 6–5
1 SMPTE 292/424 input, port A (maximum cable length of 30 m allowed)
2 SMPTE 292/424 input, port B (maximum cable length of 30 m allowed)
Input & communication

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
