Barco DP2K-23B User Manual

131R5905753 /17 DPxK-19B/23B/P
E Power input 12 VDC, 1.5A
F RS232 port (sub-D)
G Ethernet port (RJ45)
CAUTION: For more information about the use of the Communicator Touch Panel, consult its user
guide.
8.2 Installation of the touch panel interface
Required tools
• 17 mm wrench
• 10 mm wrench
How to install the touch panel interface

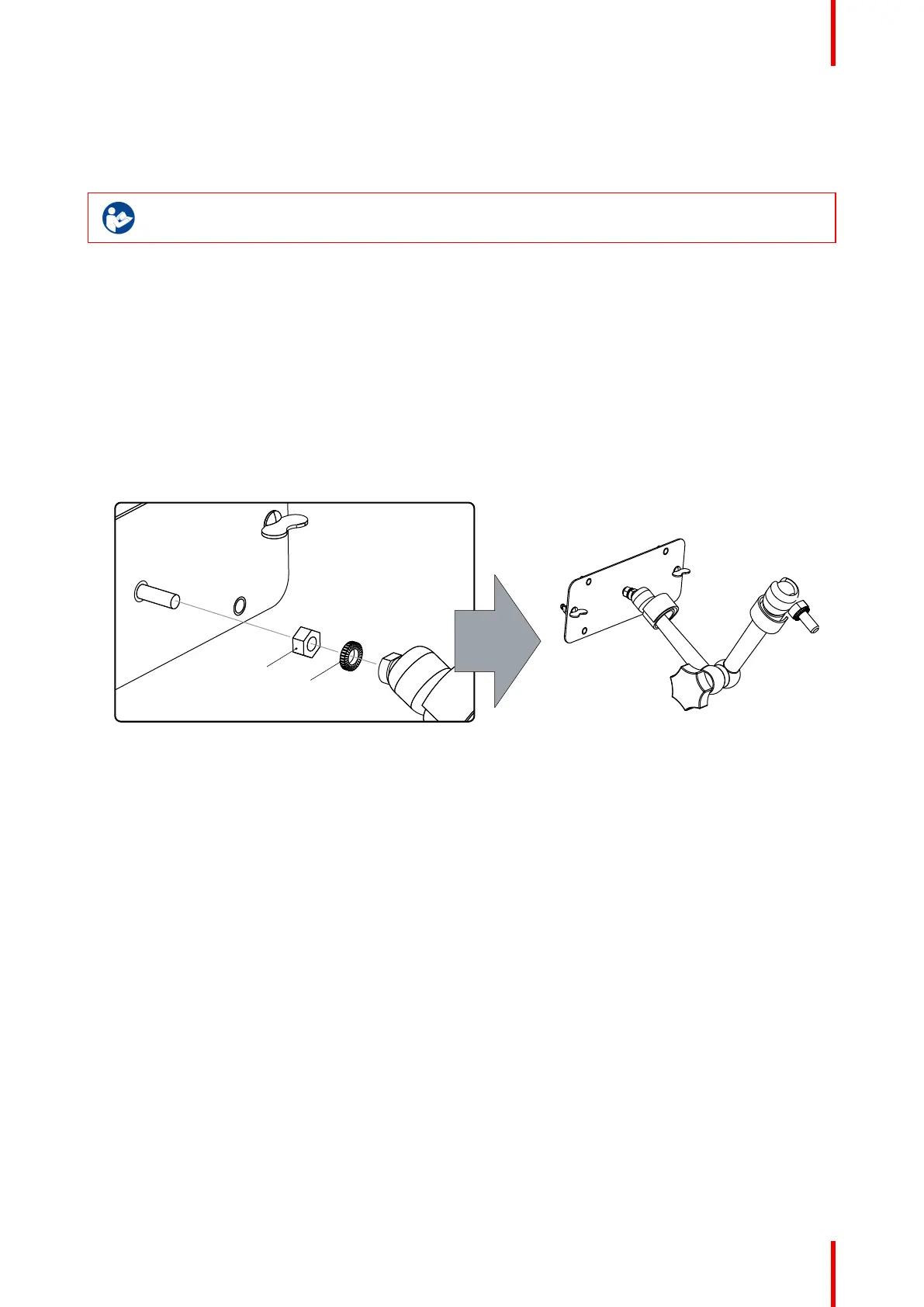

1. Assemble the mounting plate and the swivel arm together as illustrated. First place the nut (N) upon the
rod of the mounting plate, then add the lock washer (L), then fasten the mounting plate and the swivel arm
together. When the arm is mounted, turn nut (N) against the arm to secure the position.
N
L
Image 8–3 Assemble swivel arm
2. Slide a washer (M) over the base of the swivel arm and Insert the base of the swivel arm into the mounting
hole at the top of the DPxK-19B/23B/P as illustrated.
Communicator Touch Panel

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
