Barco DP2K-23B User Manual

R5905753 /17 DPxK-19B/23B/P62
5.3 Lens installation
How to install a lens?

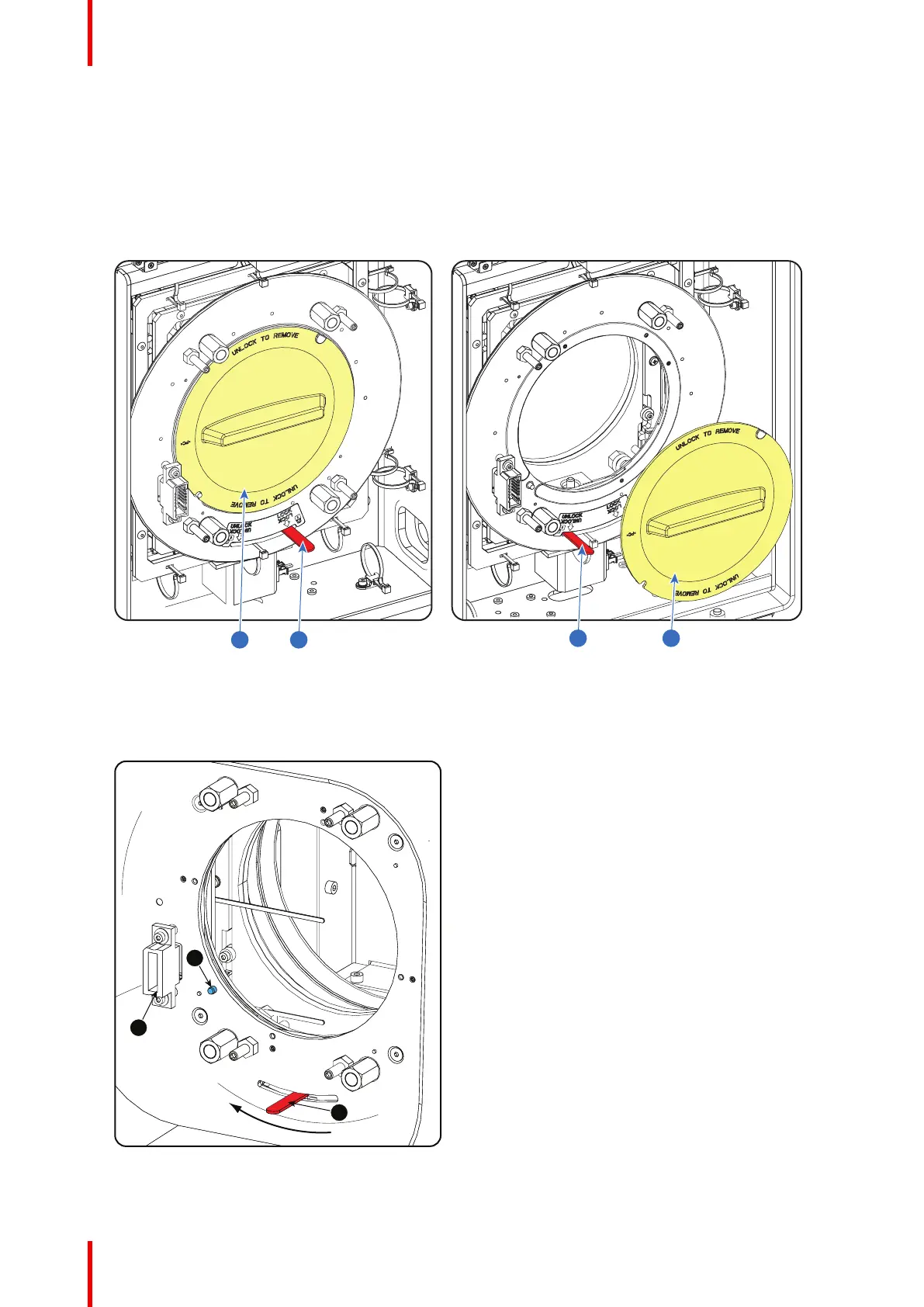

1. Remove the plastic lens holder cover.
1. Put the lock (1) into the unlock position.
2. Take out the plastic cover.
12
1 2
Image 5–2
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
3. Place the lens holder in the “unlocked” position by moving the lens lock handle (1) towards the lens power
supply socket (2).
1
2
3
Image 5–3 Unlock lens holder
4. Ensure that the lens holder stands in the On-Axis position (horizontal and vertical mid position).
Lenses & lens holder

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
