Barco DP2K-23B User Manual

R5905753 /17 DPxK-19B/23B/P162
1

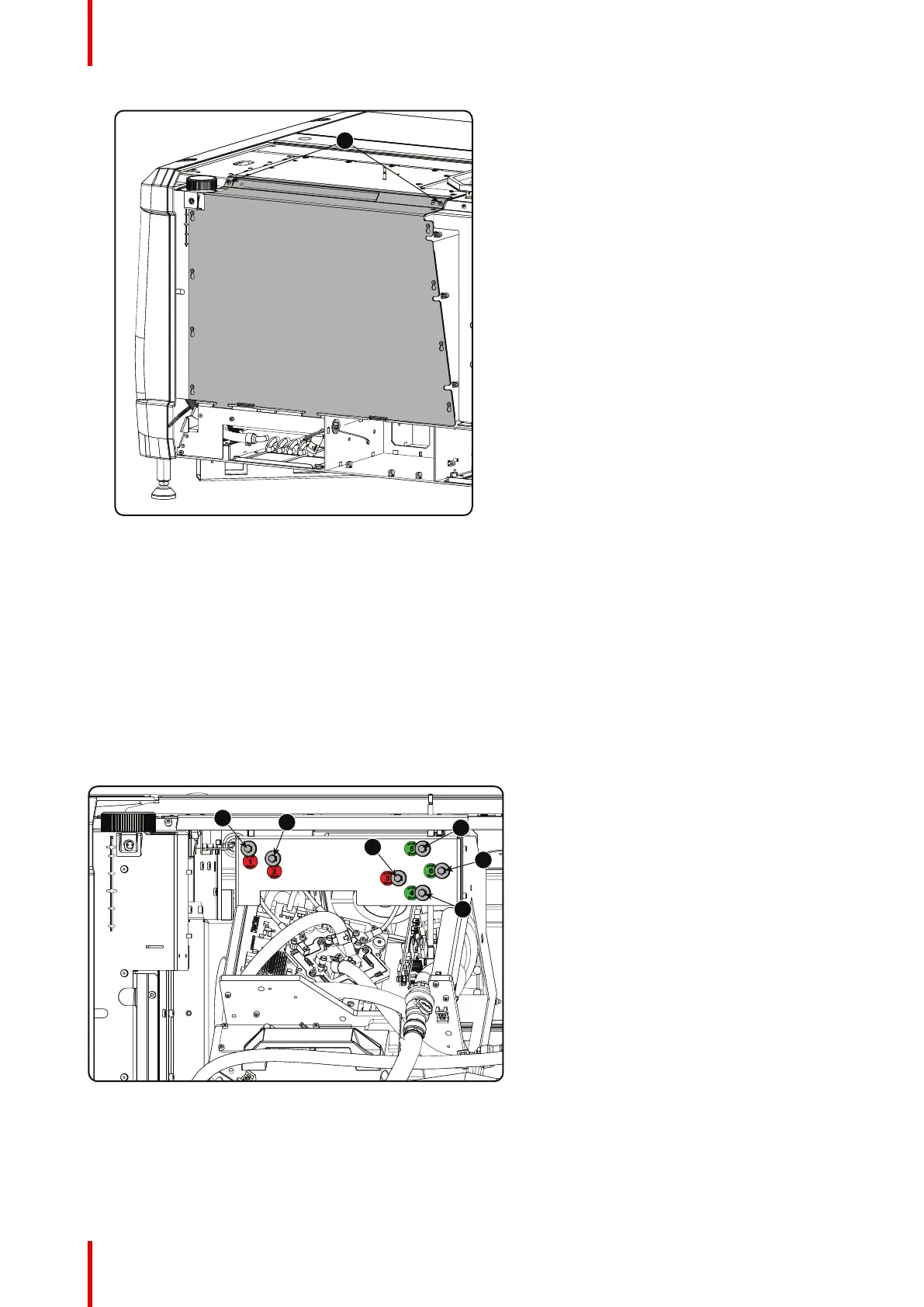

Image 12–4 Sealed cover, fixation
12.3 Convergence controls
Definitions-Abbreviations
• X: Horizontal direction on the screen, with origin in the centre of the screen and + to the right
• Y: Vertical direction on the screen, with origin in the centre of the screen and + to the top
• Z rotation: Tilting of the X and Y axes in their plane: + is clockwise rotation
• [1] ; [2] ; [3] ; [4] ; [5] ; [6] : these are the 6 adjustments available as they appear on the standard
convergence adjustment screen.
Convergence controls, location
1
2
3
4
5
6
Image 12–5 Convergence knobs
1 Red channel, knob number 1 (position of knob can slightly
differ)
2 Red channel, knob number 2
3 Red channel, knob number 3
4 Green channel, knob number 4
5 Green channel, knob number 5
6 Green channel, knob number 6
Convergence

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
