Barco DP2K-23B User Manual

35R5905753 /17 DPxK-19B/23B/P

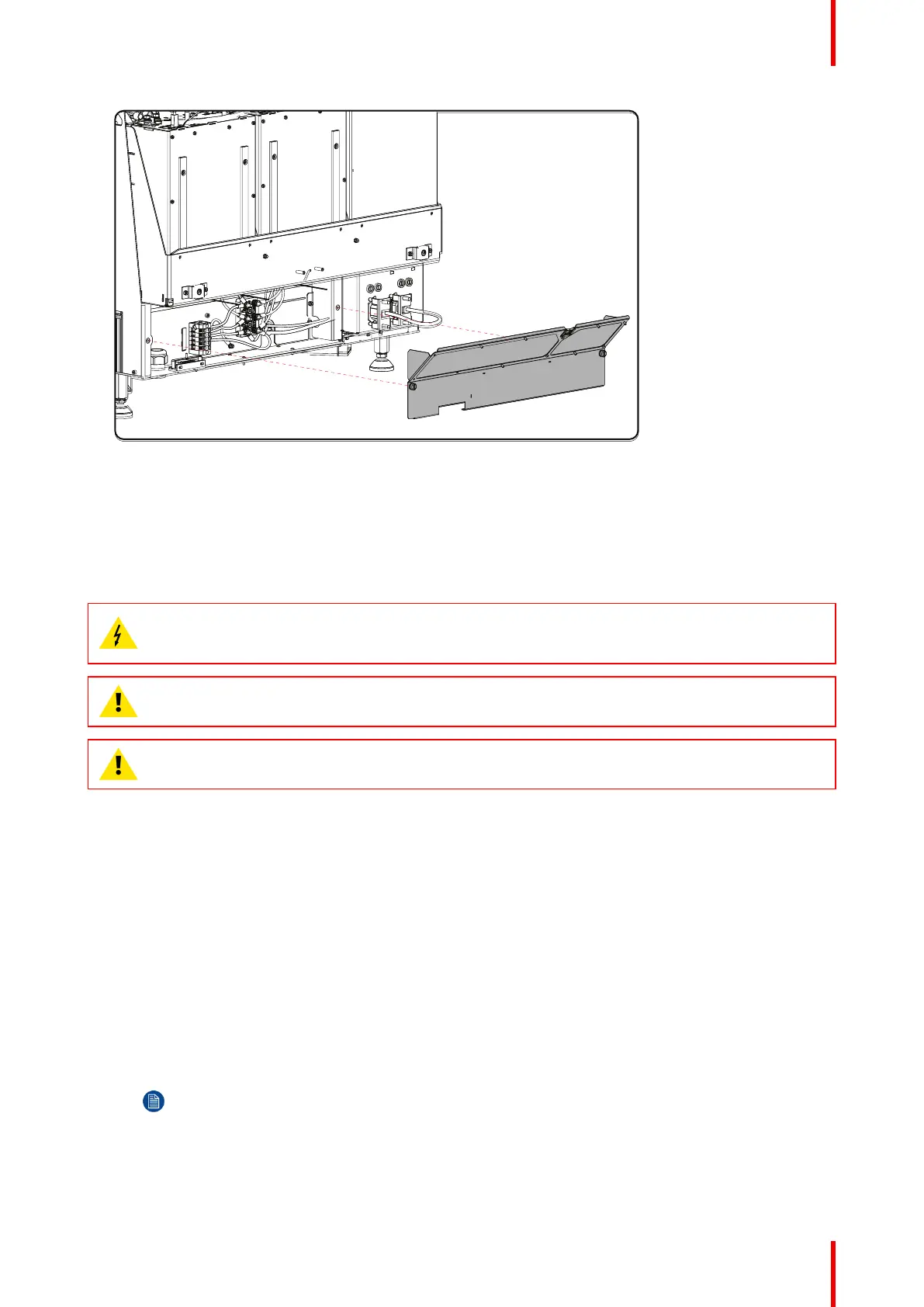

Image 3–9 Terminal strip accessible
The terminal strip and connection plate is accessible.
3.4 Connecting the DPxK-19B/23B/P with the
power net
WARNING: The total electrical installation should be protected by an appropriate rated and readily
accessible disconnect switch, circuit breakers and ground fault current interrupters. The installation
shall be done according to the local electrical installation codes.
WARNING: Make sure that the voltage range of projector matches with the voltage of the local
power net.
CAUTION: The cross-sectional area of the conductors in the Power Supply Cord shall be not less
than 4 mm
2
or AWG 10
Required tools
• Flat torque screw driver
• Adjustable wrench
Required parts
• Certified power supply cord 4.0 mm², 10AWG, min. 300V, diameter between 11 mm and 21 mm
• Circuit breaker maximum 40A
How to connect
1. Remove the back cover.
2. Remove the power input cover.
3. Loosen the cable gland fixation ring (1).
Note: The cable gland (1) is specified for cables with a diameter between 11mm and 21mm.
Physical installation

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
