CAUTION: The “LAMP INFO” parameters which are stored on a chip inside the Lamp House MUST
be updated after each installation of an xenon lamp inside the Lamp House. Neglecting this update
will result in poor performance and short life time of the xenon lamp.
A realignment of the xenon lamp in its reflector is required after the installation of the xenon lamp in
the Lamp House.
4.6 Installation of the Lamp House
WARNING: This procedure may only be performed by qualified technical service personnel.
CAUTION: Due to its high internal pressure, the lamp may explode in either hot or cold states if
improperly handled.
Required tools
10mm nut driver or flat screw driver.
How to install the Lamp House in the projector?

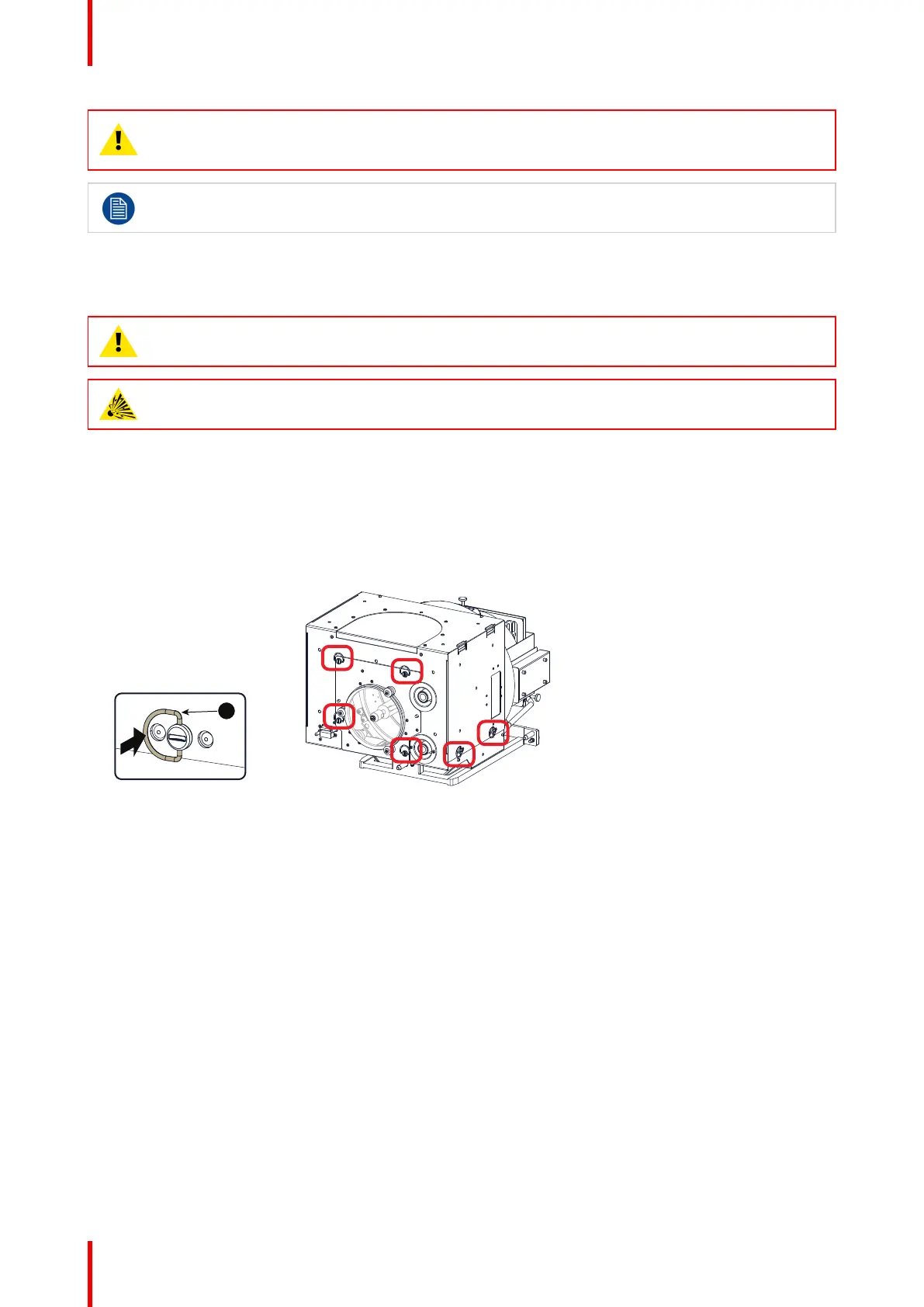

1. Check if the six quarter turn screws turning wires (reference 1Image 4–24) are flush with the cover or
interference will occur while inserting the Lamp House into the projector.
1
Image 4–24
2. Grip the Lamp House by both handles and place the front of the Lamp House on the base plate inside the
lamp compartment of the projector, lining up the foot of the Lamp House with the slots on the base.
3. Push the Lamp House fully into the slots.
4. Secure the Lamp House by fastening the two retaining screws (reference 1 Image 4–25) at the base of the
Lamp House.
5. Reinstall the cover of the Lamp House compartment.
Lamp & Lamp House

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
