Barco DP2K-23B User Manual

139R5905753 /17 DPxK-19B/23B/P
10.1 Removal of the lamp cover
Required tools
Flat screwdriver
How to remove

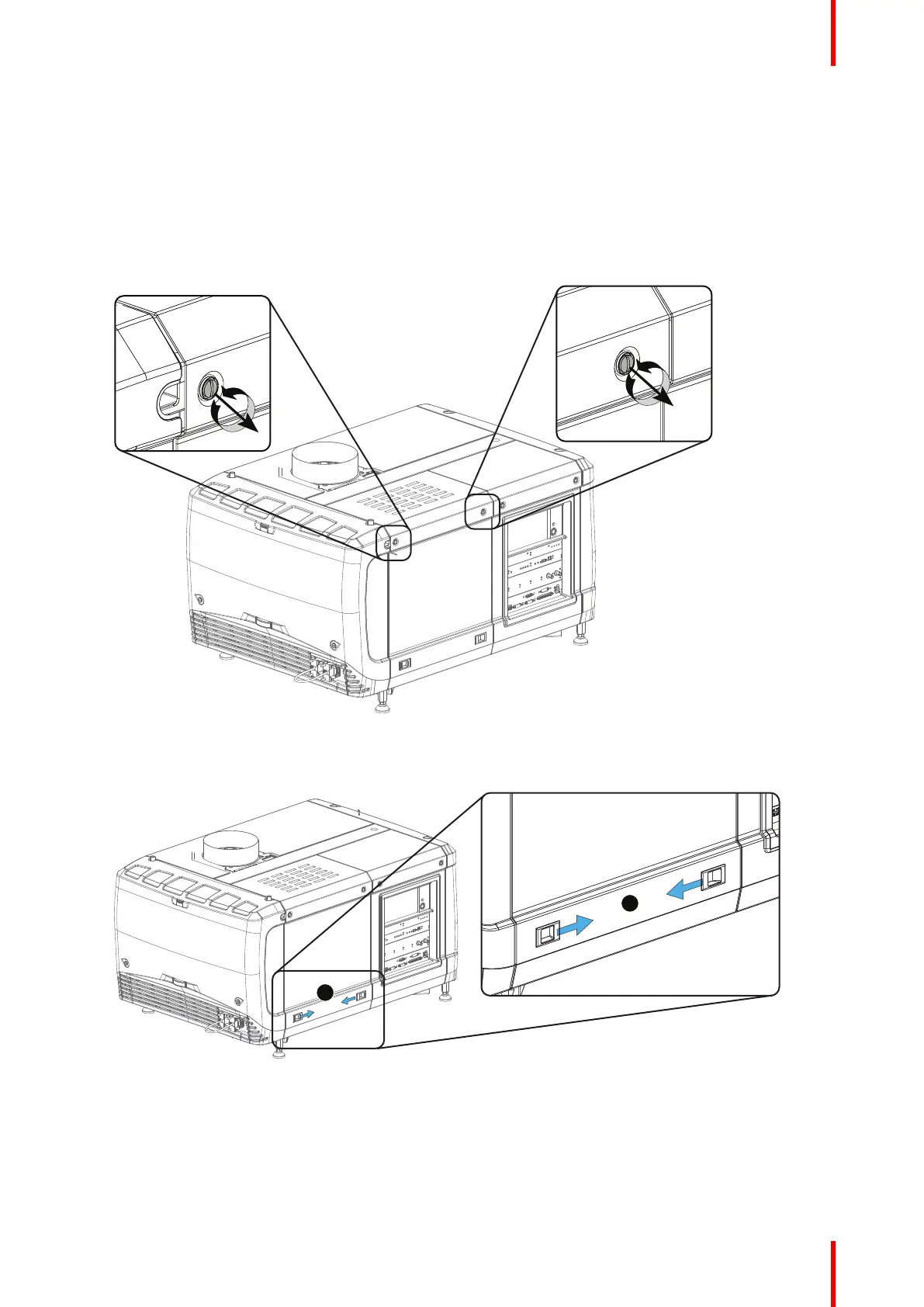

1. Release both captive screws on top of the lamp cover.
Image 10–2 Lamp cover, fasting screws
2. Push both lock to each other to release the locks and pull at the same time the bottom side of the cover
away form the projector.
1
1
Image 10–3 Lamp cover, locks
3. Take off the cover.
Removal and installation of the projector covers

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
