INSTRUCTIONS PERTAINING TO THE USER
4. CENTRAL HEATING (CH) AND DOMESTIC HOT WATER (D.H.W.) TEMPERATURE ADJUSTMENT
The CH ( ) and D.H.W. ( ) temperature adjustment are carried out by pressing the relative +/- buttons (gure 1).
When the burner is lighted the display shows the symbol ( ).
CENTRAL HEATING (CH)
The system must be equipped with a room thermostat (see the relevant regulations) to control the temperature in the rooms.
During a CH mode, the display shows a CH ( ) blinking symbol and the CH ow temperature value (°C).
DOMESTIC HOT WATER (D.H.W.)
During a D.H.W. request, the display shows a D.H.W. ( ) blinking symbol and the D.H.W. ow temperature value (°C).
There are two different setpoint which can be quickly set: ECO and COMFORT.
To adjust the temperature values, proceed as follows:
ECO
The ECO temperature setpoint allows the user to quickly set the relative domestic hot water temperature pressing the
P button. In eco function the display reads out “eco”. To set the ECO temperature setpoint press the +/- buttons.
COMFORT
The COMFORT temperature setpoint allow the user to quickly set the relative domestic hot water temperature pressing
the P button. To set the COMFORT temperature setpoint press the +/- buttons.
Note: during a D.H.W. demand, with a D.H.W. storage tank connected to the gas boiler, the display shows the ( ) symbol
and the flow tank temperature value.
3.1 SYMBOL MEANING

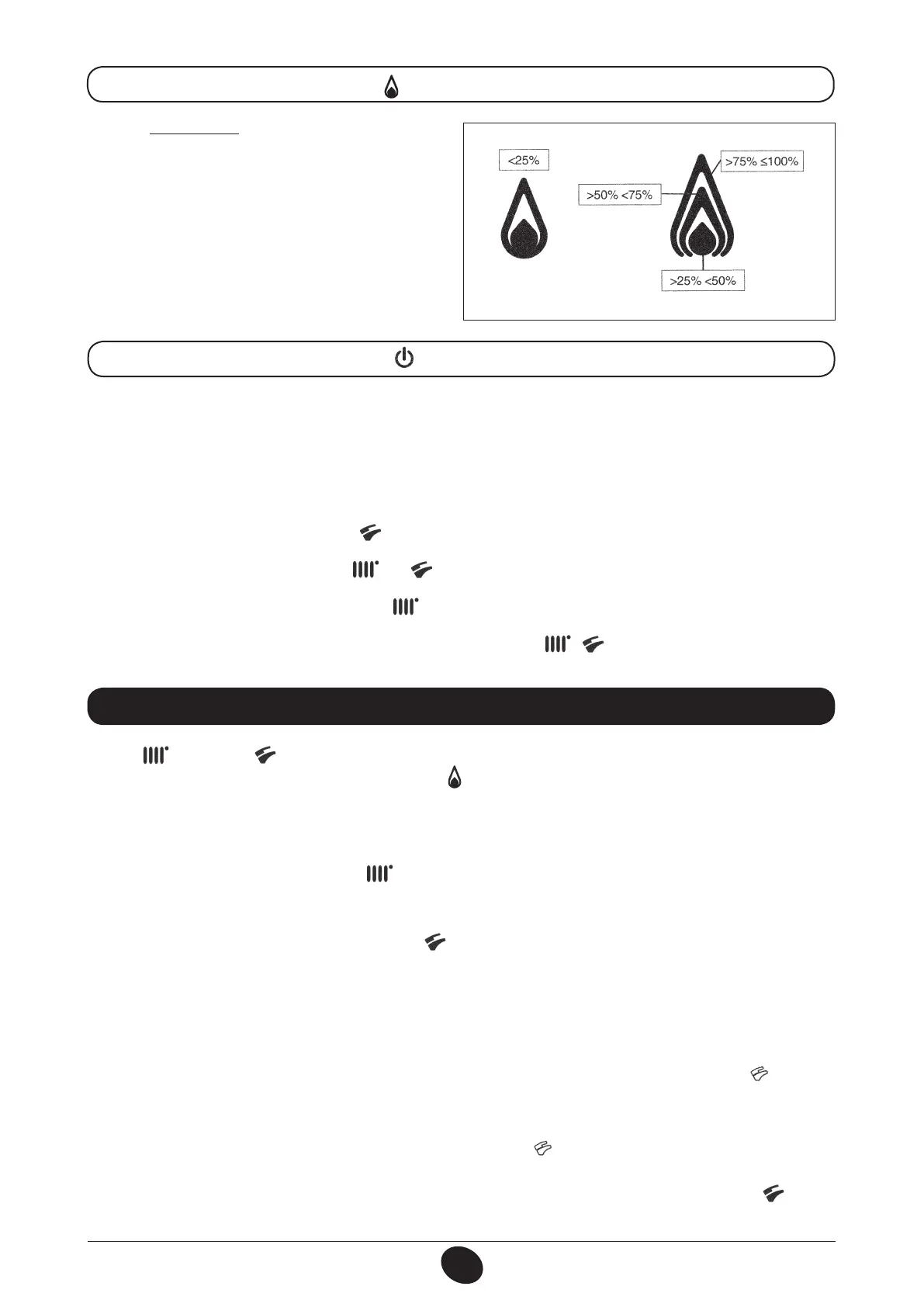

There are 4 power levels displayed during boiler operation
regarding the gas boiler modulation, as shown in gure 2:
0605_1101
Figure 2
3.2 DESCRIPTION OF BUTTON (SUMMER - WINTER - HEATING ONLY - OFF)
Press this button to set the following boiler operating modes:
• SUMMER
• WINTER
• HEATING ONLY
• OFF
In the SUMMER mode, the display shows ( ). The boiler satises requests for DHW only while central heating is NOT
enabled (ambient frost protection function active).
In the WINTER mode, the display shows ( and ). The boiler satises requests for both DHW and central heating
(ambient frost protection function active).
In the HEATING ONLY mode, the display shows ( ). The boiler satises requests for central heating only (ambient frost
protection function active).
In the OFF mode, the display shows neither of the above two symbols ( ) ( ). In this mode only the ambient frost
protection function is enabled, any other request for DHW or heating is not satised.
