INSTRUCTIONS PERTAINING TO THE INSTALLER
To clean the DHW system it is not necessary to remove the DHW heat exchanger if the assembly is equipped with the
appropriate taps (supplied on demand) placed on the hot water outlet and inlet.
To carry out the purge it is necessary to:
• close the cold water inlet
• drain the DHW system from the water contained therein by means of a hot water tap
• close the DHW outlet
• unscrew the two stop cocks caps
• remove the lters.
In case the appropriate tap is not supplied it is necessary to disassemble the DHW heat exchanger, as described in the fol-
lowing section, and do the purge aside. We recommend you also purge from limestone deposits the DHW heat exchanger
seat and the NTC sensor tted on the DHW system.
To purge the exchanger and/or the DHW system we suggest the use of Cillit FFW-AL or Beckinser HF-AL.
27. HOW TO PURGE THE DHW SYSTEM FROM LIMESTONE DEPOSITS
The stainless steel plate-type DHW heat exchanger is easily disassembled with a screwdriver by operating as described
below:
• drain, if possible, only the boiler system, through the drain tap;
• drain the DHW system from water;
• remove the two screws (right in front of you) securing the DHW heat exchanger and pull it off its seat (gure 15).
28. HOW TO DISASSEMBLE THE DHW HEAT EXCHANGER
The boiler is equipped with a cold water lter placed on the hydraulic assembly. To clean it do the following:
• drain the DHW system from water;
• unscrew the nut on the ow sensing assembly (Figure 15);
• pull out the ow sensing device and its lter;
• remove the impurities.
Important: in the event of replacements and/or cleaning of the O-rings on the hydraulic unit, do not use oil or grease as
lubricant but exclusively Molykote 111.
29. CLEANING THE COLD WATER FILTER
0610_2701 / CG_1839

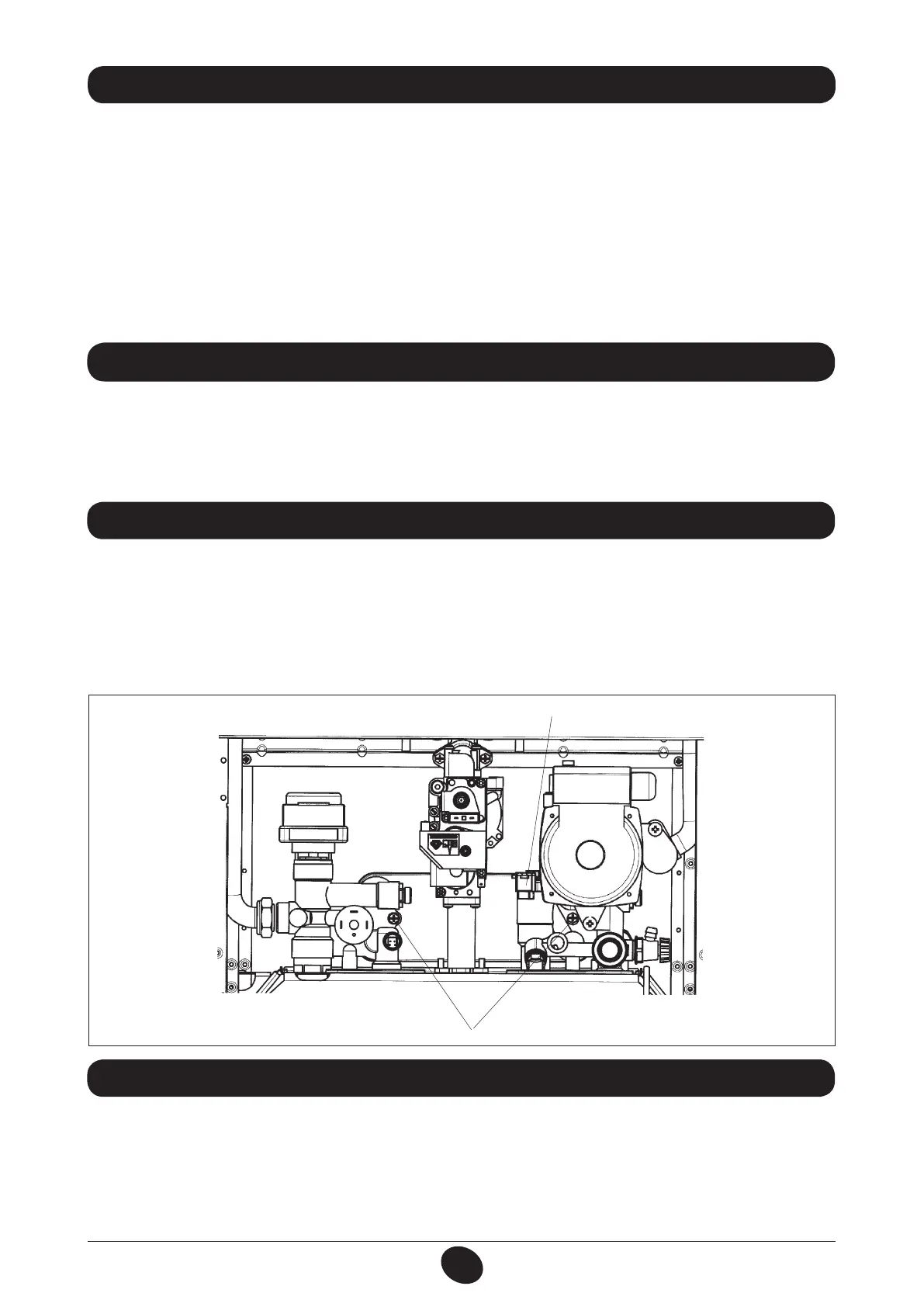

Figure 15
DHW heat exchanger securing screws
ow sensing securing nut
30. DISMANTLING, DISPOSAL AND RECYCLING
WARNING: only qualied technicians are authorised to service the device and system.
Before dismantling the appliance, make sure to have cut out the power supply, closed the gas inlet valve and secured all
the boiler and system connections.
Dispose of the appliance correctly according to the laws and regulations in force. The appliance and accessories cannot
be discarded along with normal household waste.
More than 90% of the materials that make up the appliance are recyclable.
