INSTRUCTIONS PERTAINING TO THE INSTALLER
24. CONNECTION OF THE EXTERNAL PROBE
Kt curves
Graph 2
TM = ow temperature (°C)
Te = external temperature (°C)
0603_0305 0603_0306
Graph 3

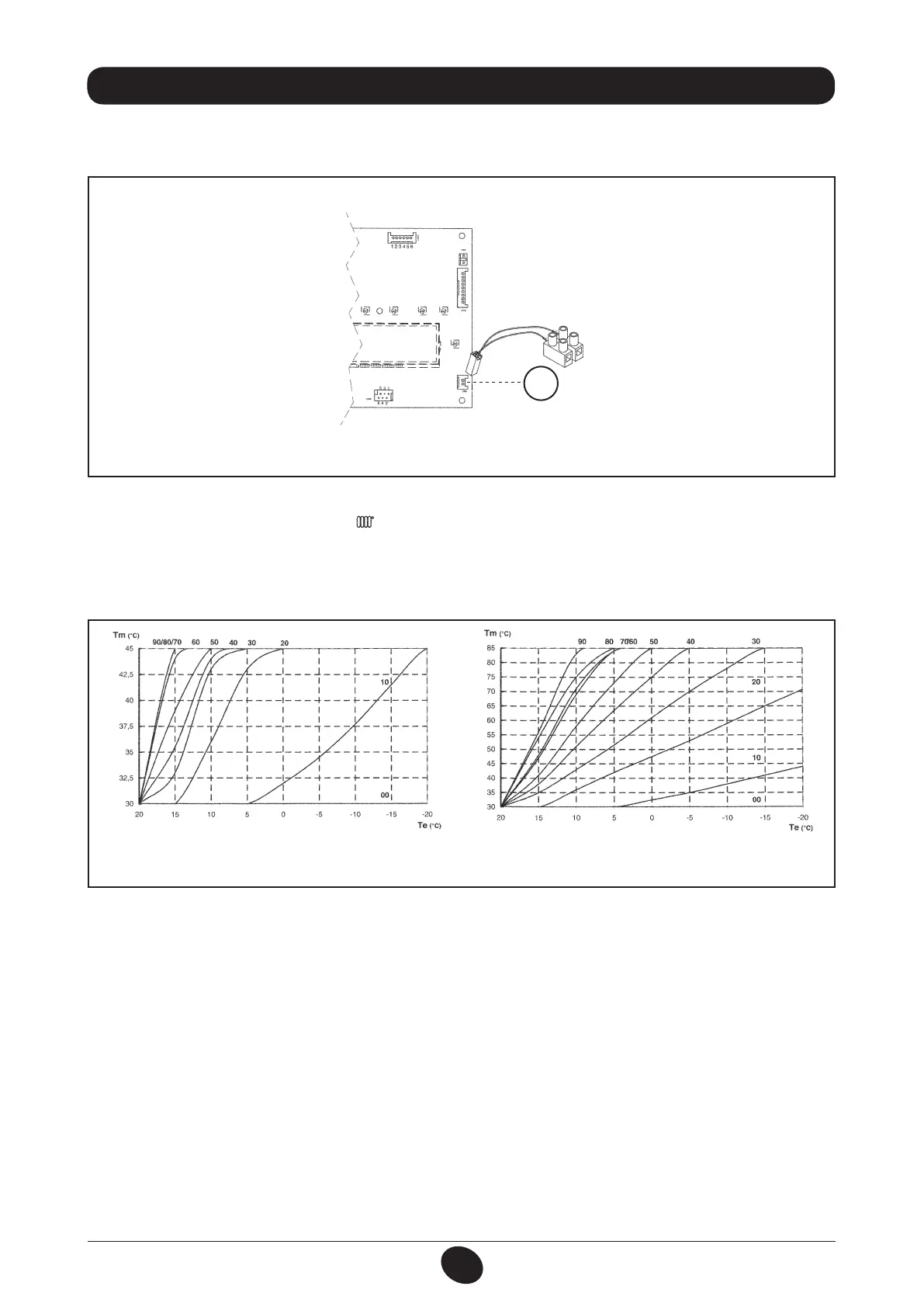

The boiler is prearranged for connection of an external probe (supplied as accessory).
For the connection, refer to the gure below and the instructions supplied with the probe.
When the external probe is connected, the heating circuit temperature control device regulates the dispersal coefcient
Kt. To set the curves (0…90) press the +/- buttons.
NOTE: the maximum value of the ow temperature TM depends on the F16 parameter setting (see section 19). The
maximum ow temperature it may 85° or 45°C.
Figure 11
0610_1301 / CG_1855
CN 5
