3-51
Confidential

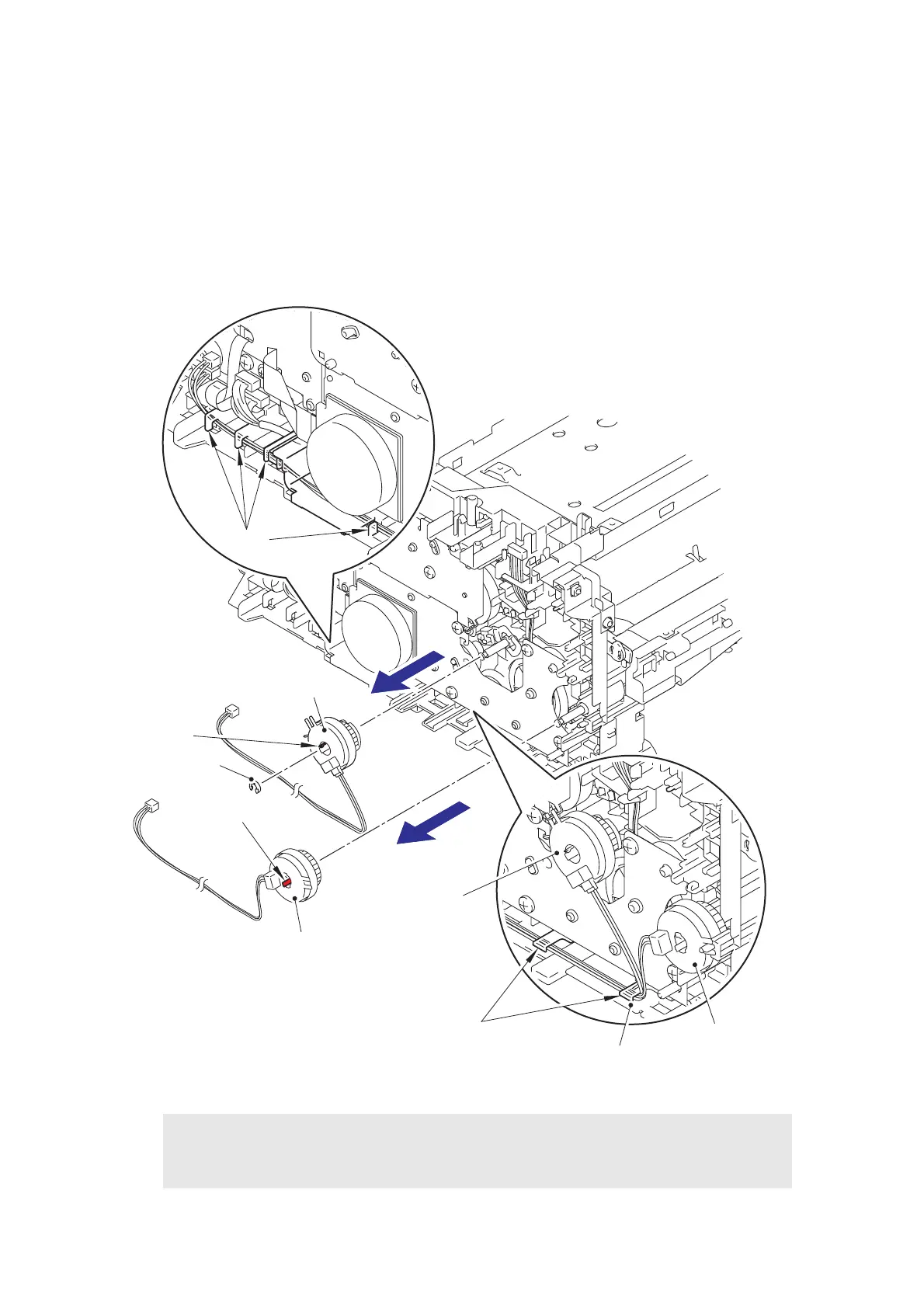

9.21 T1 Clutch ASSY, REG Clutch ASSY
(1) Remove the Harness of the T1 clutch ASSY and the REG clutch ASSY from the Guides
of the Main frame L ASSY.
(2) Release the Hook to remove the T1 clutch ASSY.
(3) Remove the retaining ring.
(4) Release the hook to remove the REG clutch ASSY.
Fig. 3-50
Assembling Note:
• When wiring the Harnesses of the T1 clutch ASSY and the REG clutch ASSY to the
Guides of the Main frame L ASSY, check that there is no slack in the Harnesses.
Guides
REG clutch ASSY
T1 clutch ASSY
T1 clutch ASSY
REG clutch ASSY
Guides
Hook
Hook
Main frame L ASSY
Retaining ring

Brother HL-2230 Specifications

General

Network ready	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Custom media width	76.2 - 220 mm
Maximum print size	216 x 356 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Windows operating systems supported	Yes
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.9 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	65 W
Package weight	8000 g
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Server 2003, Server 2003 x64 Edition, Vista, Server 2008, Server 2008 R2, Windows 7 Mac OS X 10.4.11, 10.5.x, 10.6.x
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Interactive Help

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
