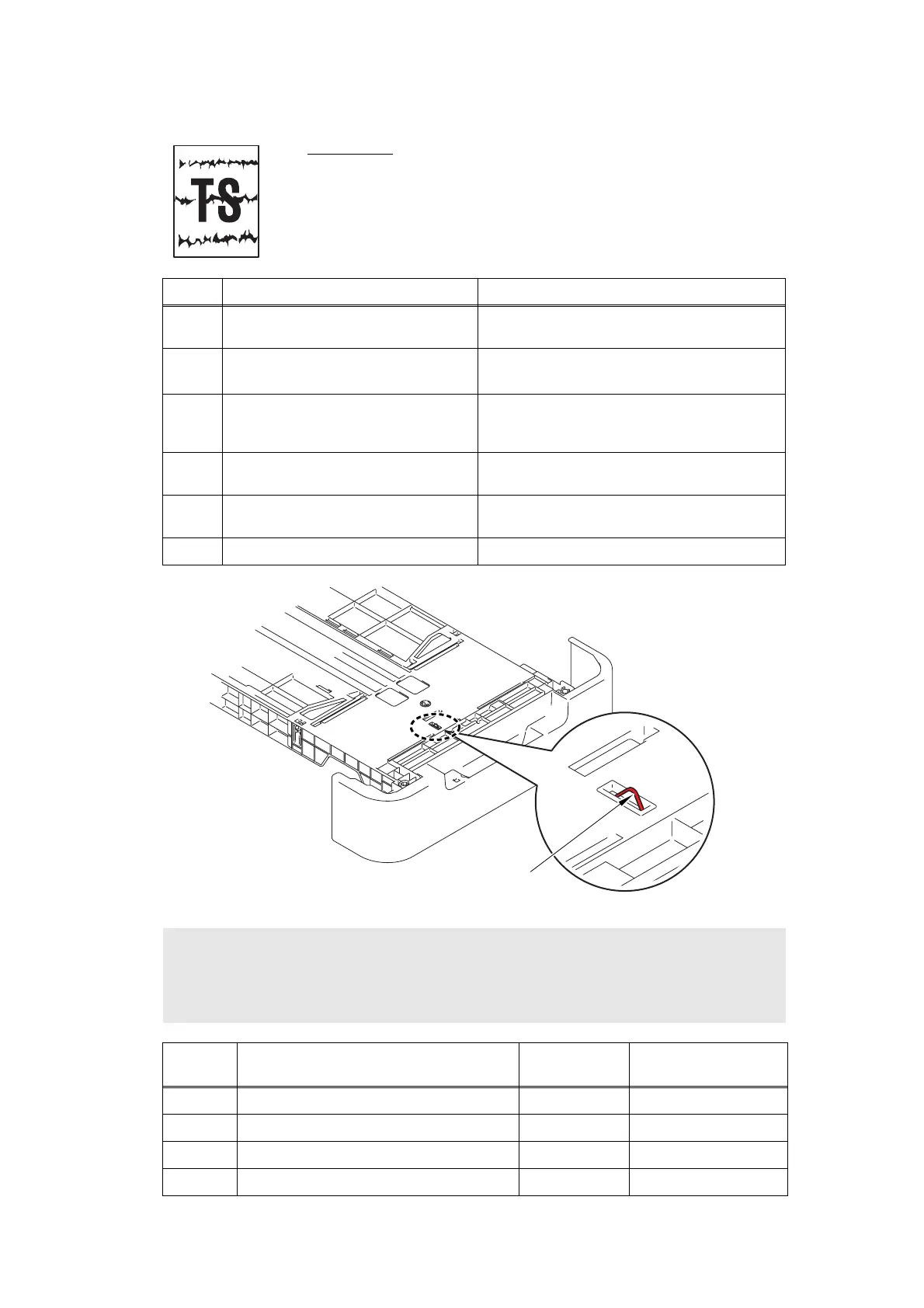

4.2.11 Black horizontal stripes
Fig. 2-10
User Check
• Clean the inside of the printer and the corona wire in the drum unit.
• When the horizontal stripes at 94.2 mm are intervals, replace the
drum unit with a new one.
• The paper tray ground terminal provided in the printer body may be
dirty. Clean the contact with a dry cloth.
Step Cause Remedy
1
Dirt on the electrodes of the drum
unit and the printer body
Clean the electrodes of the drum unit and
printer body. (Refer to Fig. 2-8, Fig. 2-9.)
2
Bend of tray ground spring (1)
Correct bending of the tray ground spring .
(2) Replace the paper tray.
3
Toner attached on the develop
roller (horizontal stripes at 32.5
mm)
This problem will disappear by printing
approximate 10 pages. If the same problem
occurs, replace the toner cartridge.
4
Scratch and Dirt on the heat roller
(horizontal stripes at 53.4 mm)
Replace the fuser unit.
5
High voltage power supply PCB
ASSY failure
Replace the high voltage power supply
PCB ASSY.
6 Main PCB failure Replace the main PCB ASSY.
CAUTION :
• Image defects which appear periodically may be caused by failure of a roller. Specify
the cause referring to the diameter of the rollers or pitch which appears in the image as
shown in the table below
No. Parts name
Diameter
The pitch which
appears in the image
1 Develop roller
Ø16 mm 32.5 mm
2 Exposure drum
Ø30 mm 94.2 mm
3 Heat roller in the fuser unit
Ø17 mm 53.4 mm
4 Pressure roller in the fuser unit
Ø25 mm 78.5 mm
Bottom surface of Paper tray
Paper tray ground terminal

Brother HL-2230 Specifications

General

Network ready	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Custom media width	76.2 - 220 mm
Maximum print size	216 x 356 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Windows operating systems supported	Yes
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.9 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	65 W
Package weight	8000 g
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Server 2003, Server 2003 x64 Edition, Vista, Server 2008, Server 2008 R2, Windows 7 Mac OS X 10.4.11, 10.5.x, 10.6.x
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Interactive Help

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
