9.6 Front Cover ASSY, Support Flap 1
(1) Open the Front cover ASSY.
(2) Release the Hooks of the Develop joint link to remove the Develop joint link from the
Front cover ASSY.
(3) Pull up the Rib of the Front chute ASSY to the direction of the arrow 3a, and silid the
Front cover ASSY to the direction of the arrow 3b and 3c, and remove it.

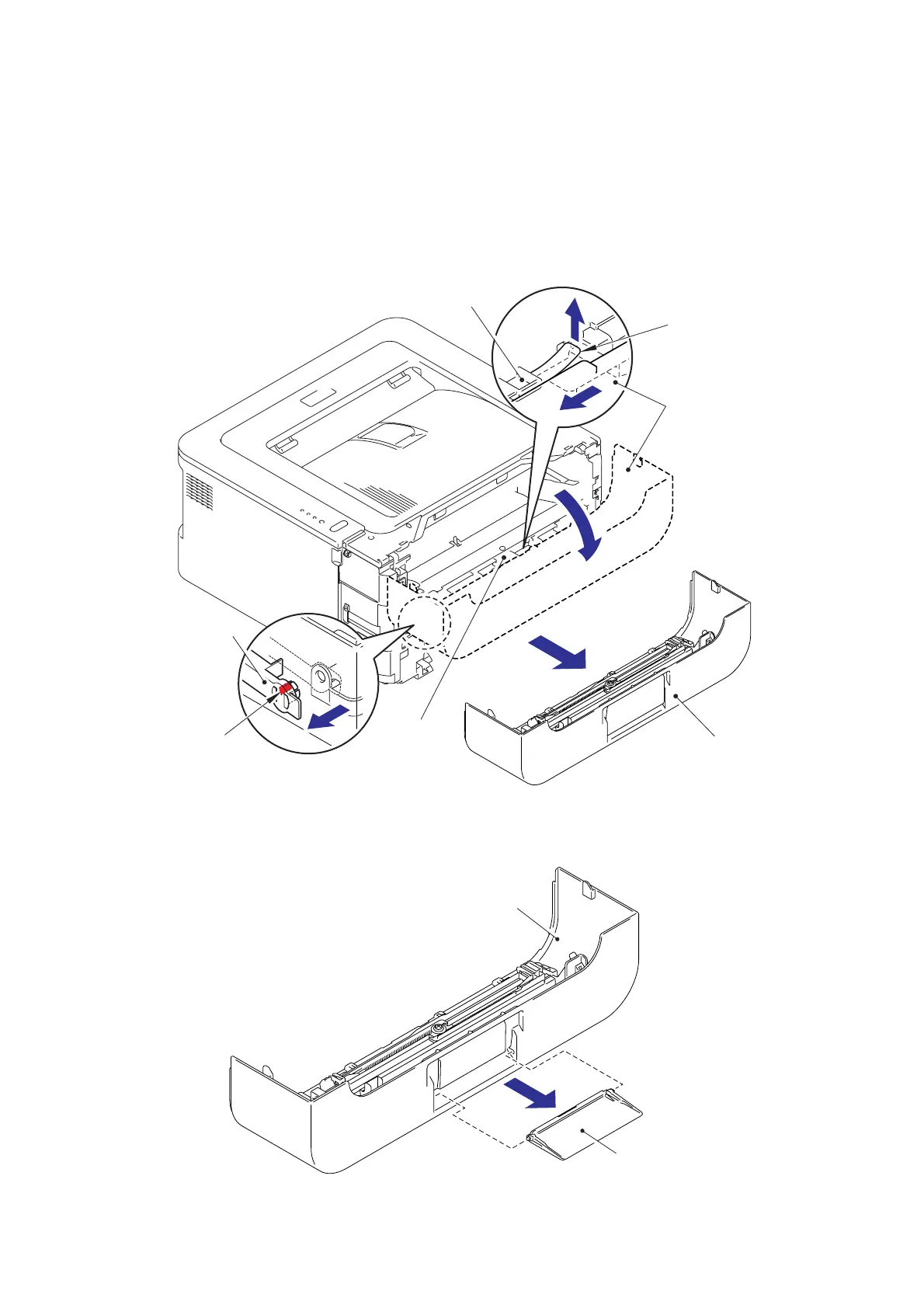

Fig. 3-22
(4) Remove the Support flap 1 from the Front cover ASSY.
Fig. 3-23
Front cover ASSY
Develop joint link
Front cover ASSY
Front chute
ASSY
Front chute ASSY
Rib
Hook
3c
3b
1
2
3a
Support flap 1
Front cover ASSY
