Brother HL-2230 User Manual

App. 3-1
Confidential
APPENDIX 3 INSTALLING THE MAINTENANCE PRINTER DRIVER
To identify terminals connected via USB interface, the PC requires the corresponding
virtual USB devices to be implemented by driver. If you connect any number of the printer
to your PC, therefore, the same number of virtual USB devices will be automatically
configured on your PC. To prevent virtual USB devices from being configured limitlessly,
use the unique driver installation procedure described below that enables your PC to
identify terminals via single virtual USB device.
(1) Check that the power switch of the printer is turned off. Disconnect the USB cable that
connects the printer with PC.
(2) Turn on your PC.
(3) Open the front cover, and turn the power supply of the printer on while holding down
the [Go] button. Make sure that the Toner/Drum/Error LED lights up.
(4) Release the [Go] button, and then make sure that all LEDs are off.
(5) Press the [Go] button for the 2 seconds, and the Error LED lights up.
(6) Click the “maintenance.exe” of the Printer Maintenance Driver which has been copied
in the “hl2200” folder to start.

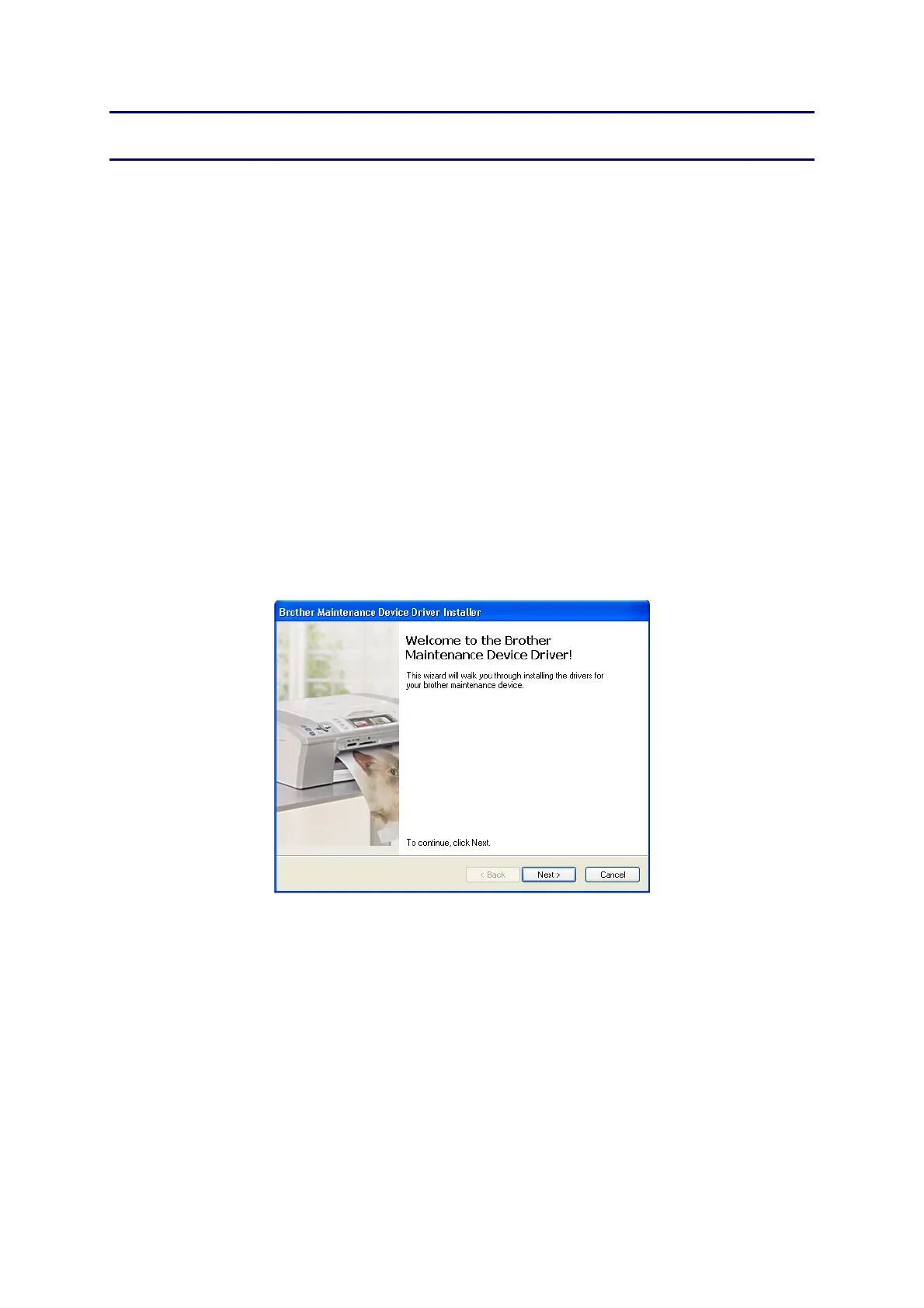

(7) The following screen appears, indicating the detection of device installation wizard.
Click Next to proceed.

Brother HL-2230 Specifications

General

Network ready	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Custom media width	76.2 - 220 mm
Maximum print size	216 x 356 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Windows operating systems supported	Yes
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.9 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	65 W
Package weight	8000 g
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Server 2003, Server 2003 x64 Edition, Vista, Server 2008, Server 2008 R2, Windows 7 Mac OS X 10.4.11, 10.5.x, 10.6.x
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Interactive Help

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
