Brother HL-2230 User Manual

4-3
Confidential
1.2 Setting the default paper size
<Procedures>
(1) Open the front cover, and turn the power supply of the printer on while pressing down
the [Go] button. Make sure that the Toner/Drum/Error LED light up.
(2) Release the [Go] button, and then make sure that all LEDs light off.
(3) Press the [Go] button for over 2 seconds, and the Error LED light up. And then the
printer goes into the PIT3 mode.
(4) Connect the printer to PC with USB cable.

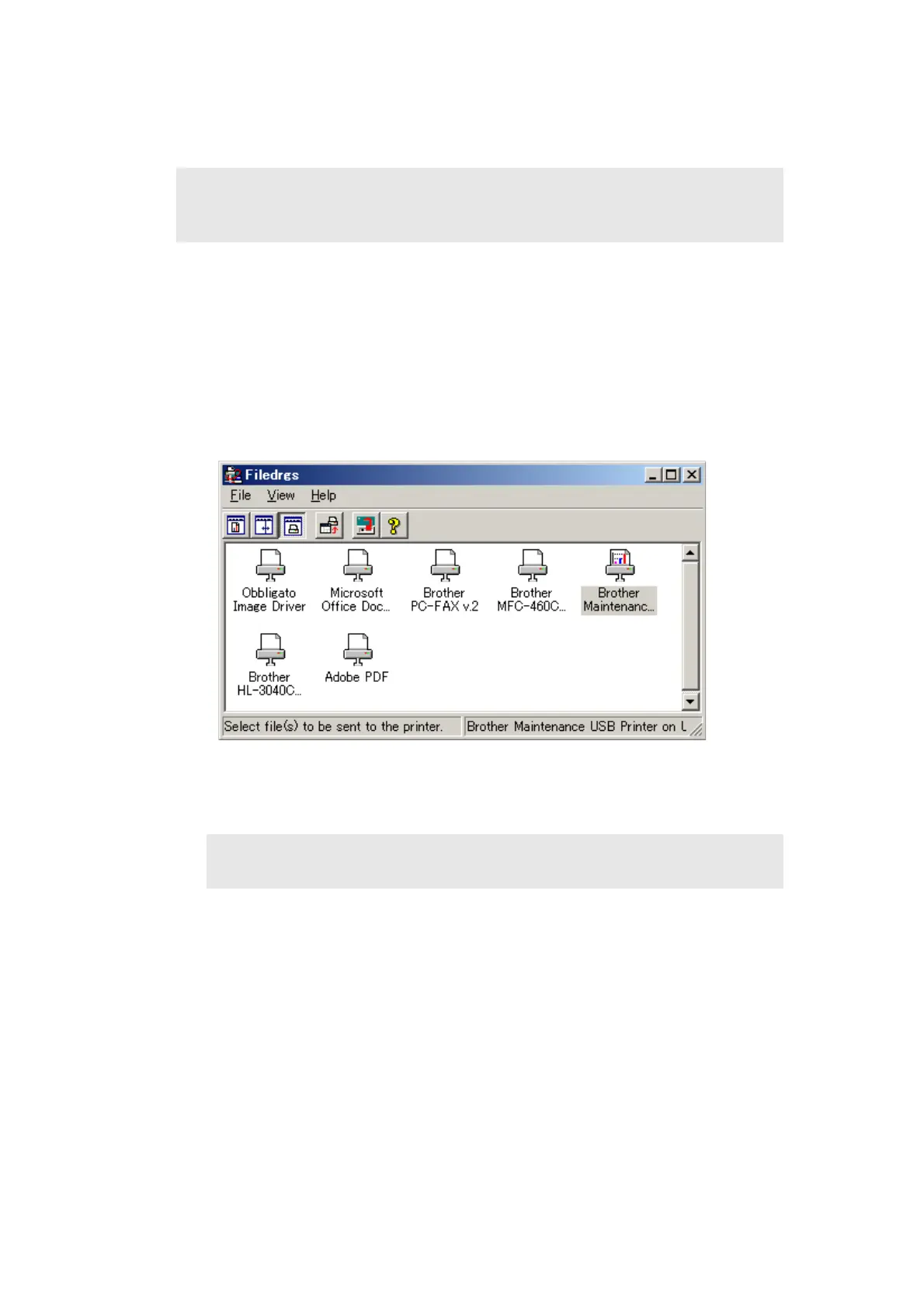

(5) Double-click the "FILEDG32.EXE" on PC to start. The following screen appears.
Select the "Brother Maintenance USB Printer".
(6) Drag "DefaultPaperA4.pjl" (A4 size), "DefaultPaperLtr.pjl" (Letter size) or
"DefaultPaperIsr.pjl" (A4 size, Israel font for Israel) and drop it onto the Brother
Maintenance USB Printer icon.
Note :
• The maintenance driver must have been installed. (Refer to "APPENDIX 3
INSTALLING THE MAINTENANCE PRINTER DRIVER".)
Note :
• The default setting of the new supply main PCB is A4 size.

Brother HL-2230 Specifications

General

Network ready	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Custom media width	76.2 - 220 mm
Maximum print size	216 x 356 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Windows operating systems supported	Yes
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.9 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	65 W
Package weight	8000 g
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Server 2003, Server 2003 x64 Edition, Vista, Server 2008, Server 2008 R2, Windows 7 Mac OS X 10.4.11, 10.5.x, 10.6.x
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Interactive Help

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
