Brother HL-2230 User Manual

2-37
Confidential

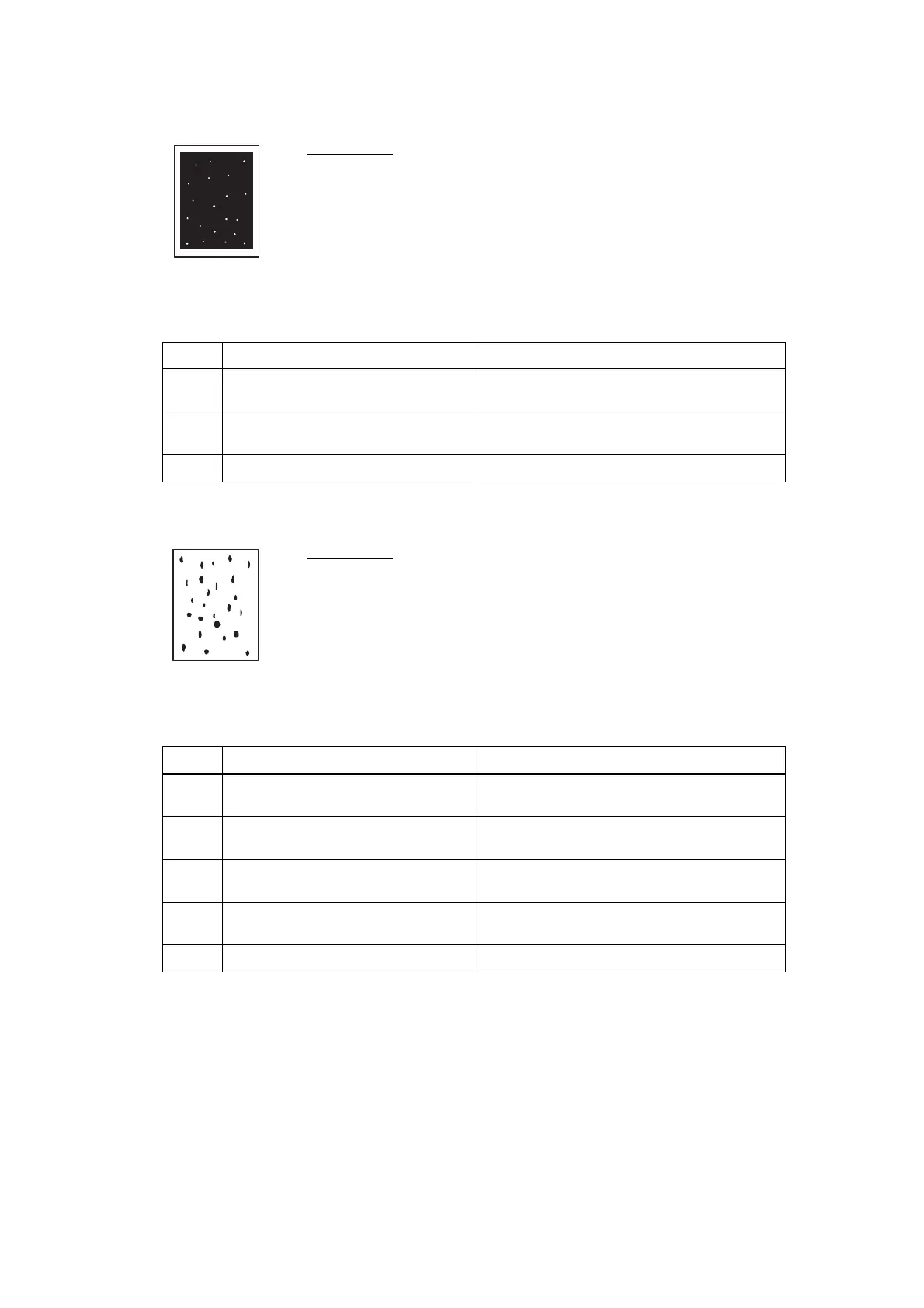

4.2.15 White spots
4.2.16 Black spots
User Check
• When the white spots at 32.5 mm are intervals, replace the toner
cartridge with a new one.
• If the same problem occurs after printing a few pages, the adhesive
of the label or the like, paper powder or dirt may be attached on the
surface of the exposure drum. Wipe off the dirt on the exposure
drum. (Refer to User’s guide, and perform the Drum Cleaning.)
• When the white spots at 94.2 mm are intervals, replace the drum
unit with a new one.
Step Cause Remedy
1
Dirt on the electrodes of the drum
unit and the printer body
Clean the electrodes of the drum unit and
printer body. (Refer to Fig. 2-8, Fig. 2-9.)
2
High voltage power supply PCB
ASSY failure
Replace the high voltage power supply
PCB ASSY.
3 Main PCB failure Replace the main PCB ASSY.
User Check
• When the black spots at 32.5 mm are intervals, replace the toner
cartridge with a new one.
• If the same problem occurs after printing a few pages, the adhesive
of the label or the like, paper powder or dirt may be attached on the
surface of the exposure drum. Wipe off the dirt on the exposure
drum. (Refer to User’s guide, and perform the Drum Cleaning.)
• When the black spots at 94.2 mm are intervals, replace the drum
unit with a new one.
Step Cause Remedy
1
Dirt on the electrodes of the drum
unit and the printer body
Clean the electrodes of the drum unit and
printer body. (Refer to Fig. 2-8, Fig. 2-9.)
2
Dirt on the heat roller Refer to “2-34 How to clean the heat roller”,
and clean the heat roller.
3
Scratch and Dirt on the heat roller
(Black spots at 53.4 mm)
Replace the fuser unit.
4
High voltage power supply PCB
ASSY failure
Replace the high voltage power supply
PCB ASSY.
5 Main PCB failure Replace the main PCB ASSY.

Brother HL-2230 Specifications

General

Network ready	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	24 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Sound power level (standby)	31 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	- sheets
Custom media width	76.2 - 220 mm
Maximum print size	216 x 356 mm
Custom media length	116 - 406.4 mm
Paper tray media types	Bond paper, Plain paper, Pre-Printed
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
Windows operating systems supported	Yes
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.9 W
Power consumption (printing)	495 W
Power consumption (PowerSave)	65 W
Package weight	8000 g
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP Professional x64 Edition, Server 2003, Server 2003 x64 Edition, Vista, Server 2008, Server 2008 R2, Windows 7 Mac OS X 10.4.11, 10.5.x, 10.6.x
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80 %
Bundled software	Interactive Help

Weight and Dimensions

Dimensions (WxDxH)	368 x 360 x 183 mm
