ASSEMBLY AND CONNECTIONS
2 - 11
BHL-FB-MFC-5100C-FM5.5
■ Do not throw way the white shipping cover. You will need it for future
transportation.
We recommend that you install the ink cartridges from left to right in this order:
Black, Cyan, Yellow, Magenta.
6

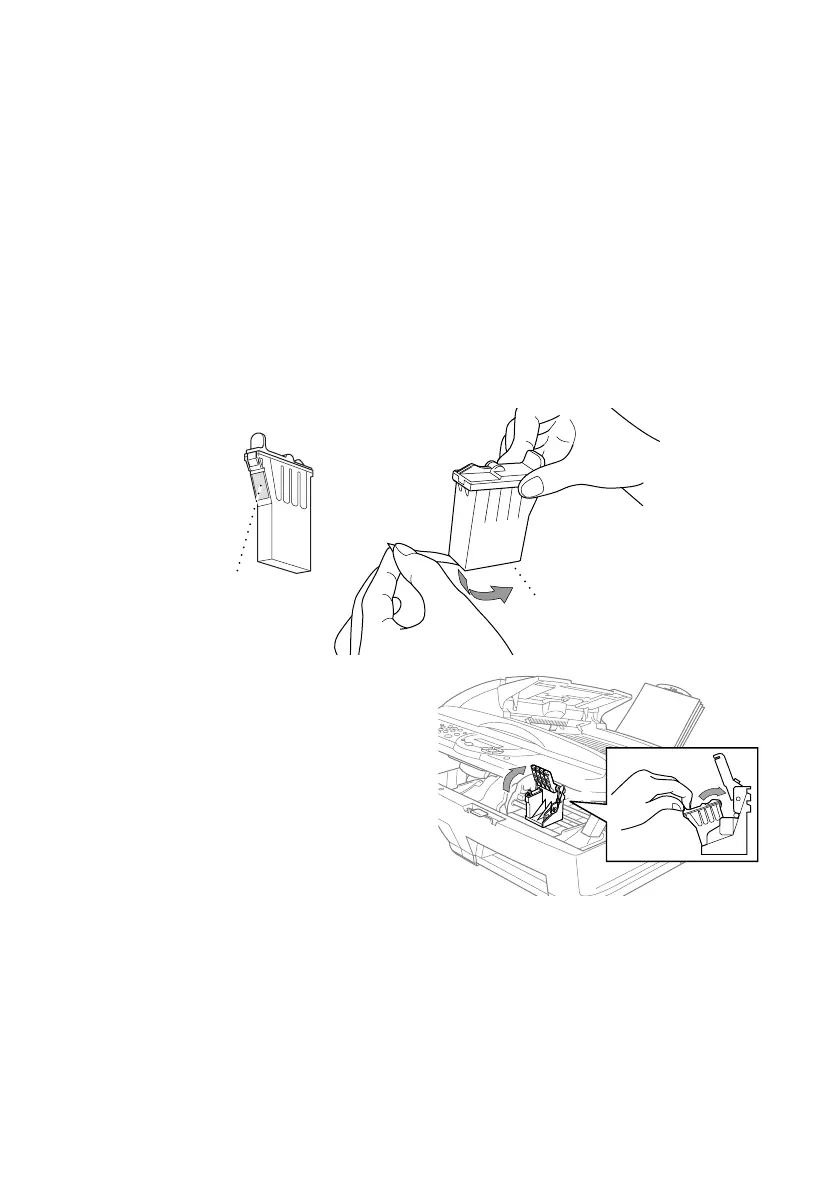

Open the Black ink cartridge bag and take out the ink cartridge.
7
Carefully remove the sealing tape from the bottom of the ink cartridge. Be sure
to peel the tape in the direction away from you.
Important
To prevent spilling ink and staining your hands and clothing, peel the sealing
tape gently and slowly. Do not touch the ink opening on the cartridge or the
removed tape.
8
Each color has its own correct
position. Match the colors of the
ink cartridge covers. First, gently
insert the Black ink cartridge, and
then press the cover down until it
clicks.
Opening
Peel in the direction
away from you!
Don't touch
this part
To Next Page
