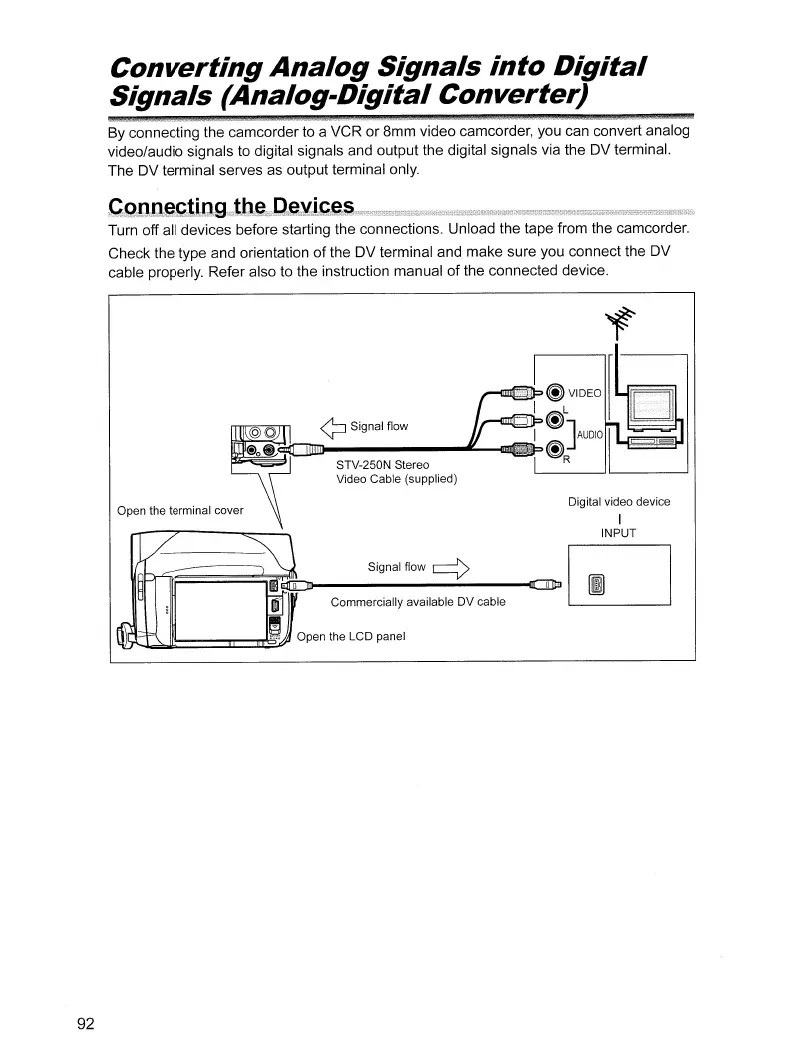

Converting
Analog
Signals
into
Digital
Signals (Analog-Digital Converter)
By connecting the camcorder to a VCR
or
8mm video camcorder, you can convert analog
video/audio signals to digital signals and output the digital signals via the DV terminal.
The DV terminal serves as output terminal only.
Turn off all devices before starting the connections. Unload the tape from the camcorder.
Check the type and orientation
of
the DV terminal and make sure you connect the DV
cable properly. Refer also to the instruction manual
of
the connected device.
Digital video device
I
INPUT
Signal flow
9
[i]
~----~0Jt3
I
Commercially available DV cable
STV-250N Stereo
Video Cable (supplied)
N~.a:t:====::JII:=:n:~'()J
Open the LCD panel
Open the terminal cover
92
To Next Page
