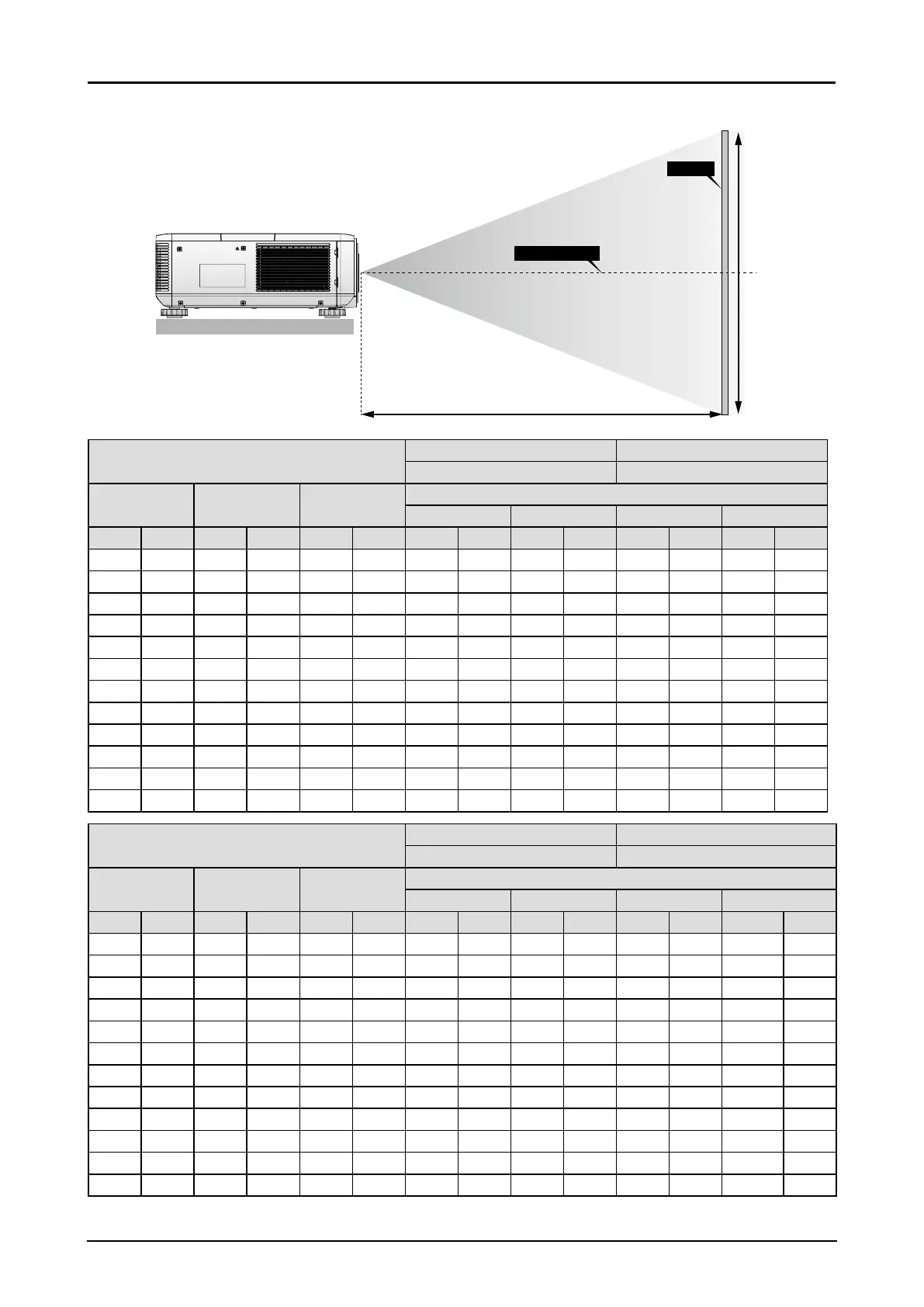

Projection Dimension
Projection Distance (B)
Projector Bottom
Height (A)
Lens Center
Screen
Screen Size LX-IL01UW LX-IL02WZ
Ultra wide zoom lens Wide zoom lens
Diagonal Width Height (A) Distance (B)
Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 24.5 0.62 31.1 0.79 41.4 1.05 59.9 1.52
50 1.27 42 1.08 26 0.67 31.1 0.79 39.2 1 52.3 1.33 75.4 1.92
60 1.52 51 1.29 32 0.81 37.6 0.96 47.4 1.2 63.1 1.6 90.9 2.31
80 2.03 68 1.72 42 1.08 50.8 1.29 63.8 1.62 84.9 2.16 121.8 3.09
100 2.54 85 2.15 53 1.35 63.9 1.62 80.2 2.04 106.6 2.71 152.7 3.88
120 3.05 102 2.58 64 1.62 77.1 1.96 96.6 2.45 128.4 3.26 183.6 4.66
150 3.81 127 3.23 79 2.02 96.8 2.46 121.1 3.08 161 4.09 230 5.84
180 4.57 153 3.88 95 2.42 116.5 2.96 145.7 3.7 193.6 4.92 276.4 7.02
200 5.08 170 4.31 106 2.69 129.7 3.29 162.1 4.12 215.3 5.47 307.3 7.81
300 7.62 254 6.46 159 4.04 195.4 4.96 244 6.2 324 8.23 461.9 11.73
400 10.16 339 8.62 212 5.38 261.2 6.63 325.9 8.28 432.7 10.99 616.6 15.66
500 12.7 424 10.77 265 6.73 326.9 8.3 407.7 10.36 541.5 13.75 771.2 19.59
Screen Size LX-IL03ST LX-IL04MZ
Standard zoom lens Middle zoom lens
Diagonal Width Height (A) Distance (B)
Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 57.2 1.45 75.8 1.93 73.6 1.87 124.1 3.15
50 1.27 42 1.08 26 0.67 72.1 1.83 95.5 2.42 92.9 2.36 155.9 3.96
60 1.52 51 1.29 32 0.81 87.1 2.21 115.1 2.92 112.1 2.85 187.8 4.77
80 2.03 68 1.72 42 1.08 117 2.97 154.3 3.92 150.5 3.82 251.4 6.39
100 2.54 85 2.15 53 1.35 147 3.73 193.5 4.92 188.9 4.8 315 8
120 3.05 102 2.58 64 1.62 176.9 4.49 232.8 5.91 227.6 5.78 378.6 9.62
150 3.81 127 3.23 79 2.02 221.8 5.63 291.6 7.41 285 7.24 474.1 12.04
180 4.57 153 3.88 95 2.42 266.7 6.77 350.5 8.9 342.6 8.7 569.5 14.47
200 5.08 170 4.31 106 2.69 296.6 7.53 389.7 9.9 381 9.68 633.1 16.08
300 7.62 254 6.46 159 4.04 446.3 11.34 585.9 14.9 573.2 14.56 951.2 24.16
400 10.16 339 8.62 212 5.38 595.9 15.14 782.3 19.87 765.3 19.44 1269.7 32.25
500 12.7 424 10.77 265 6.73 745.6 18.94 978.3 24.85 957.4 24.32 1587.8 40.33
** The table indicates projection range, optical performance is only guaranteed from 50 to 300 inches.
