Applying Power and Verifying the Installation
▀ Applying Power to the Chassis
▄ ASR 5000 Installation Guide
After the system successfully boots and the initial configuration is applied, the system is ready to be configured or offer
services.
Applying Power to the Chassis
Once you have properly connected all power and ground cables to the chassis according to the instructions in “Cabling
the Power Filter Units”, follow the instructions below to apply power to the system.
Step 1 Connect a terminal to the Console port of the primary SPIO.
Step 2 Ensure that the circuit breakers on the system’s Power Filter Units (PFUs) are in the OFF position.
Step 3 Turn the power source on.
Step 4 Check the voltage level and polarity at the terminals for each PFU. Place the positive probe of a voltage meter on the -
VDC terminal and the common probe of the meter on the RTN terminal. The meter should display a voltage
approximately equal to that of power source.
Step 5 Power on the system PFUs.

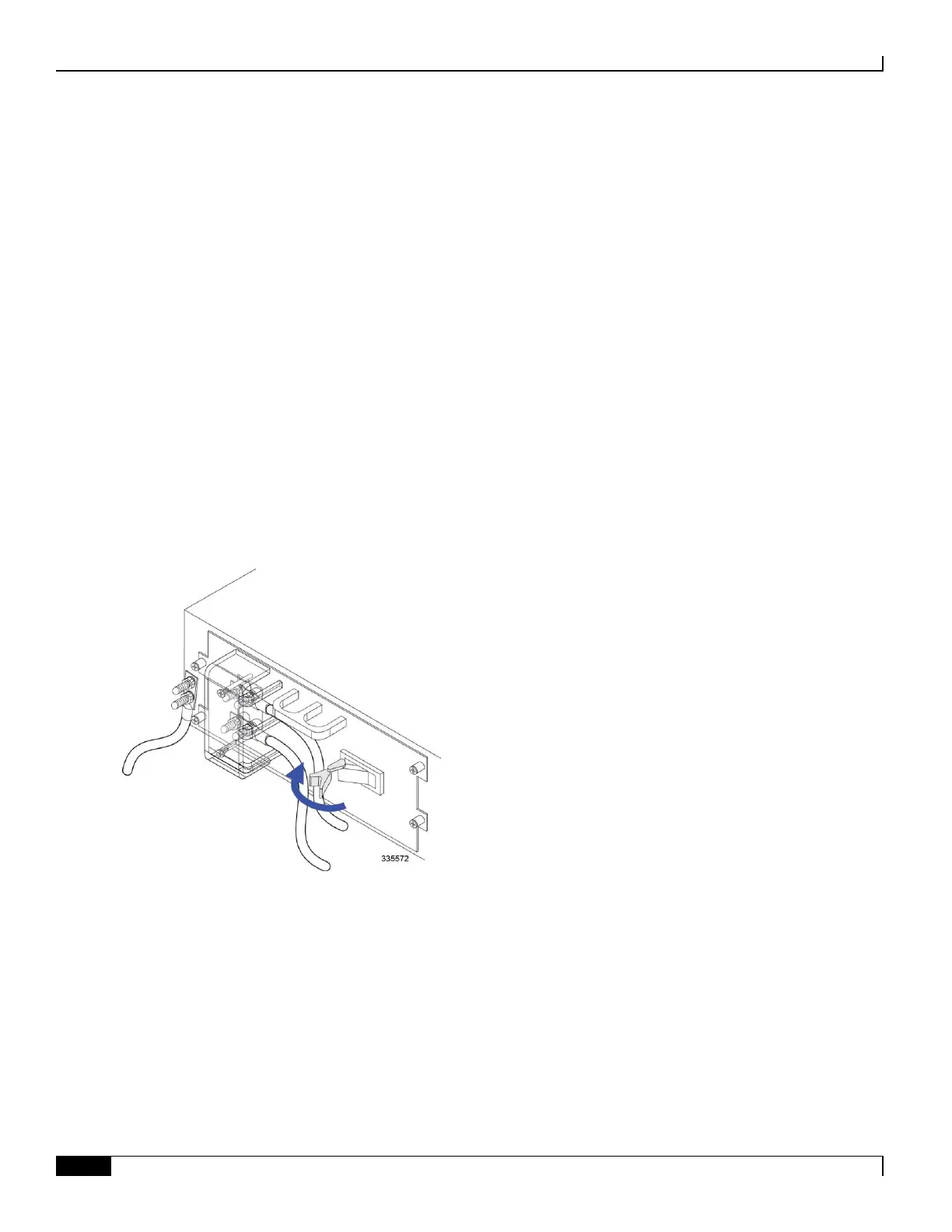

Step a Optional. If the circuit breaker on your PFU is equipped with a locking clip, move the clip to the
left unlocking the circuit breaker’s actuator.
Step b Flip the circuit breaker on the PFU to the ON position.
