Installing the Chassis â–€
ASR 5000 Installation Guide â–„
Mid-Mount Installation of the Chassis
Follow the instructions below to perform the mid-mount installation of the system.

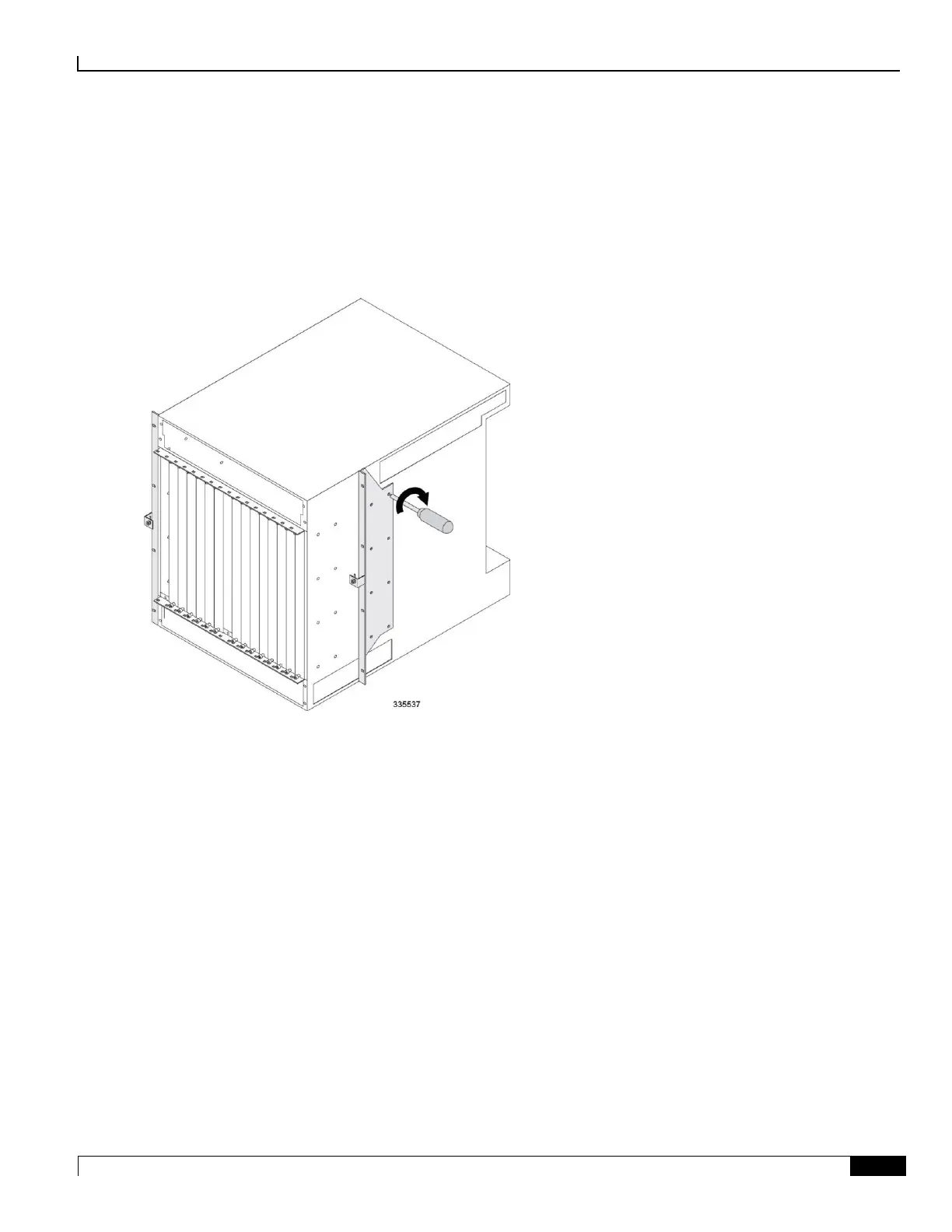

Step 1 On the side of the chassis, unfasten the eight Phillips #2 screws that secure the mounting bracket to the chassis.
Step 2 Place the mounting bracket over the middle set of mounting holes on the side of the chassis and secure it to the chassis
with the screws you removed in step 1.
Step 3 Repeat step 1 and step 2 for the bracket on the opposite side of the chassis.
Step 4 Position the chassis in the equipment rack so that the flanges of the mounting brackets are flush with the mounting rails
of the equipment rack.
