Switch(config-ext-nacl)# exit
Next, create VLAN access map map2 so that traffic that matches the http access list is dropped and all other
IP traffic is forwarded.
Switch(config)# vlan access-map map2 10
Switch(config-access-map)# match ip address http
Switch(config-access-map)# action drop
Switch(config-access-map)# exit
Switch(config)# ip access-list extended match_all
Switch(config-ext-nacl)# permit ip any any
Switch(config-ext-nacl)# exit
Switch(config)# vlan access-map map2 20
Switch(config-access-map)# match ip address match_all
Switch(config-access-map)# action forward
Then, apply VLAN access map map2 to VLAN 1.
Switch(config)# vlan filter map2 vlan 1
Example: Restricting Access to a Server on Another VLAN
You can restrict access to a server on another VLAN. For example, server 10.1.1.100 in VLAN 10 needs to
have access denied to these hosts:
•
Hosts in subnet 10.1.2.0/8 in VLAN 20 should not have access.
•
Hosts 10.1.1.4 and 10.1.1.8 in VLAN 10 should not have access.

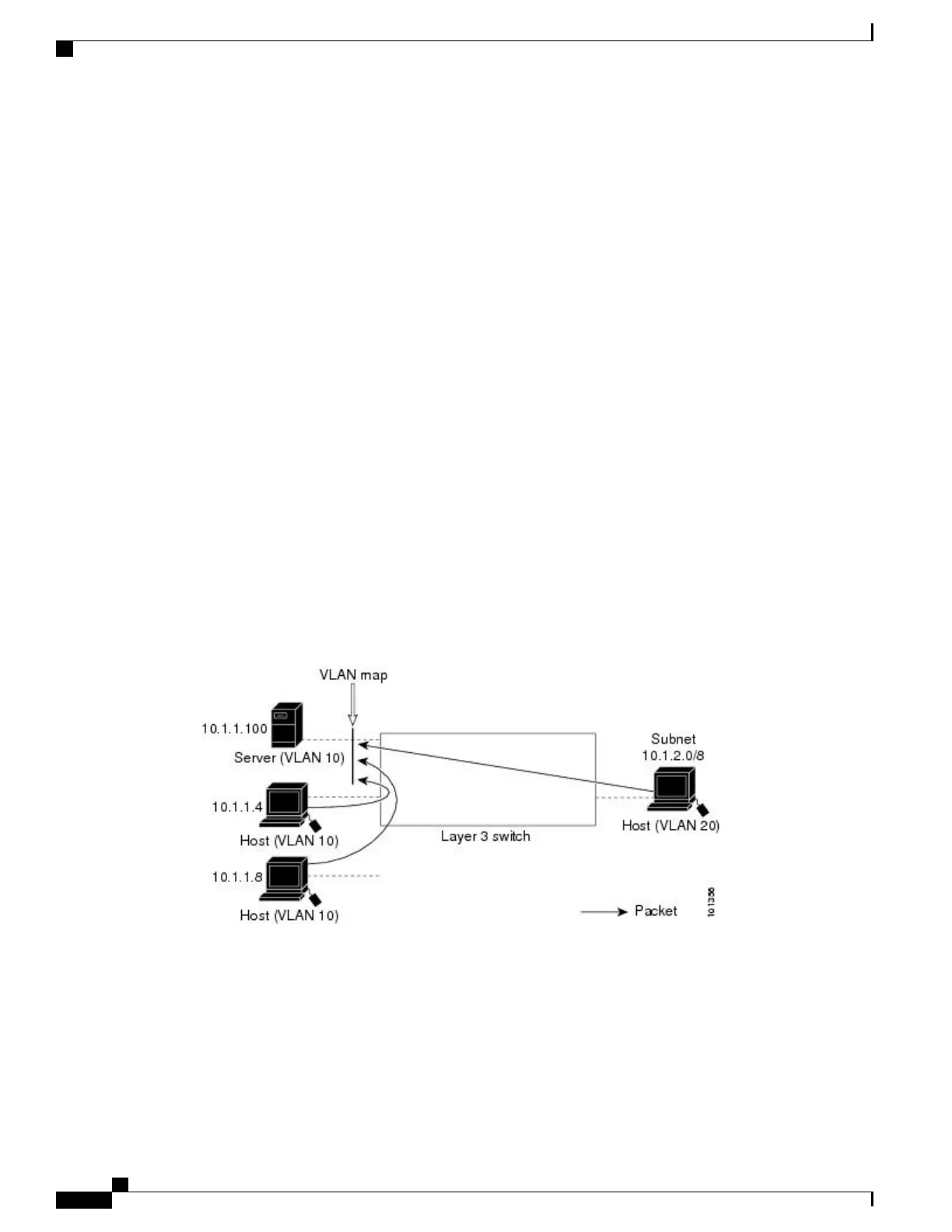

Figure 8: Restricting Access to a Server on Another VLAN
Example: Denying Access to a Server on Another VLAN
This example shows how to deny access to a server on another VLAN by creating the VLAN map SERVER
1 that denies access to hosts in subnet 10.1.2.0.8, host 10.1.1.4, and host 10.1.1.8 and permits other IP traffic.
The final step is to apply the map SERVER1 to VLAN 10.
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
190 OL-29048-01
Configuring IPv4 ACLs
Configuration Examples for Using VLAN Maps in Your Network

Cisco Catalyst 2960-X Specifications

General

Console port	RJ-45
USB 2.0 ports quantity	2
SFP module slots quantity	4
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power source	AC
Input current	5 A
AC input voltage	100 - 240 V
Power consumption (typical)	60.9 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Switching protocols	UDP, TCP, RADIUS/TACACS+
Number of VLANs	1023
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput	107.1 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
Number of static routes	1000
DHCP features	DHCP server
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules	3
Switch type	Managed
Switch layer	L2/L3
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product color	Black
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Memory type	DRAM
Noise level	39 dB
Flash memory	128 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276870 h

Weight and Dimensions

Depth	368 mm
Width	445 mm
Height	45 mm
Weight	5800 g
