Cisco Catalyst 2960-X User Manual

You can substitute your HTML pages for the default internal HTML pages. You can also specify a URL to
which users are redirected after authentication occurs, which replaces the internal Success page.

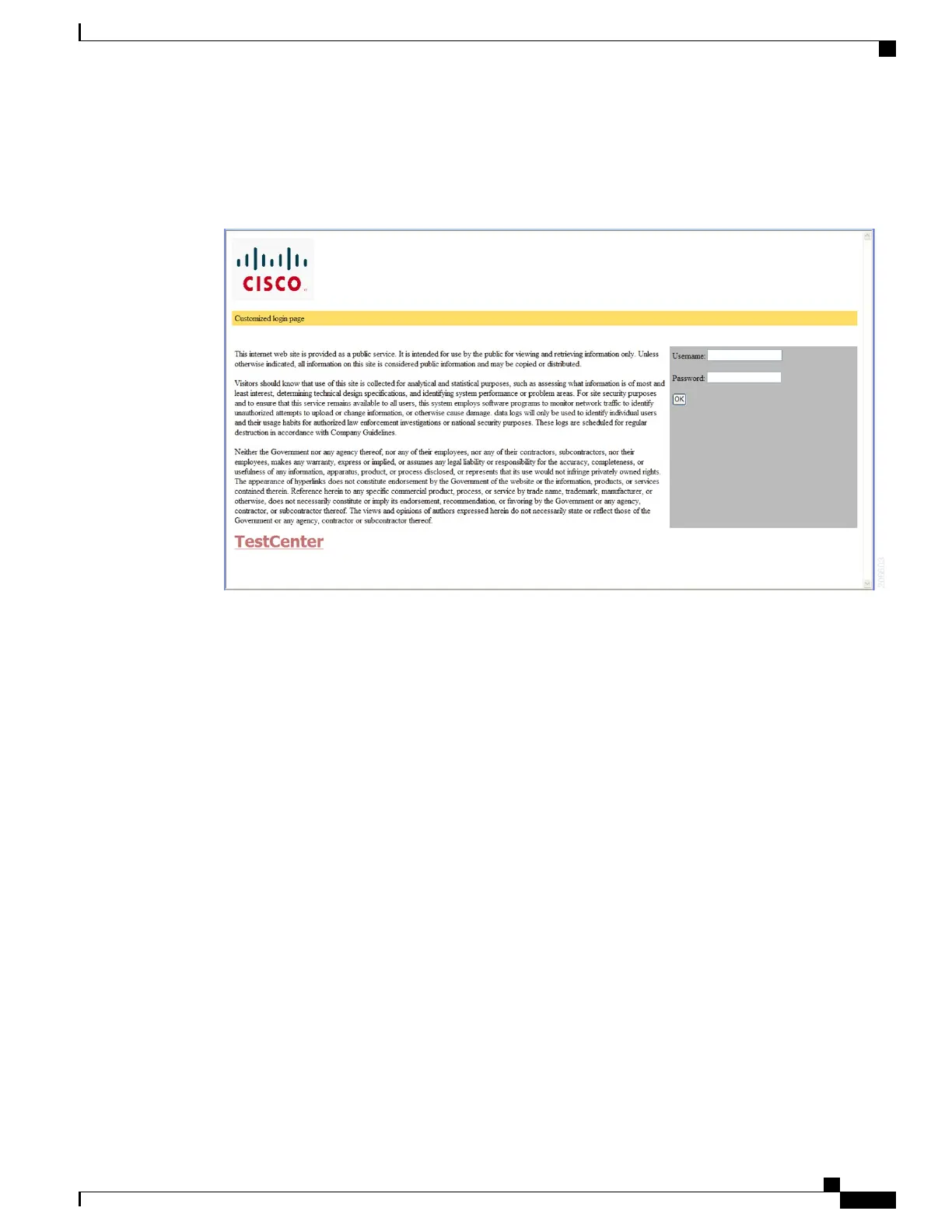

Figure 27: Customizable Authentication Page
Authentication Proxy Web Page Guidelines
When configuring customized authentication proxy web pages, follow these guidelines:
•
To enable the custom web pages feature, specify all four custom HTML files. If you specify fewer than
four files, the internal default HTML pages are used.
•
The four custom HTML files must be present on the flash memory of the switch. The maximum size of
each HTML file is 8 KB.
•
Any images on the custom pages must be on an accessible HTTP server. Configure an intercept ACL
within the admission rule.
•
Any external link from a custom page requires configuration of an intercept ACL within the admission
rule.
•
To access a valid DNS server, any name resolution required for external links or images requires
configuration of an intercept ACL within the admission rule.
•
If the custom web pages feature is enabled, a configured auth-proxy-banner is not used.
•
If the custom web pages feature is enabled, the redirection URL for successful login feature is not
available.
•
To remove the specification of a custom file, use the no form of the command.
Because the custom login page is a public web form, consider these guidelines for the page:
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
OL-29048-01 367
Configuring Web-Based Authentication
Web Authentication Customizable Web Pages

Cisco Catalyst 2960-X Specifications

General

Console port	RJ-45
USB 2.0 ports quantity	2
SFP module slots quantity	4
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power source	AC
Input current	5 A
AC input voltage	100 - 240 V
Power consumption (typical)	60.9 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Switching protocols	UDP, TCP, RADIUS/TACACS+
Number of VLANs	1023
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput	107.1 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
Number of static routes	1000
DHCP features	DHCP server
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules	3
Switch type	Managed
Switch layer	L2/L3
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product color	Black
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Memory type	DRAM
Noise level	39 dB
Flash memory	128 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276870 h

Weight and Dimensions

Depth	368 mm
Width	445 mm
Height	45 mm
Weight	5800 g
