Traffic Patterns
This example shows broadcast traffic patterns on an interface over a given period of time.

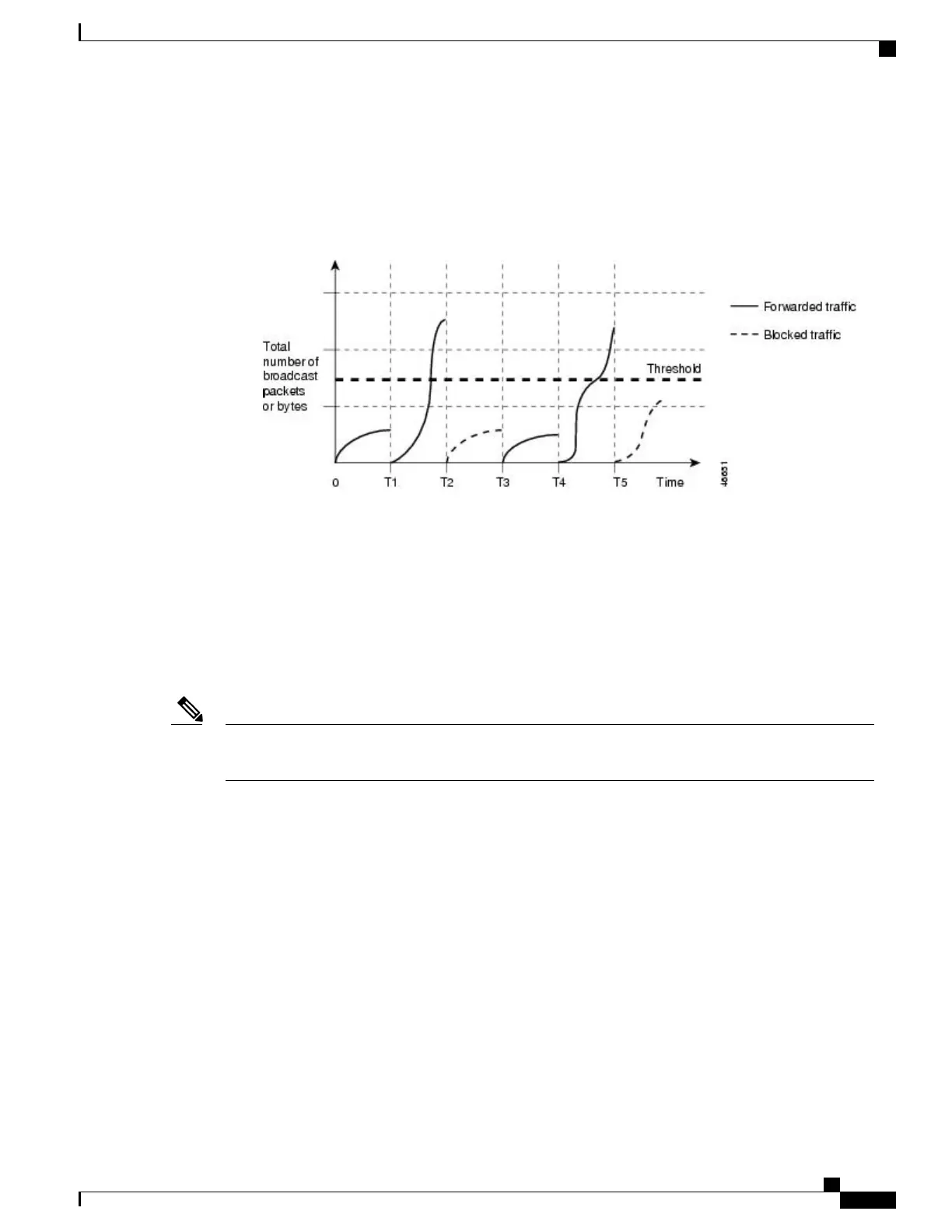

Figure 29: Broadcast Storm Control Example
Broadcast traffic being forwarded exceeded the configured threshold between time intervals T1 and T2 and
between T4 and T5. When the amount of specified traffic exceeds the threshold, all traffic of that kind is
dropped for the next time period. Therefore, broadcast traffic is blocked during the intervals following T2
and T5. At the next time interval (for example, T3), if broadcast traffic does not exceed the threshold, it is
again forwarded.
The combination of the storm-control suppression level and the 1-second time interval controls the way the
storm control algorithm works. A higher threshold allows more packets to pass through. A threshold value
of 100 percent means that no limit is placed on the traffic. A value of 0.0 means that all broadcast, multicast,
or unicast traffic on that port is blocked.
Because packets do not arrive at uniform intervals, the 1-second time interval during which traffic activity
is measured can affect the behavior of storm control.
Note
You use the storm-control interface configuration commands to set the threshold value for each traffic type.
How to Configure Storm Control
Configuring Storm Control and Threshold Levels
You configure storm control on a port and enter the threshold level that you want to be used for a particular
type of traffic.
However, because of hardware limitations and the way in which packets of different sizes are counted, threshold
percentages are approximations. Depending on the sizes of the packets making up the incoming traffic, the
actual enforced threshold might differ from the configured level by several percentage points.
Catalyst 2960-X Switch Security Configuration Guide, Cisco IOS Release 15.0(2)EX
OL-29048-01 419
Configuring Port-Based Traffic Control
How to Configure Storm Control

Cisco Catalyst 2960-X Specifications

General

Console port	RJ-45
USB 2.0 ports quantity	2
SFP module slots quantity	4
Installed SFP modules quantity	-
Gigabit Ethernet (copper) ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power source	AC
Input current	5 A
AC input voltage	100 - 240 V
Power consumption (typical)	60.9 W
Number of power supply units	1
Redundant power supply (RPS) support	Yes
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Switching protocols	UDP, TCP, RADIUS/TACACS+
Number of VLANs	1023
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Throughput	107.1 Mpps
Jumbo frames	9216
Number of queues	8
MAC address table	16000 entries
Number of static routes	1000
DHCP features	DHCP server
Authentication	MAC-based authentication, Port-based authentication
Security algorithms	802.1x RADIUS, SNMP, SSH
Access Control List (ACL) rules	3
Switch type	Managed
Switch layer	L2/L3
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product color	Black
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	12
Memory type	DRAM
Noise level	39 dB
Flash memory	128 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276870 h

Weight and Dimensions

Depth	368 mm
Width	445 mm
Height	45 mm
Weight	5800 g
