34-28
Catalyst 3550 Multilayer Switch Software Configuration Guide
78-11194-09
Chapter 34 Configuring IP Multicast Routing
Configuring Advanced PIM Features
Troubleshooting PIMv1 and PIMv2 Interoperability Problems
When debugging interoperability problems between PIMv1 and PIMv2, check these in the order shown:
1. Verify RP mapping with the show ip pim rp-hash privileged EXEC command, making sure that all
systems agree on the same RP for the same group.
2. Verify interoperability between different versions of DRs and RPs. Make sure the RPs are
interacting with the DRs properly (by responding with register-stops and forwarding decapsulated
data packets from registers).
Configuring Advanced PIM Features
These sections describe the optional advanced PIM features:
• Understanding PIM Shared Tree and Source Tree, page 34-28
• Delaying the Use of PIM Shortest-Path Tree, page 34-29
• Modifying the PIM Router-Query Message Interval, page 34-30
Understanding PIM Shared Tree and Source Tree
By default, members of a group receive data from senders to the group across a single data-distribution
tree rooted at the RP. Figure 34-9 shows this type of shared-distribution tree. Data from senders is
delivered to the RP for distribution to group members joined to the shared tree.

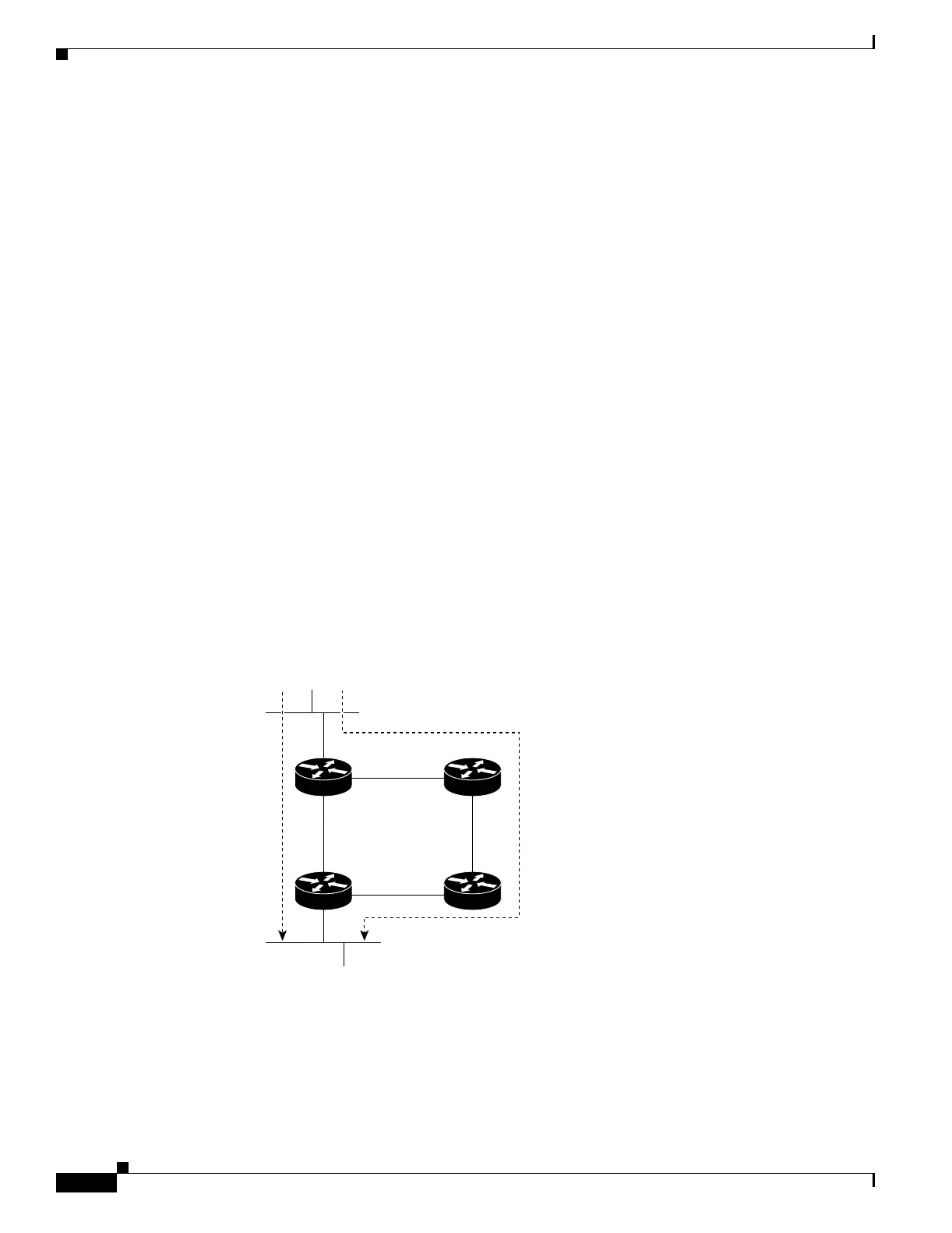

Figure 34-9 Shared Tree and Source Tree (Shortest-Path Tree)
If the data rate warrants, leaf routers (routers without any downstream connections) on the shared tree
can use the data distribution tree rooted at the source. This type of distribution tree is called a
shortest-path tree or source tree. By default, the Cisco IOS software switches to a source tree upon
receiving the first data packet from a source.
Router A
Source
Receiver
Router C
RP
Router B
Shared tree
from RP
Source tree
(shortest
path tree)
44967
