L Brackets on the Chassis
The switch chassis is shipped with two L brackets installed on the front sides of the chassis. The L brackets
are secured to the chassis with ten M3 Phillips-head screws (five on each side).

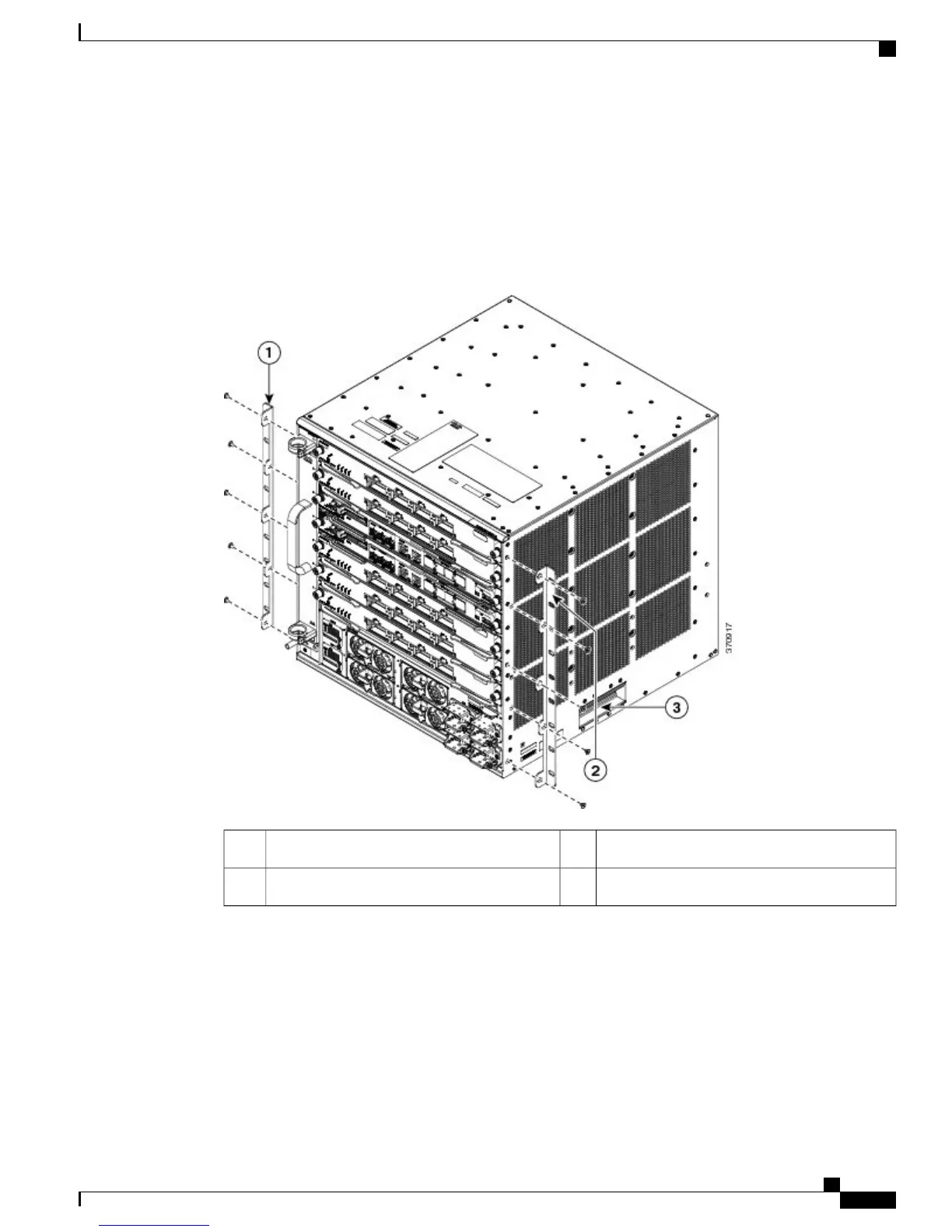

Figure 7: L Brackets on the Chassis
Handhold3Right L bracket.1
Left L bracket.2
The L brackets should be installed in this position whether you perform a front rack-mount or a rear rack-mount.
Installing the Rack-Mount Shelf Kit
The rack-mount shelf kit is part of the accessory kit. Install this kit before you install the chassis in the rack.
The shelf brackets attach directly to the rack and help support the weight of the chassis while you secure the
L brackets to the rack enclosure.
Cisco Catalyst 6807-XL Switch Hardware Installation Guide
OL-30656-01 33
Installing the Switch
L Brackets on the Chassis
