Cisco Catalyst 6807-XL User Manual

More InformationSupported on These
Modules
DescriptionWDM
Transceiver
Type
Cisco 10GBASE DWDM X2
Modules
•
WS-X6816-10G
•
WS-X6816-10G XL
•
WS-X6908-10
•
WS-X6908-10 XL
•
VS-S2T-10G
•
VS-S2T-10G XL
The Cisco DWDM X2
transceiver is a hot-swappable
I/O module that you can plug
into an Ethernet X2 port of the
switch, to link the port with the
network. The module supports
32 nontunable ITU 100-GHz
wavelengths compatible with the
Cisco ONS DWDM channel
plan. The Cisco DWDM X2
supports digital optical
monitoring capability.
DWDM
X2
13
CVR-X2-SFP10G —Converter for X2 ports.
14
CVR-CFP-4SFP10G.
To determine if a specific WDM transceiver is compatible with the supported modules, see the Cisco
Gigabit Ethernet Transceiver Modules Compatibility Matrix document that is available on Cisco.com.
Note
Module Connectors
This section provides brief descriptions of the module connectors that the switch supports.
Related Topics
Installing Transceivers and Module Connectors, on page 47
Modules, on page 3
RJ-45 Connector
The RJ-45 connector is used to connect a Category 3, Category 5, Category 5e, or Category 6 foil twisted-pair
or unshielded twisted-pair cable from the external network to the module interface connector.

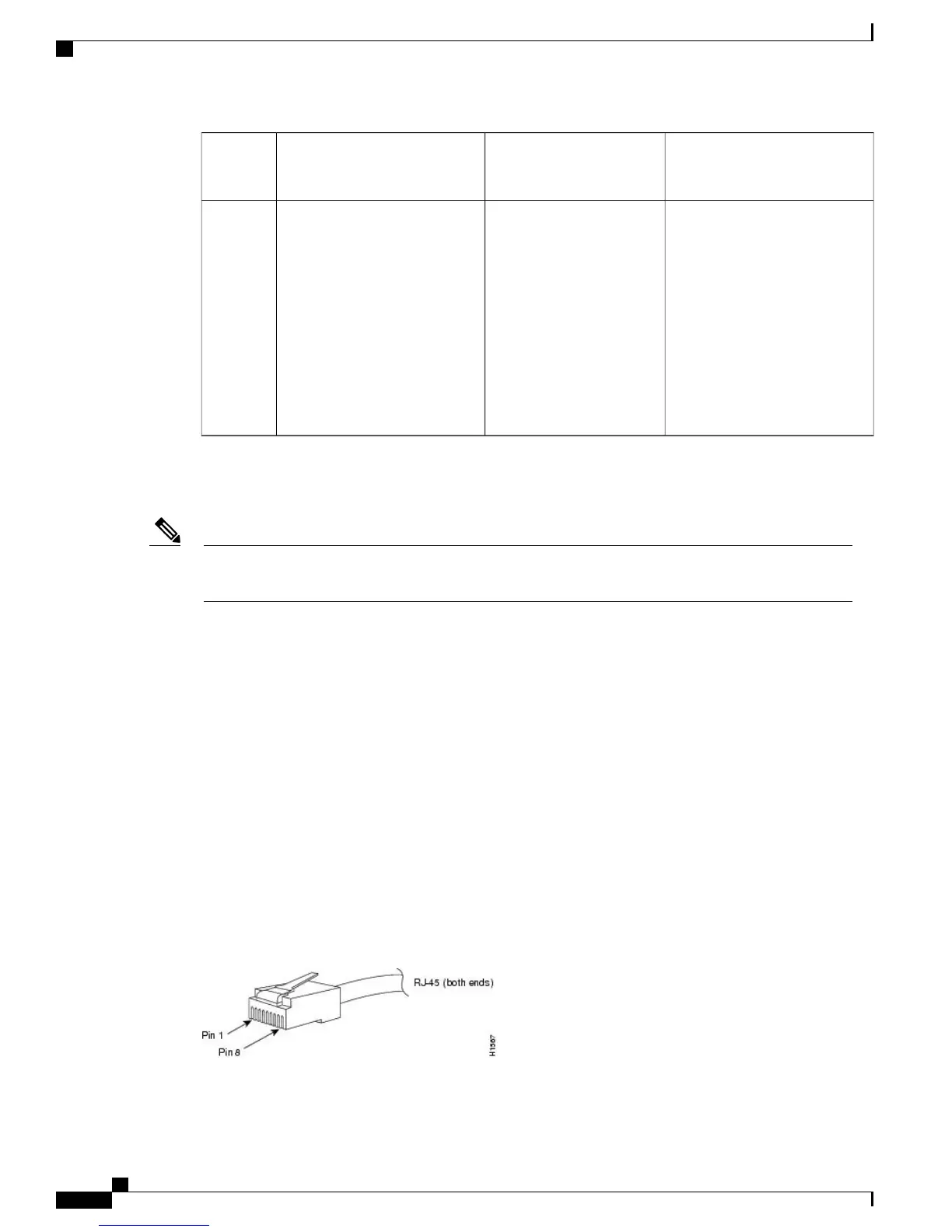

Figure 35: RJ-45 Interface Cable Connector
Cisco Catalyst 6807-XL Switch Hardware Installation Guide
84 OL-30656-01
Transceivers, Module Connectors, and Cable Specifications
Module Connectors
