LC Connector
The LC fiber optic connector is a small form-factor fiber-optic connector that provides high-density fiber
connectivity. The LC connector can be used with either MMF cable or SMF cable. The LC connector uses a
latching clip mechanism that is similar to the one used on the RJ-45 copper connector.
Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams
or view directly with optical instruments. Statement 1051
Warning
Make sure that the optical connectors are clean before making the connections. Contaminated connectors
can damage the fiber and cause data errors.
Note

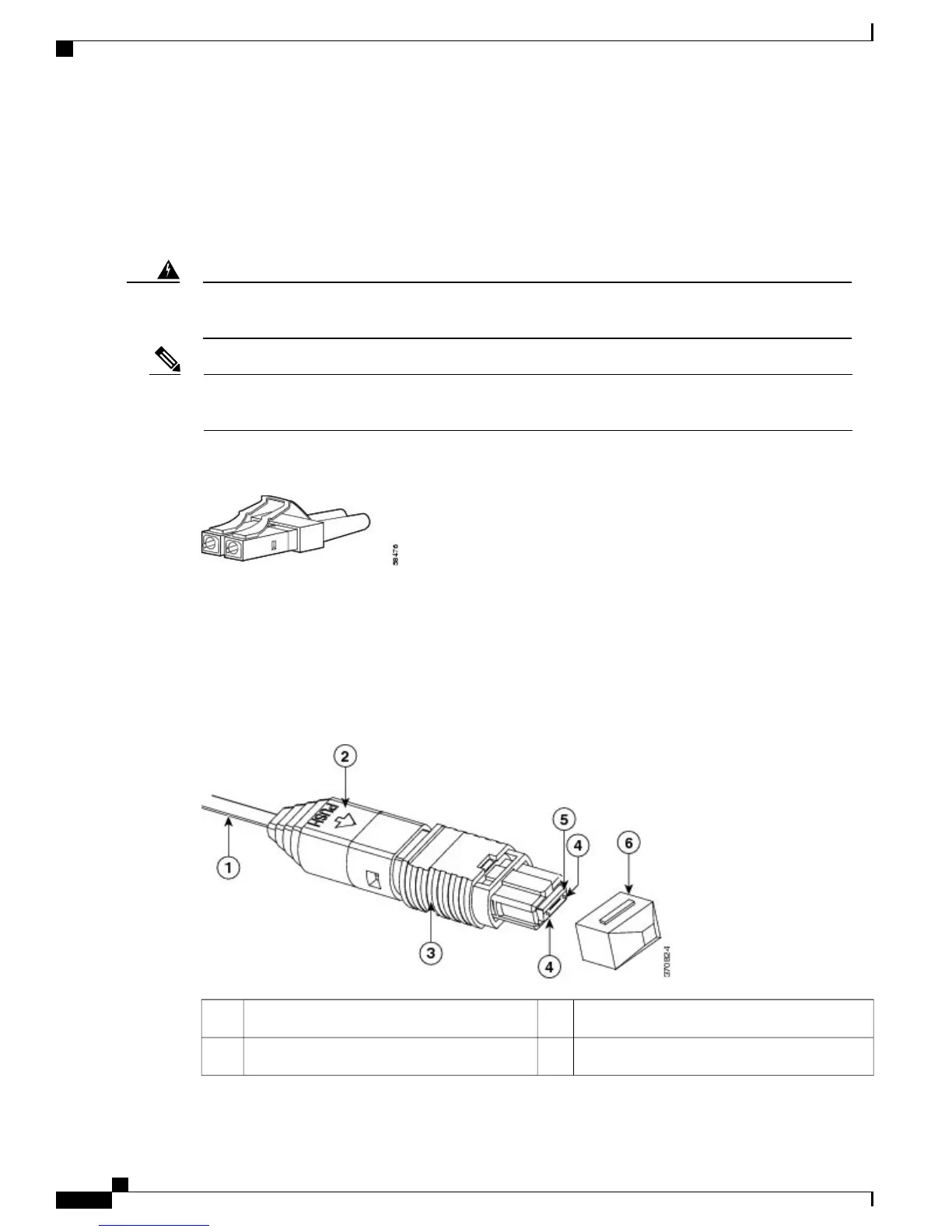

Figure 37: LC Fiber-Optic Connector
MTP-12 Connector
The MTP connector is 12-fiber optical connector with a footprint similar to the SC simplex connector. The
MTP connector conforms to the TIA/EIA-604-5 intermateability standard.
Figure 38: MTP-12 Fiber-Optic Connector
Guide pins412-fiber ribbon1
Ferrule5Boot2
Cisco Catalyst 6807-XL Switch Hardware Installation Guide
86 OL-30656-01
Transceivers, Module Connectors, and Cable Specifications
LC Connector
