• Connect the equipment end of the strap to an unfinished chassis surface.
• Place the M.2 storage devices on an anti-static surface or in a static shielding bag. If you have to return
the device to the factory, immediately place it in a static shielding bag.
• Avoid contact between the device and clothing. The wrist strap protects the device from ESD voltages
on the body only; ESD voltages on clothing can still cause damage.
• Do not remove the wrist strap until the installation is complete.
For safety, periodically check the resistance value of the anti static strap. The measurement should be
between 1 and 10 megohms (Mohms).
Caution
Remove the M.2 USB|NVMe Module
To remove a M.2 USB|NVMe module, perform these steps:
The M.2 USB|NVMe module installation for C8300 1N1S-4T2X|6T and C8300 2N2S-4T2X|6T are
different.
The M.2 USB|NVMe modules are flipped upside down.
Note
Step 1 The device should be powered down and the power supply disconnected before you perform any module replacement.
Step 2 Loosen 2 mounting screws using a #1 Philips screwdriver.
Step 3 Gently pull the M.2 USB|NVMe module out and remove it from the device.

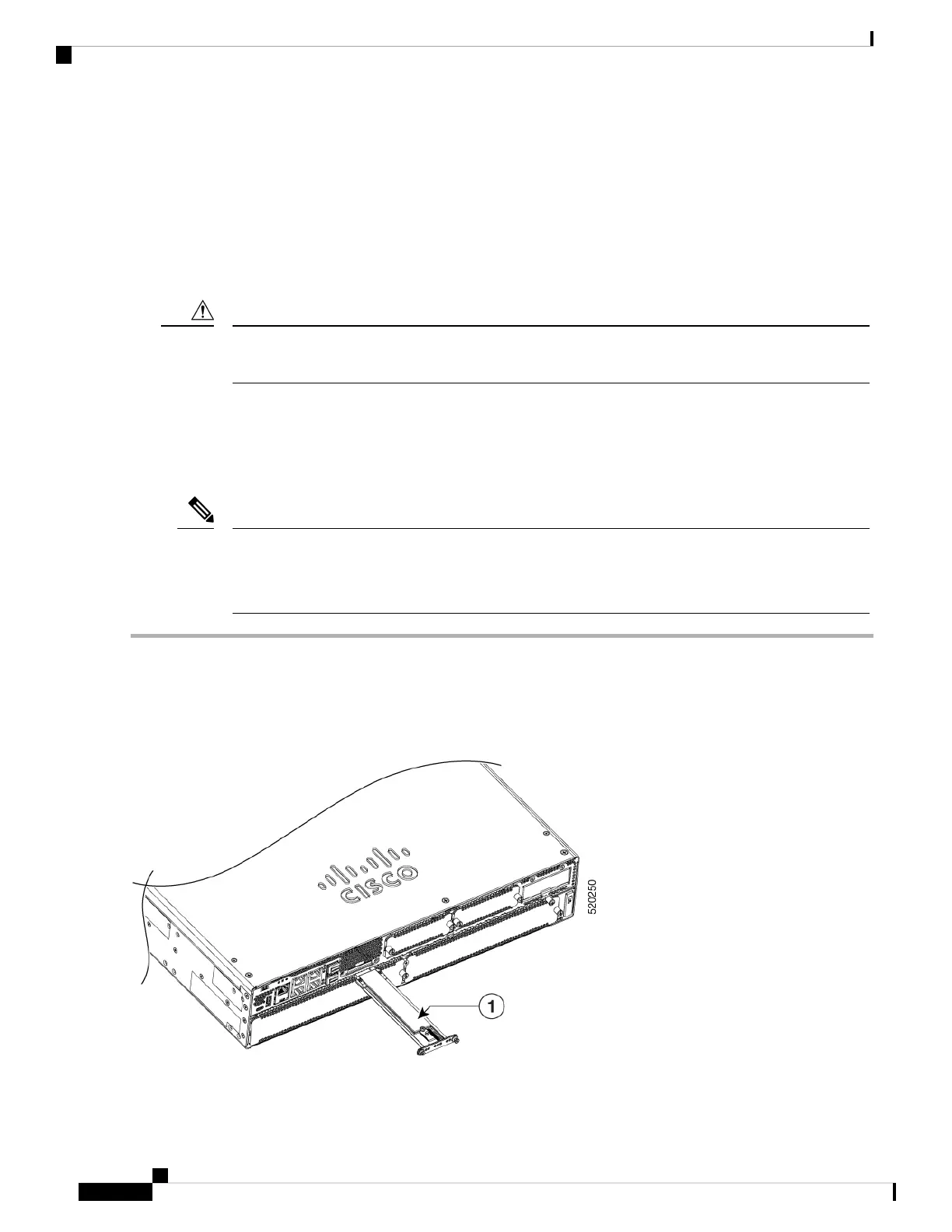

Figure 70: Remove the M.2 USB|NVMe Module (C8300-2N2S-4T2X|6T)
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
94
Install Internal Components and Field Replaceable Units
Remove the M.2 USB|NVMe Module
