Remove the Fan Tray Air Filter from a C8300-2N2S-4T2X|6T
To insert the fan tray, complete the following steps:
Step 1 Loosen the middle captive air filter screws.
Step 2 Pull the old air filter out.
Step 3 Insert the replacement fan tray and tighten the captive screws.

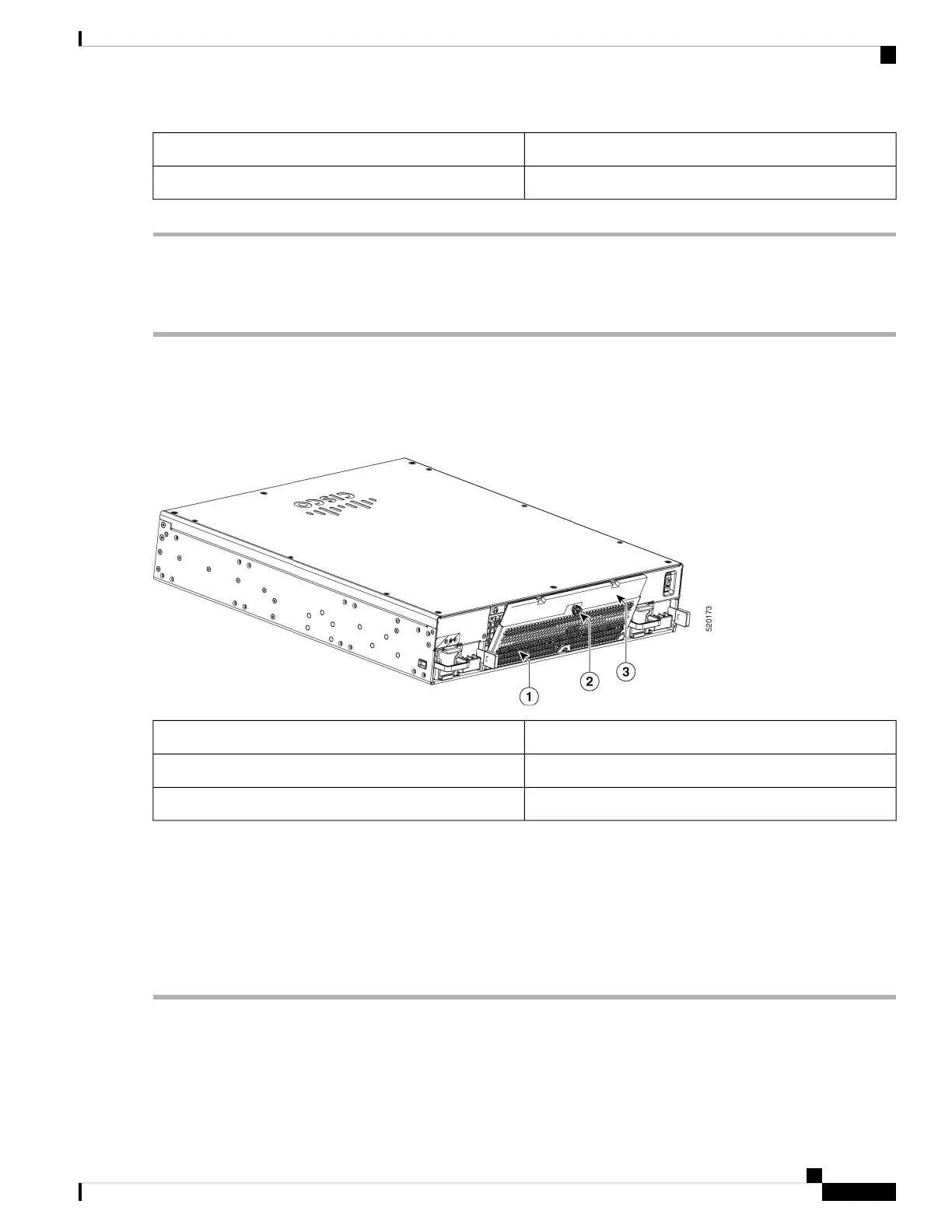

Figure 66: Reinstall the Fan Tray Air Filter (Cisco 8300-2N2S-4T2X|6T)
Air filter cover1
Captive screw for air filter2
Air filter3
• First inspection of the air filter must be performed six months after the first installation of the air filter.
• Air filters must be inspected every three months after the initial six month inspection and replaced if found
to be dirty.
• Air filters cannot be cleaned and reused. Replace with a new air filter. It is recommended to have spare
air filters in stock.
Note
Remove the Fan Tray from a C8300-1N1S-4T2X|6T
The C8300-1N1S-4T2X|6T supports forward air flow (standard version).
Hardware Installation Guide for Cisco Catalyst 8300 Series Edge Platforms
87
